Product Description

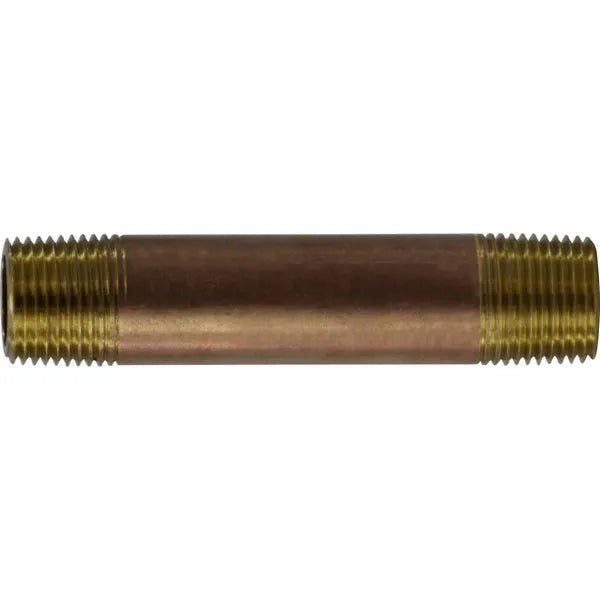

The MIDLAND INDUSTRIES 40049 seamless pipe nipple features 3/8 in MPT connections on both ends and a length of 5-1/2 inches. Constructed from lead-free red brass, this Schedule 40 nipple is suitable for use in drinking water supplies with a pH of 6.5 and above. It meets ANSI B1.20.1 and WW-N-351 standards.
- Lead Free
- Schedule 40
- Seamless Nipple
Product Highlights
This red brass nipple is ideal for plumbing applications requiring a durable and lead-free connection.
Product Information
Standard Information
-
Brand: MIDLAND INDUSTRIES
-
Manufacturer Part Number: 40049
-
Country of Origin: Unknown
Technical Specifications
-
Brand: MIDLAND INDUSTRIES
-
Connection Size 1: 3/8 in
-
Connection Size 2: 3/8 in
-
Connection Type: MPT|MPT
-
Connection Type 1: MPT
-
Connection Type 2: MPT
-
Diameter: 0.495 in ID x 0.675 in OD
-
Dimension Standards: ANSI B1.20.1, WW-N-351, MS 51846
-
Fitting Type: Nipple
-
Length: 5-1/2 in
-
Material: Brass
-
Material Construction: Lead-Free Red Brass
-
Pressure Class: 125 lb
-
Pressure Rating: 890 psi at 100 deg F
-
Schedule Rating: SCH 40
-
Temperature Rating: -20 to 400 deg F
-
Thread Size: 3/8-18
-
Shape (Orientation): Straight
-
Material(s): Lead Free Brass
-
Applicable Specs & Approvals: ASTM B43, ANSI B1.20.1, WW-N-351, ANSI/ASTM B687-96, NSF-61 Approved, MS51846 STD, RoHS Compliant, Lead Free as per the Safe Drinking Water Act
-
Special Properties: Lead Free
