MIDLAND INDUSTRIES 18065 Union 5/16 Compression

Product Description

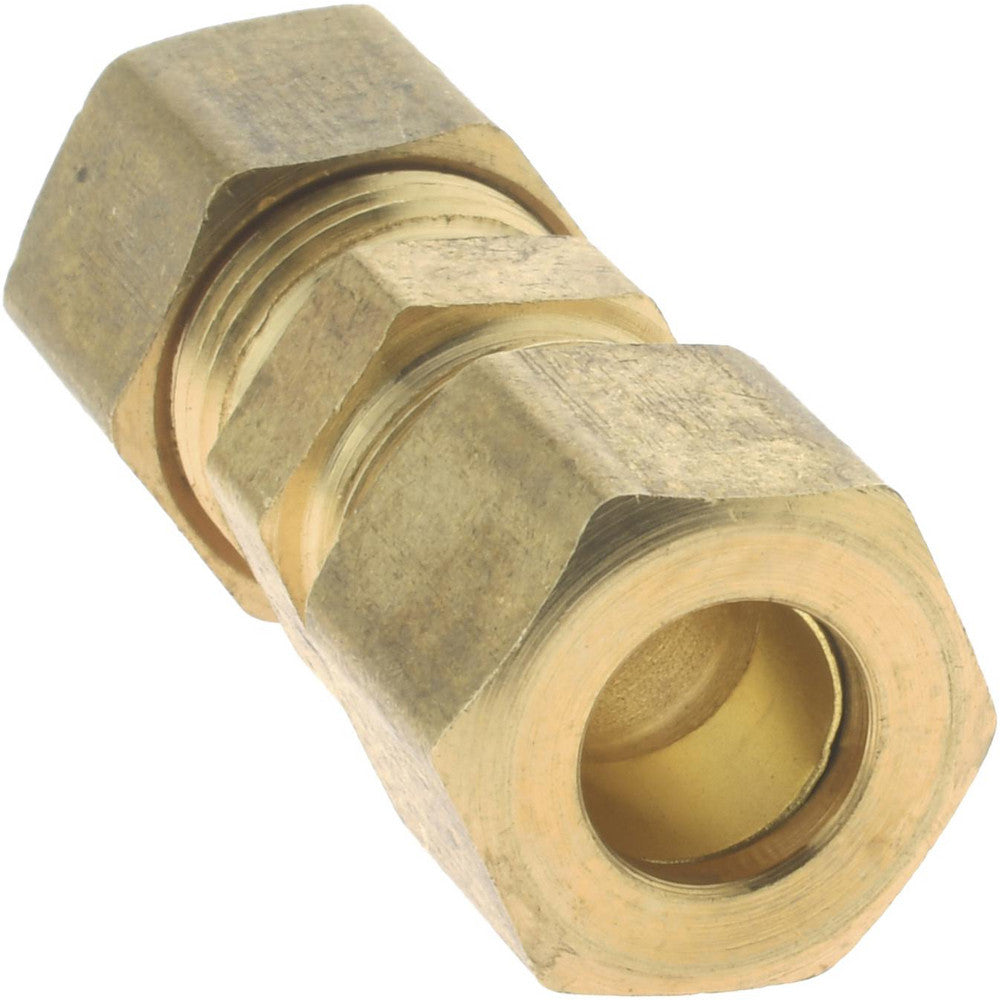

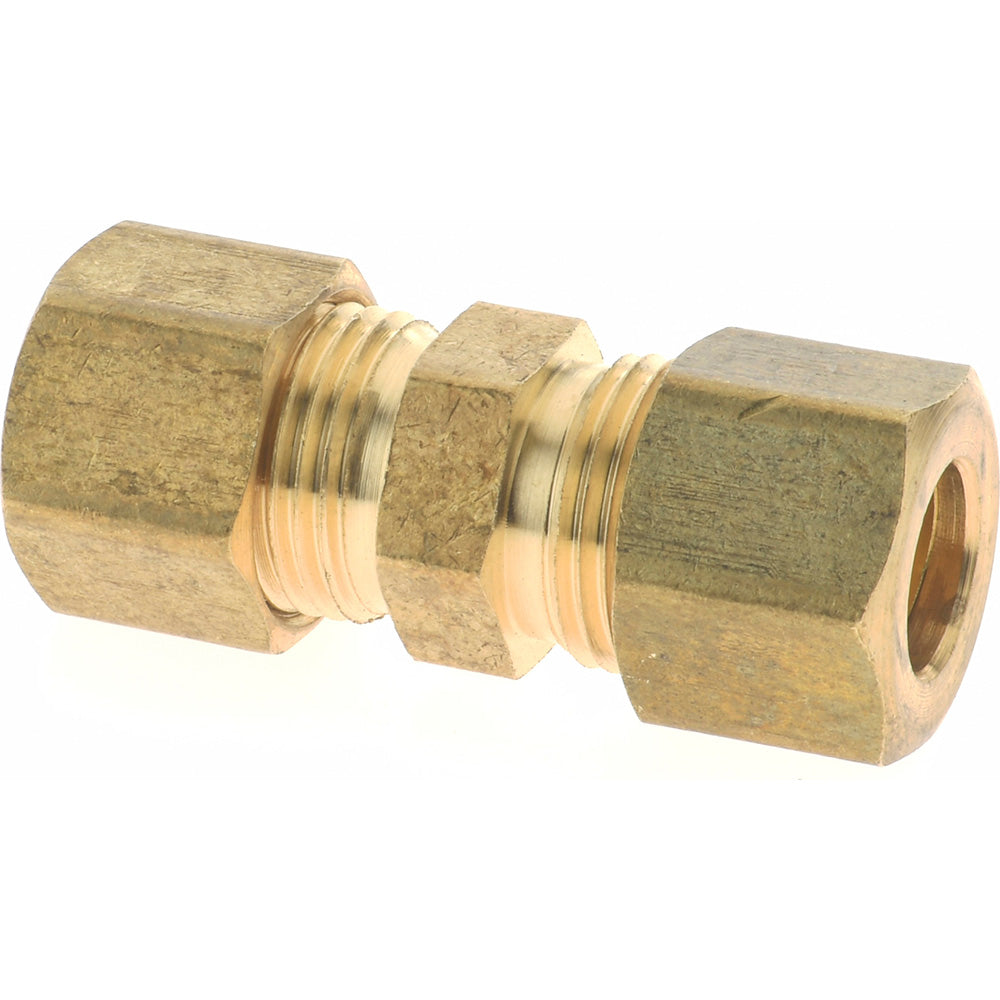

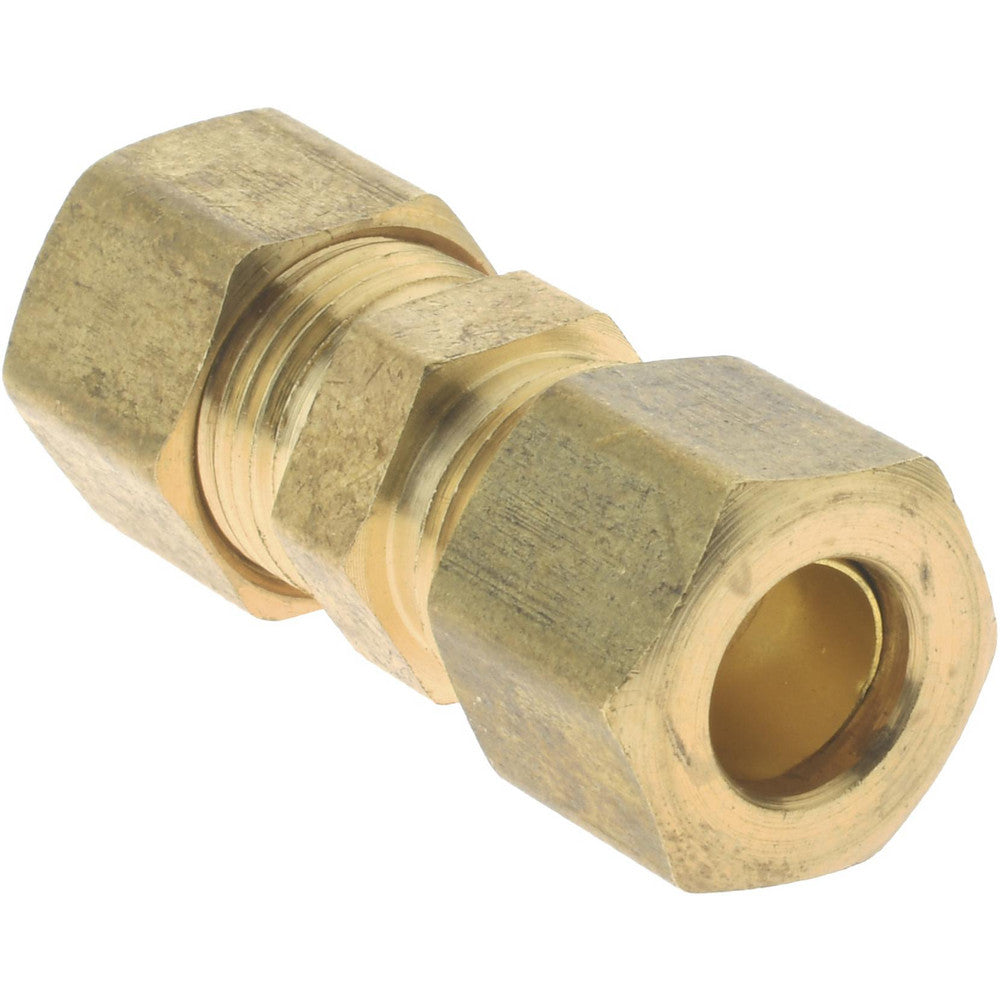

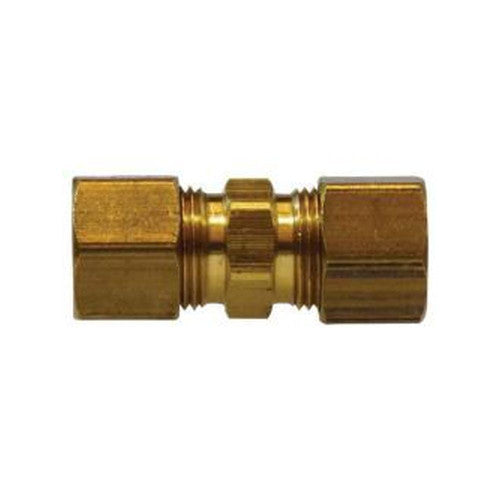

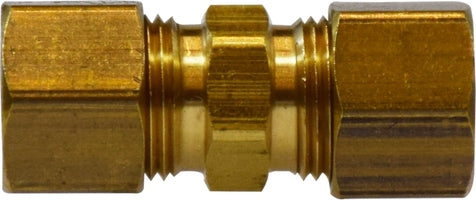

The MIDLAND INDUSTRIES 18065 is a 5/16-inch compression union fitting made from brass. This product is suitable for connecting copper, aluminum, and thermoplastic tubing under low to medium pressure. It meets SAE standards and provides fair vibration resistance, making it ideal for various applications.

• Made from durable brass material.
• Connection size: 5/16-inch compression on both ends.
• Pressure rating of 300 psi.

Product Highlights

Designed for effective tubing connections, this union fitting provides reliable service across different materials and pressure levels.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Fitting Type: Union

Technical Specifications

• Connection Size 1: 5/16 inch
• Connection Type: Compression
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 degrees Fahrenheit
• Hex Size: 1/2 inch
• Applicable Specifications: SAE Standards
• Tube Outside Diameter: 5/16 inch
• Center to Center: 0.88 inch
