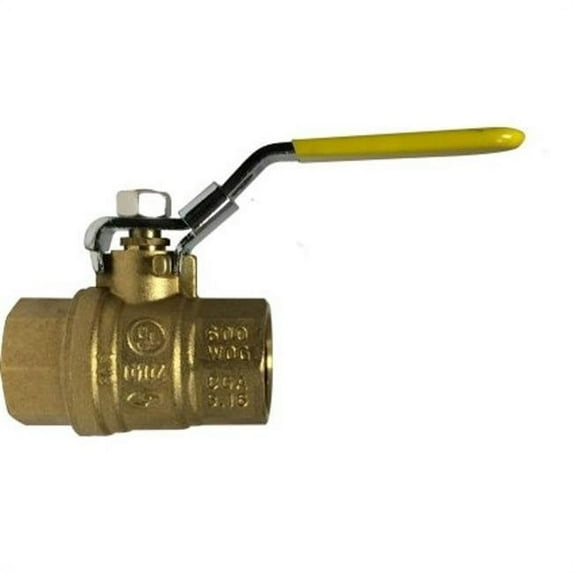

Midland 940175 Forged Brass Full-Port Ball Valve 1 in NPT

Product Description

The MIDLAND 940175 Full-Port Ball Valve features a forged brass construction and a 1 in NPT connection. Designed for a full range of liquids or gases, this ball valve ensures minimal pressure drop due to its large, full-size ports. It is suitable for applications requiring a reliable shutoff mechanism.

• Minimal pressure drop due to large full size ports
• Bottom loaded pressure retaining stem
• Fast 1/4 turn open or close operation

Product Highlights

Forged brass ball valve with 1 in NPT connection, full port design, and reliable shutoff for various liquids and gases.

Product Information

Standard Information

• Brand: MIDLAND
• Manufacturer Part Number: 940175
• Country of Origin: China

Technical Specifications

• Actuator Type: Lever
• Connection Type: NPT
• Material: Brass
• Material Construction: Forged Brass
• Nominal Size: 1 in
• Pressure Rating: 600 psi
• Product Type: Ball Valve
• Seal Material: PTFE
• Temperature Rating: -22 to 302 deg F
• Trim Material: Brass Stem and Gland, CP Brass Ball, PTFE Ball Seat
• WOG: 600
• Size: 1"
• Size A: 2.75
• Size B: 2.68
