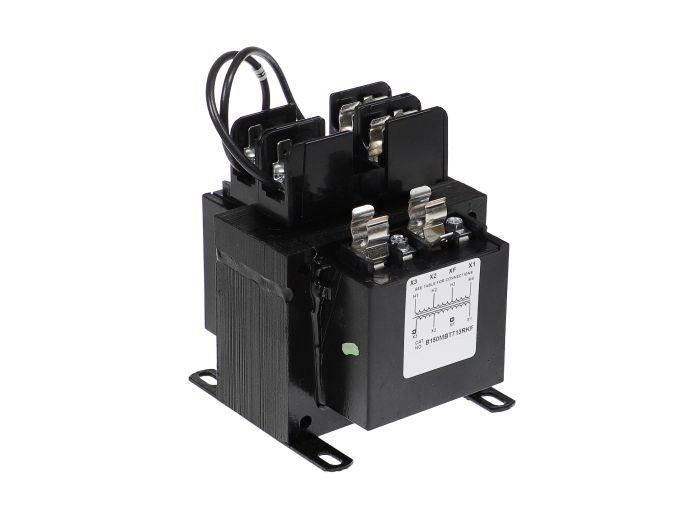

Micron Industries B350BTZ13RBF Encapsulated Control Transformer

Product Description

The Micron Industries B350BTZ13RBF is an encapsulated control transformer built for commercial and industrial use. This transformer supports various primary voltages: two hundred twenty by four hundred forty, two hundred thirty by four hundred sixty, and two hundred forty by four hundred eighty VAC. The secondary voltages it offers are one hundred ten, one hundred fifteen, and one hundred twenty VAC. It operates at a frequency of either fifty or sixty Hertz, with a power rating of three hundred fifty VA.

• Encapsulated coil for protection against environmental factors
• Integrally molded terminal blocks for sturdy connections
• Meets RoHS compliance standards

Product Highlights

This transformer is designed to provide reliable performance while ensuring safety and compliance across various applications.

Product Information

Standard Information

• Manufacturer Part Number: B350BTZ13RBF
• Brand: Micron Industries

Technical Specifications

• Series: ImperviTRAN
• Type: Control Power
• Primary Voltage: 220x440/230x460/240x480 VAC
• Secondary Voltage: 110/115/120 VAC
• Power Rating: 350 VA
• Frequency Rating: 50/60 Hz
• Terminal Type: Screw
• Insulation Class: 130
• Approvals: UL, UL (Canada and US), CUL
• Phase: Single Phase
• Weight: 12
• VA Rating: 350 VA
• Termination: Integrally Molded Terminal Blocks
• Enclosure: No
• Connection Type: Screw
• Dimensions: four and three-quarters inches high by four and a half inches wide by five and a quarter inches deep
• Maximum Amperage Rating: 3.04 A
• Temperature Rating: 40 °C
• Country of Origin: USA
