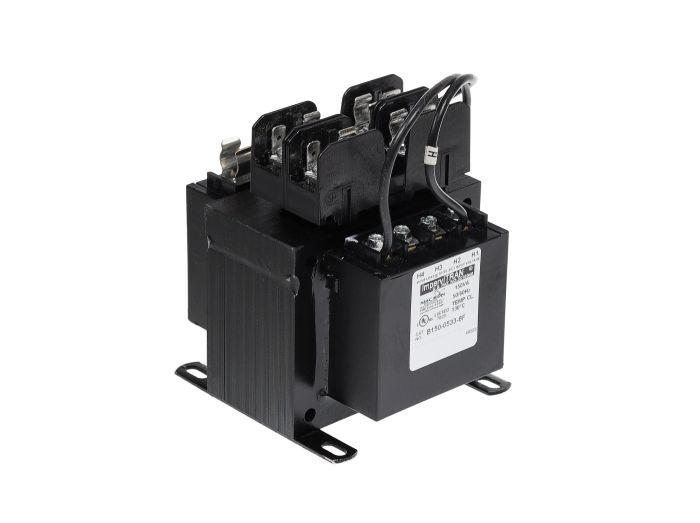

Micron B150-2003-8F Transformer 150VA

Product Description

The MICRON B150-2003-8F is a 150VA transformer with primary voltage options of 200/208, 220/230/240, and 440/460/480VAC, and secondary voltage options of 23/110, 24/115, and 25/120Vac. It operates at 50/60 Hz and features a temperature class of 130C. The transformer includes a dual Class CC primary fuse block and secondary fuse clips. Meets UL and cUL standards.

• Primary Voltage: 200/220/440, 208/230/460, 240/480
• Secondary Voltage: 23/110, 24/115, 25/120
• Rated Frequency: 50/60 Hz

Product Highlights

This Micron transformer is epoxy encapsulated and features corrosion-protected windings and solder, along with molded-in terminals and terminal barriers.

Product Information

Standard Information

• Brand: MICRON
• Manufacturer Part Number: B150-2003-8F
• Country of Origin: USA

Technical Specifications

• Phase: Single Phase
• Primary Voltage: 220x440, 230x460, 240x480
• Series: ImperviTRAN
• Type of Transformer: Control Power
• VA: 150VA
• Manufacturer Part Number: B150-2003-8F
• Manufacturer: Micron Industries
• Product Series: ImperviTRAN
• Description: ImperviTRAN 150 VA, 208/230/460 Primary, 24/115 Secondary
• Secondary Voltage: 115 V, 24 V
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Optional
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Insulation Class: 150
• Approvals: UL, UL (Canada and US), CUL
• Power Rating: 150 Volt Amp
• Terminal Type: Screw
• Frequency Rating: 50/60 Hertz
• Brand: Micron Transformer
• Part Number #: B150-2003-8F
• SKU #: 2191376
