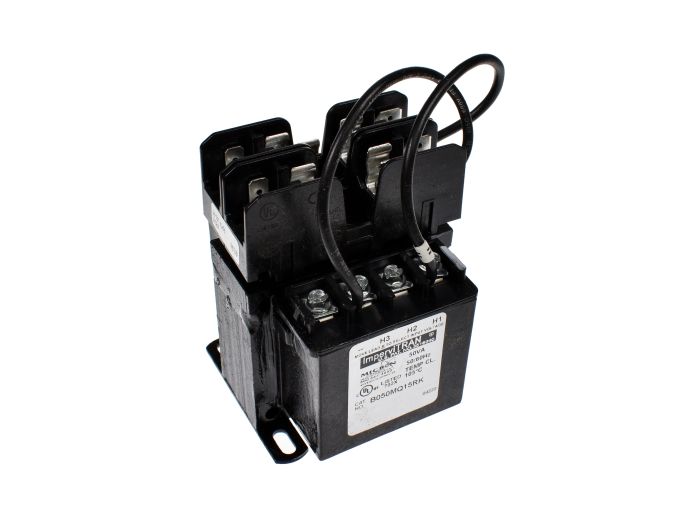

Micron B050MQ15RK 50VA Control Transformer

Product Description

The Micron B050MQ15RK is a 50VA control transformer. It features epoxy encapsulated coils, corrosion-protected windings and solder, and molded-in terminals and terminal barriers. Pre-installed mounting holes and optional secondary fuse clips are available. Meets UL and cUL standards. The ImperviTRAN series is designed for industrial and commercial equipment manufacturers.

• Epoxy Encapsulated Coil
• Corrosion-Protected Windings and Solder
• Molded-In Terminals and Terminal Barriers

Product Highlights

This Micron control transformer is designed for durability and reliability in industrial environments.

Product Information

Standard Information

• Brand: MICRON
• Manufacturer Part Number: B050MQ15RK

Technical Specifications

• Manufacturer Part Number: B050MQ15RK
• Product Series: ImperviTRAN
• Family Series: Micron Industries Transformers, ImperviTRAN Series
• Description: ImperviTRAN 50 VA, 1P, 208/277 Primary, 120 Secondary
• Phase: 1
• Type: Control
• VA Rating: 50 VA
• Primary Voltage: 208 V, 277 V
• Secondary Voltage: 120 V
• Enclosed: No
• Primary Fuseholder: Included
• Secondary Fuseholder: Included
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Insulation Class: Class A
• Approvals: UL
• Net Weight: 3.15 lbs
• Manufacturer: Micron Industries
• Type of Transformer: Control Power
• Transformer Capacity: 50 VA
• Alternate Part Number: ImperviTRAN Series
