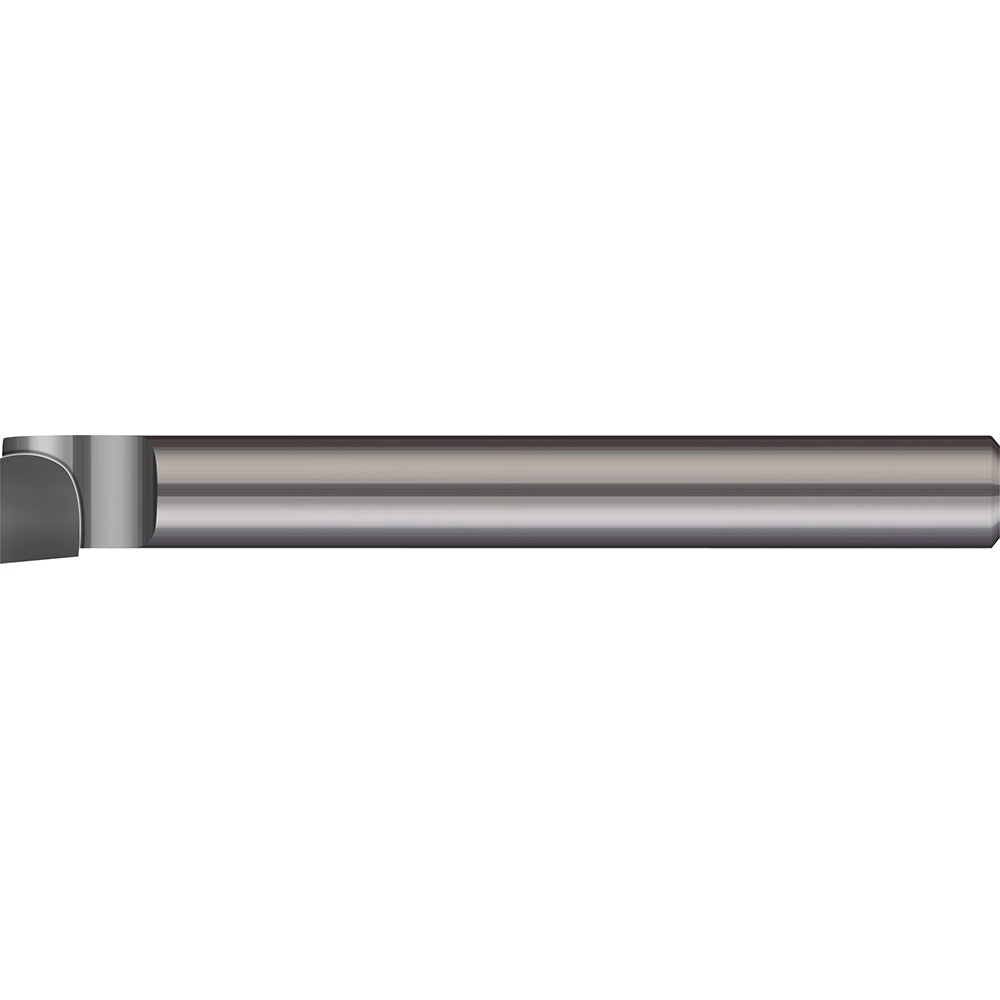

Micro 100 TBB-250 Boring Bar Brazed Solid Carbide 1/4 in Shank

Product Description

The MICRO 100 TBB-250 is a brazed solid carbide boring bar designed for internal diameter boring operations on the lathe or machining center. It features a right-hand cutting direction, a 0.32-inch minimum bore diameter, and a 1/4-inch shank. The carbide insert is permanently brazed to the bar body, providing a rigid, low-maintenance setup suited to tight-tolerance bores in steel, aluminum, cast iron, and similar materials. The bright uncoated finish allows machinists to inspect tool condition easily. At 0.05 pounds, the tool is lightweight and easy to handle during setup and changes.

This boring bar fits standard 1/4-inch shank toolholders and is used in production and job-shop environments where small-diameter internal bores are required. Typical applications include finish boring of hydraulic valve bodies, instrument housings, bushings, and other precision components. The 4-inch overall length provides adequate reach for shallow-to-moderate bore depths without excessive overhang. Right-hand cut geometry is compatible with conventional lathe spindle rotation and standard CNC turning center programs.

Key Features

• Brazed solid carbide construction for rigidity and long tool life in small-bore applications
• 0.32-inch minimum bore diameter enables work on very small internal diameters
• 1/4-inch shank diameter fits standard toolholders and boring bar holders
• 4-inch overall length provides reach for shallow-to-moderate bore depths
• Right-hand cutting direction compatible with conventional spindle rotation
• Bright uncoated finish for easy visual inspection of tool condition

Compatibility

Designed for use in standard 1/4-inch shank boring bar holders on manual lathes and CNC turning centers capable of accommodating a 0.32-inch minimum bore diameter.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Secure the shank firmly in the toolholder and verify the tool is on centerline before taking a cut. Power down the machine and follow lockout/tagout procedures before making any tool changes or adjustments. Do not exceed the tool manufacturer's recommended depth-of-cut or feed rates for the workpiece material being bored.
