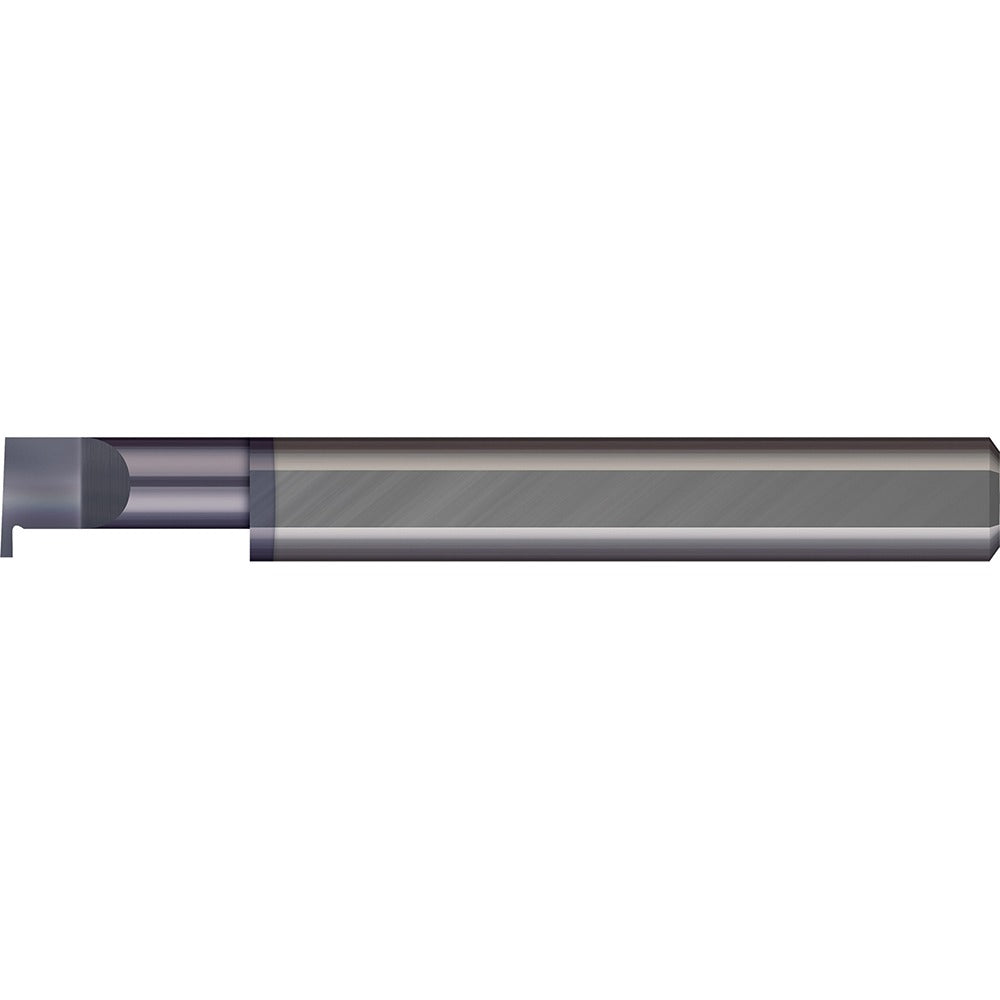

Micro 100 RR-030-10X Retaining Ring Grooving Tool

Product Description

The MICRO 100 RR-030-10X is a solid carbide retaining ring grooving tool designed for cutting internal grooves that seat retaining rings in bored holes. The tool features a 0.030 inch groove width and a 3/16 inch shank diameter, with an overall length of 1.5 inches and a projection of 0.025 inches. Solid carbide construction provides the rigidity and wear resistance needed to hold tight tolerances in small-bore grooving operations. Machinists and toolroom technicians use this tool on CNC lathes and manual turning equipment where precision internal groove geometry is required.

This retaining ring grooving tool is suited for internal grooving applications requiring a minimum hole diameter of 0.090 inches and a maximum hole depth of 0.625 inches. It is well matched to small-bore work on precision components such as hydraulic valves, pneumatic fittings, actuator housings, and similar parts where retaining ring grooves must be cut to close dimensional tolerances. The compact geometry allows access to shallow bores where larger tooling cannot reach.

Key Features

• Solid carbide construction for rigidity and extended tool life in hard or abrasive materials
• 0.030 inch groove width for precision retaining ring groove cutting
• Minimum hole diameter of 0.090 inches enables work in very small bores
• Maximum hole depth of 0.625 inches accommodates typical shallow-bore retaining ring applications
• 3/16 inch shank diameter for compatibility with standard small-bore toolholders
• Overall length of 1.5 inches with 0.025 inch projection for controlled depth engagement

Compatibility

Designed as an OEM-style retaining ring grooving tool for use in standard 3/16 inch shank toolholders on CNC lathes and manual turning centers performing internal grooving operations.

Installation Notes

This tool is installed and used by machinists and toolroom professionals on turning equipment. Ensure the machine spindle is fully stopped and locked out before changing or adjusting tooling. Confirm the shank is properly seated and clamped in the toolholder to the manufacturer-recommended engagement depth before beginning a cut. Do not exceed the maximum hole depth specification, as over-extension increases deflection risk and can cause tool breakage in solid carbide tools.
