Micro 100 QRR-038-12 Retaining Ring Grooving Tool

Product Description

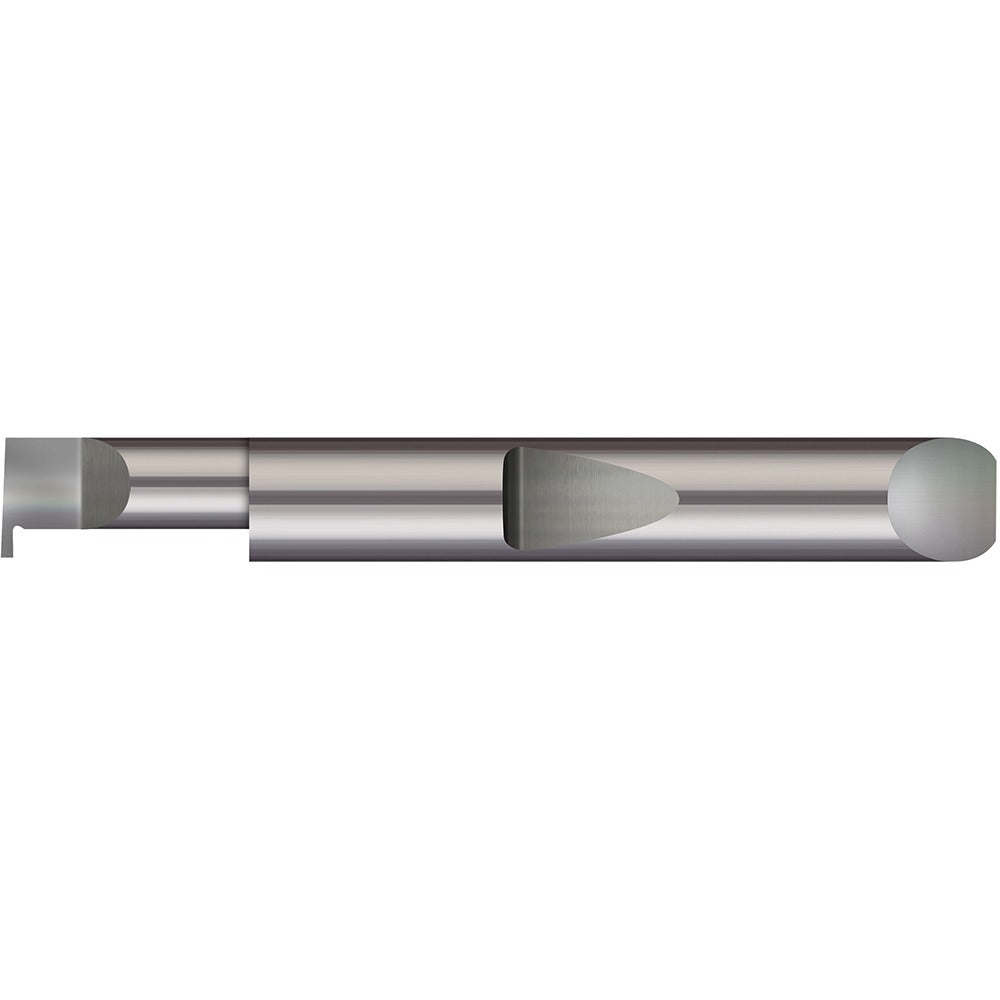

The MICRO 100 QRR-038-12 is a solid carbide face grooving tool designed for cutting retaining ring grooves inside bored holes. Built from solid carbide throughout, it delivers the rigidity and edge retention needed for precise groove geometry in production and job-shop turning applications. The shank diameter is 5/16 inch, the overall length is 2.0 inches, and the tool projects 0.08 inches from the shank centerline. This tool is installed and operated by machinists and tooling technicians working on CNC lathes and manual turning centers where internal grooving accuracy is critical.

This grooving tool is suited for face grooving operations on the interior walls of bored holes with a minimum hole diameter of 0.31 inches. It accommodates a maximum hole depth of 0.75 inches and cuts a groove width of 0.322 inches - sized for standard retaining ring seat profiles. Typical applications include shaft retention features, snap-ring groove machining, and internal channel work on housings, bores, and cylindrical components in both prototype and production environments.

Key Features

• Solid carbide construction for rigidity and extended tool life in grooving operations
• Face grooving geometry engineered specifically for retaining ring seat profiles
• 0.322 inch groove width matches standard internal retaining ring dimensions
• 0.08 inch projection allows controlled depth engagement in tight bore conditions
• 5/16 inch shank diameter for compatibility with standard toolholders and collet chucks
• 2.0 inch overall length provides reach without excess overhang

Compatibility

Designed for use in standard 5/16 inch bore toolholders and collet-style holders on CNC and manual lathes capable of internal face grooving; suitable for bores at or above 0.31 inches minimum hole diameter.
