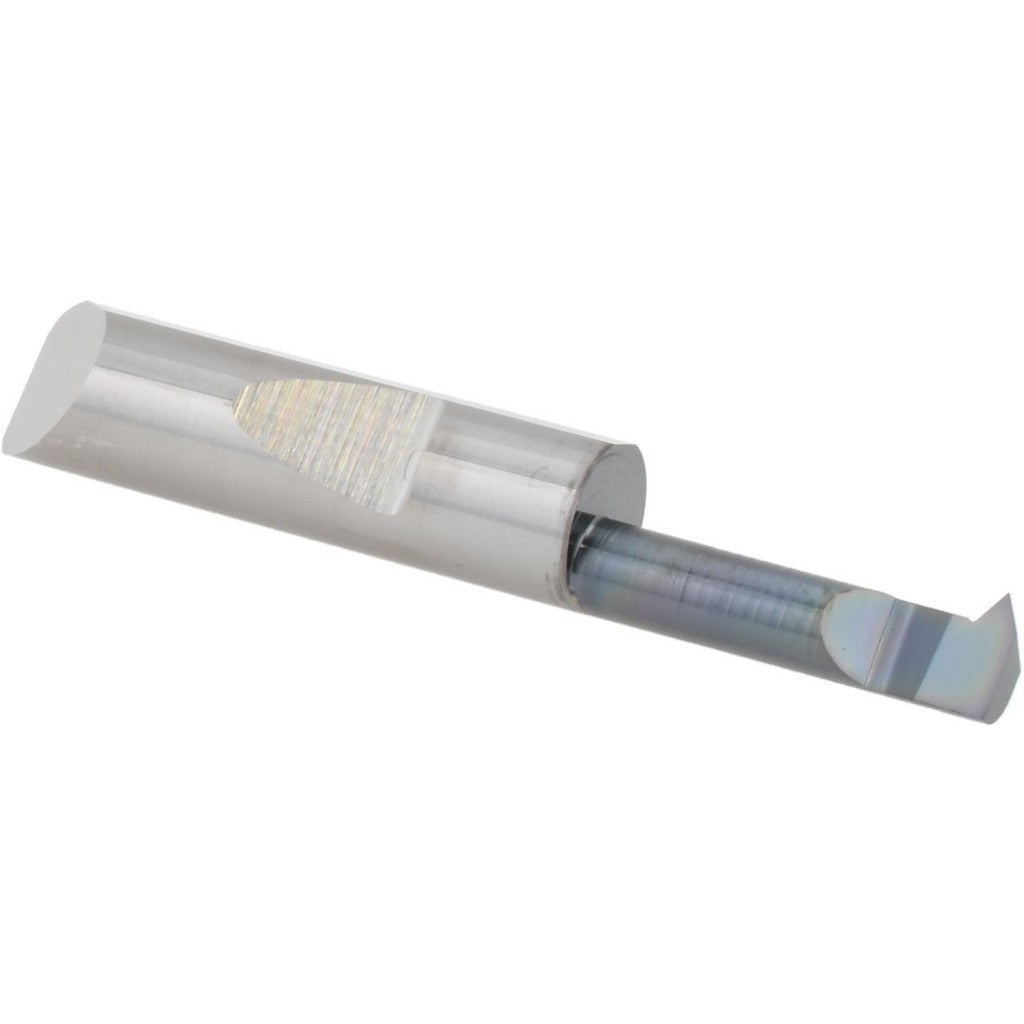

Micro 100 QIT-230750X Single Point Threading Tool

Product Description

The MICRO 100 QIT-230750X is a solid carbide internal single point threading tool designed for precision thread-form cutting on CNC lathes and turning centers. It handles a minimum threading diameter of 0.23 inches with a cutting depth of 0.75 inches, covering a thread pitch range of 20 to 48 TPI. The 60-degree profile angle suits unified and metric thread forms commonly encountered in production machining environments. An AlTiN coating provides thermal resistance and extended tool life in ferrous and hardened materials. This tool is installed and used by machinists and CNC operators in job shops, production facilities, and toolroom environments.

This tool is suited for internal threading operations on small-diameter bores in steel, stainless steel, and similar ferrous alloys. The 5/16-inch shank diameter allows secure clamping in standard boring bar holders and turret tooling blocks. With a 2-inch overall length and a 0.055-inch projection from the edge, the QIT-230750X is well-configured for close-clearance internal threading work on CNC turning equipment requiring consistent thread geometry across production runs.

Key Features

• Solid carbide construction for rigidity and wear resistance in threading applications
• AlTiN coating for improved heat resistance and tool life in ferrous materials
• 60-degree profile angle compatible with unified and metric thread standards
• Covers 20 to 48 TPI range for versatile pitch selection in a single tool
• 0.75-inch cutting depth supports threading to depth in typical bore configurations
• 0.055-inch projection from edge for controlled insert positioning in tight bores

Compatibility

Designed as an OEM-style replacement or direct tooling selection for CNC lathes and turning centers accepting a 5/16-inch shank boring bar or threading tool holder for internal single point threading operations.

Installation Notes

This tool is set up and operated by qualified CNC machinists familiar with turning center tooling systems. Power down and lock out the machine spindle before mounting or removing tooling in the turret. Secure the shank to the manufacturer-specified clamping torque for your tool holder per the machine builder guidelines. Verify thread form, pitch, and depth parameters in the CNC program before initiating a threading cycle.
