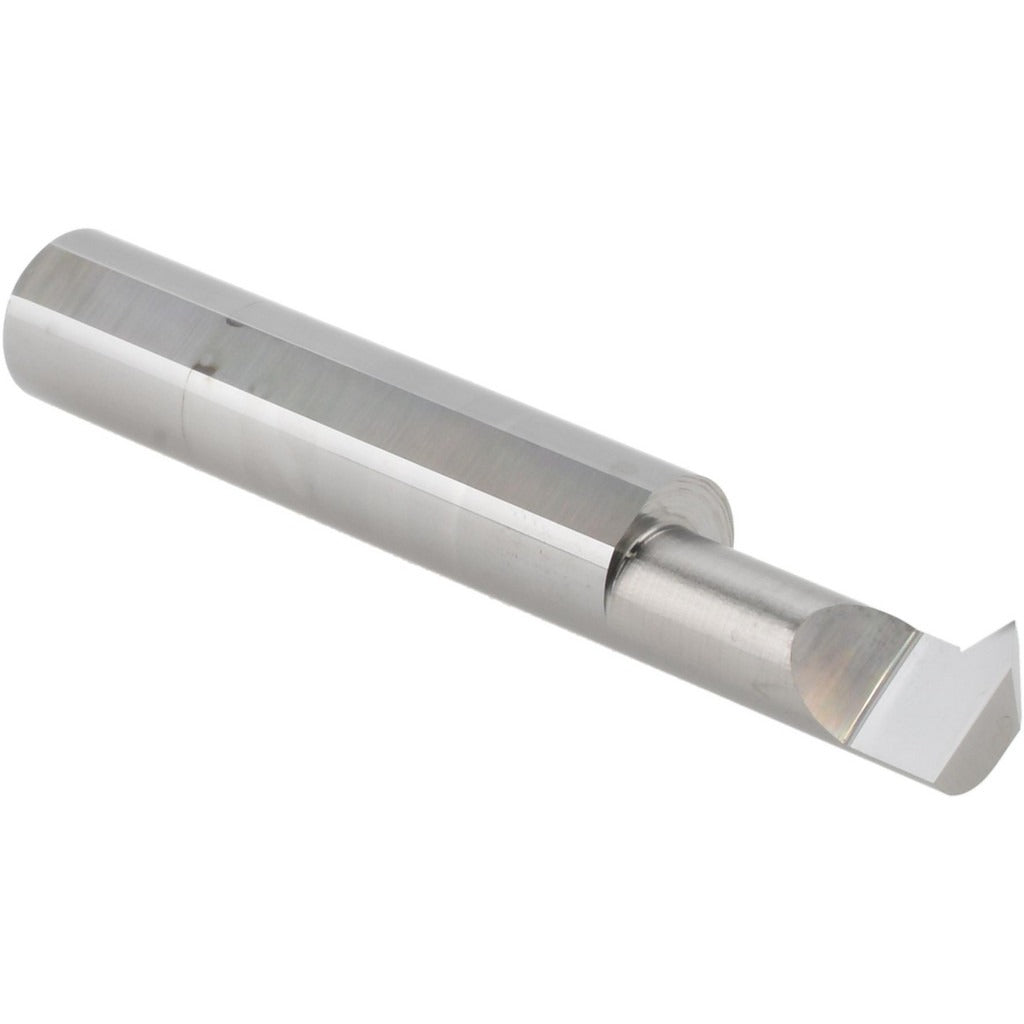

Micro 100 IT-360750 Internal Threading Tool Solid Carbide

Product Description

The MICRO 100 IT-360750 is a solid carbide single point internal threading tool designed for cutting internal threads on a lathe or CNC turning center. It handles a minimum threading diameter of 0.36 inches and supports a thread range of 11 to 28 TPI, making it suitable for a wide band of coarse to fine internal thread profiles. The 60-degree profile angle conforms to Unified and metric thread forms. With a cut depth of 0.75 inches and a 0.375-inch shank diameter, this tool seats securely in standard boring bar-style holders. The bright, uncoated carbide finish is well suited for non-ferrous and general-purpose threading applications where coating buildup would reduce dimensional control.

This tool is used in production and job-shop turning operations where repeatable internal thread geometry is required. Typical applications include threading bores in aluminum, brass, mild steel, and similar machinable materials. It is appropriate for both manual lathe work and CNC programs where a single point threading cycle is used. Machinists and toolroom operators working with standard UN or metric 60-degree thread forms will find this tool fits directly into common tool holding systems with a 3/8-inch bore.

Key Features

• Solid carbide construction for rigidity and wear resistance in interrupted and continuous threading cuts
• 60-degree profile angle compatible with Unified National and metric thread standards
• Thread range of 11 to 28 TPI covers a broad selection of coarse and fine pitch internal threads
• 0.75-inch cut depth allows threading into relatively deep bores without tool change
• 0.085-inch projection from edge provides clearance geometry for threading at or near bore entry
• Bright uncoated finish maintains sharp edge geometry on non-ferrous and general-purpose materials

Compatibility

Designed as an OEM-style single point internal threading tool compatible with standard 3/8-inch shank tool holders used in lathe and CNC turning applications.

Installation Notes

Installation is performed by a machinist or toolroom technician. Secure the 3/8-inch shank firmly in the tool holder and confirm tool height is on center before starting a threading pass. Power down and lock out the machine before adjusting tool position or changing inserts. Follow the machine tool manufacturer guidelines and applicable shop safety procedures when setting up threading operations.
