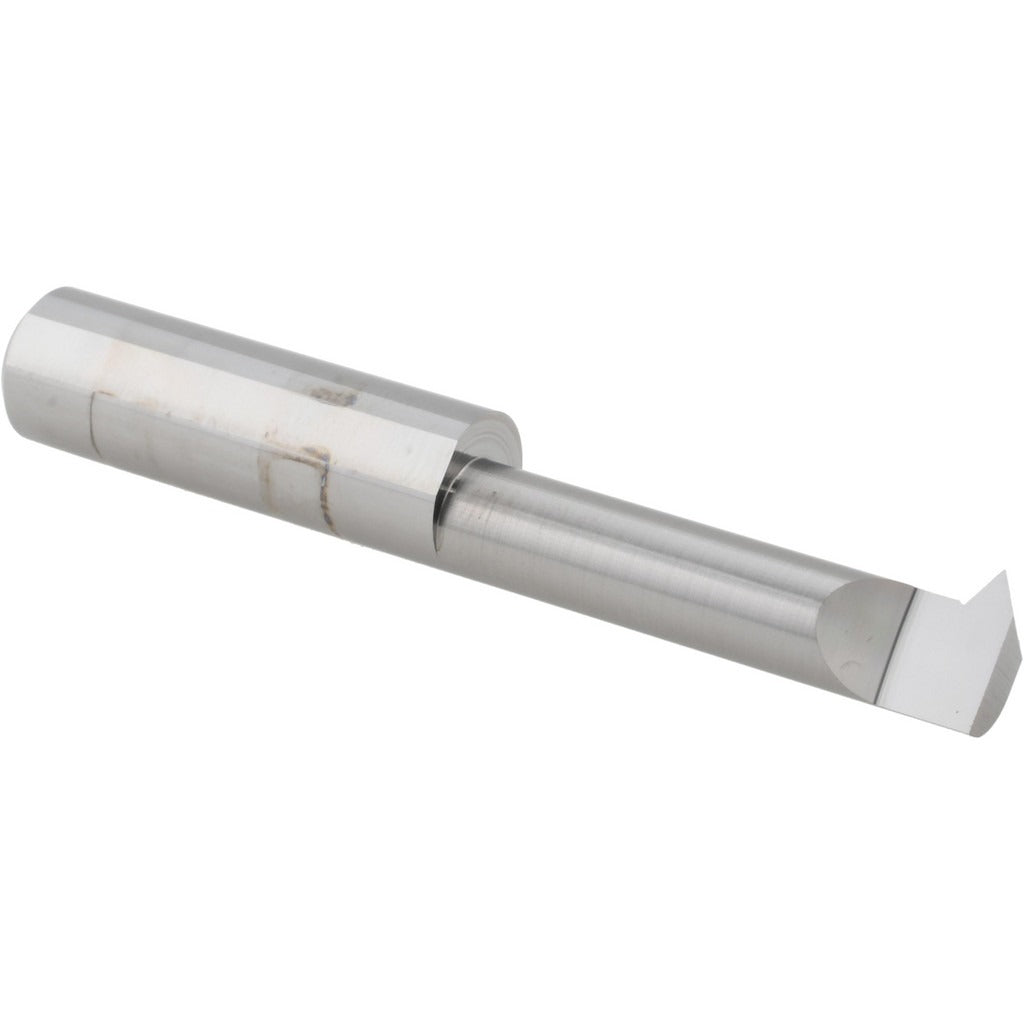

Micro 100 IT-3601250 Internal Threading Tool Solid Carbide

Product Description

The MICRO 100 IT-3601250 is a solid carbide single point internal threading tool designed for cutting internal threads on CNC lathes and turning centers. It handles a minimum threading diameter of 0.36 inches, a thread range of 11 to 28 TPI, and a cutting depth of 1.25 inches. The 60-degree profile angle makes it suitable for standard Unified and metric thread forms. With a 0.375-inch shank diameter and a bright, uncoated finish, this tool is a direct-mount solution for shops running tight-tolerance internal threading operations. It is installed by machinists and CNC operators working in metal fabrication, toolroom, and production environments.

This tool is suited for internal threading applications in both job shop and production settings where consistent thread geometry is required. The solid carbide construction provides rigidity and wear resistance when threading ferrous and non-ferrous materials. The 2.5-inch overall length and 0.085-inch projection from the edge allow access to threading depths that require reach without sacrificing tool stability. It is a practical choice for shops needing a reliable single point threading solution without coated tooling.

Key Features

• Solid carbide construction for rigidity and extended tool life in internal threading operations
• 60-degree profile angle compatible with standard Unified thread forms
• Thread range of 11 to 28 TPI covers a broad selection of common thread pitches
• Minimum threading diameter of 0.36 inches for small-bore internal thread applications
• Bright, uncoated finish suitable for use with or without coolant in compatible setups
• 0.085-inch projection from edge provides controlled engagement geometry

Compatibility

Designed as an OEM-style single point internal threading tool for use in standard 0.375-inch shank tool holders on CNC lathes and turning centers.

Installation Notes

This tool is installed by machinists in CNC lathe or turning center tooling systems. Secure the 0.375-inch shank in a compatible boring bar holder or tool block and verify runout before threading. Power down and lock out the machine before making any tool changes or adjustments. Follow the machine tool manufacturer guidelines for feed rate and spindle speed when setting up threading passes.
