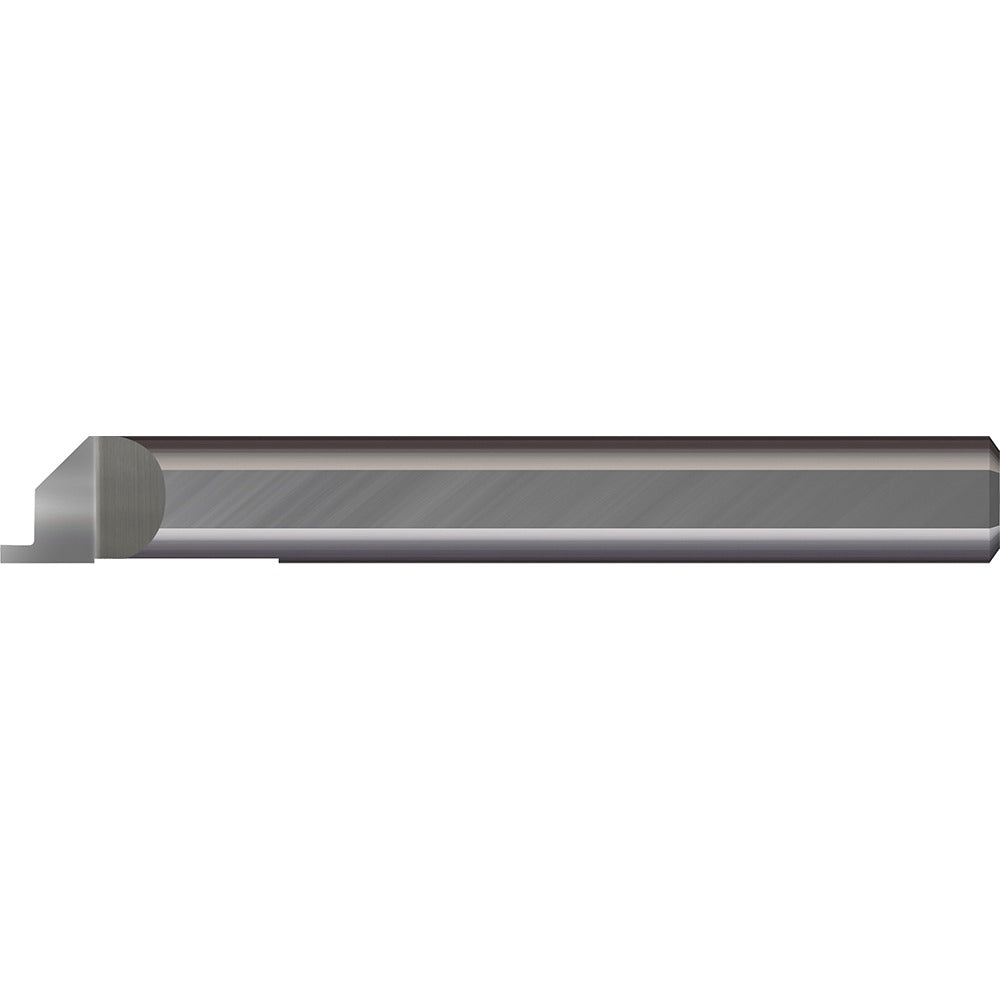

Micro 100 FG-375-062 Face Grooving Tool Solid Carbide

Product Description

The MICRO 100 FG-375-062 is a solid carbide face grooving tool designed for internal face grooving operations on CNC lathes and manual turning centers. It cuts grooves with a 0.062-inch width at a 0.030-inch projection, working in bores with a minimum hole diameter of 0.380 inches and a maximum hole depth of 1.0 inch. The 3/8-inch shank and 2.5-inch overall length make it a compact, rigid tooling solution. Machinists and tool-and-die professionals use this tool when producing retaining ring grooves, O-ring seats, and snap-ring channels on the face of a bore.

This face grooving tool is suited for precision turning applications in production and job-shop environments. It is commonly used on aluminum, steel, stainless, and other machinable alloys where tight-tolerance internal face grooves are required. The solid carbide construction provides wear resistance and dimensional stability across extended run cycles. Typical applications include hydraulic components, pneumatic fittings, and precision mechanical assemblies requiring internal face grooves.

Key Features

• Solid carbide construction for superior wear resistance and rigidity
• 0.062-inch groove width for narrow internal face groove applications
• 0.030-inch projection supports controlled depth engagement
• Minimum bore entry of 0.380 inches suits small-diameter internal work
• Maximum hole depth of 1.0 inch accommodates standard workpiece reach requirements
• 3/8-inch shank diameter fits common lathe toolholders and quick-change systems

Compatibility

Designed as an OEM-style replacement and standard fitment for 3/8-inch shank face grooving toolholders used in CNC and manual turning applications requiring a 0.062-inch groove width.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer's clamping torque and runout specifications. Ensure the machine spindle is fully stopped and the lathe is locked out before mounting or removing tooling. Verify shank seating and tool projection before taking a cut, and confirm bore clearance meets the 0.380-inch minimum diameter requirement before engaging the workpiece.
