METAL-FAB 7TGWS Metal-Fab Temp Guard 7TGWS Galvanized Wall Support/Adapter

Product Description

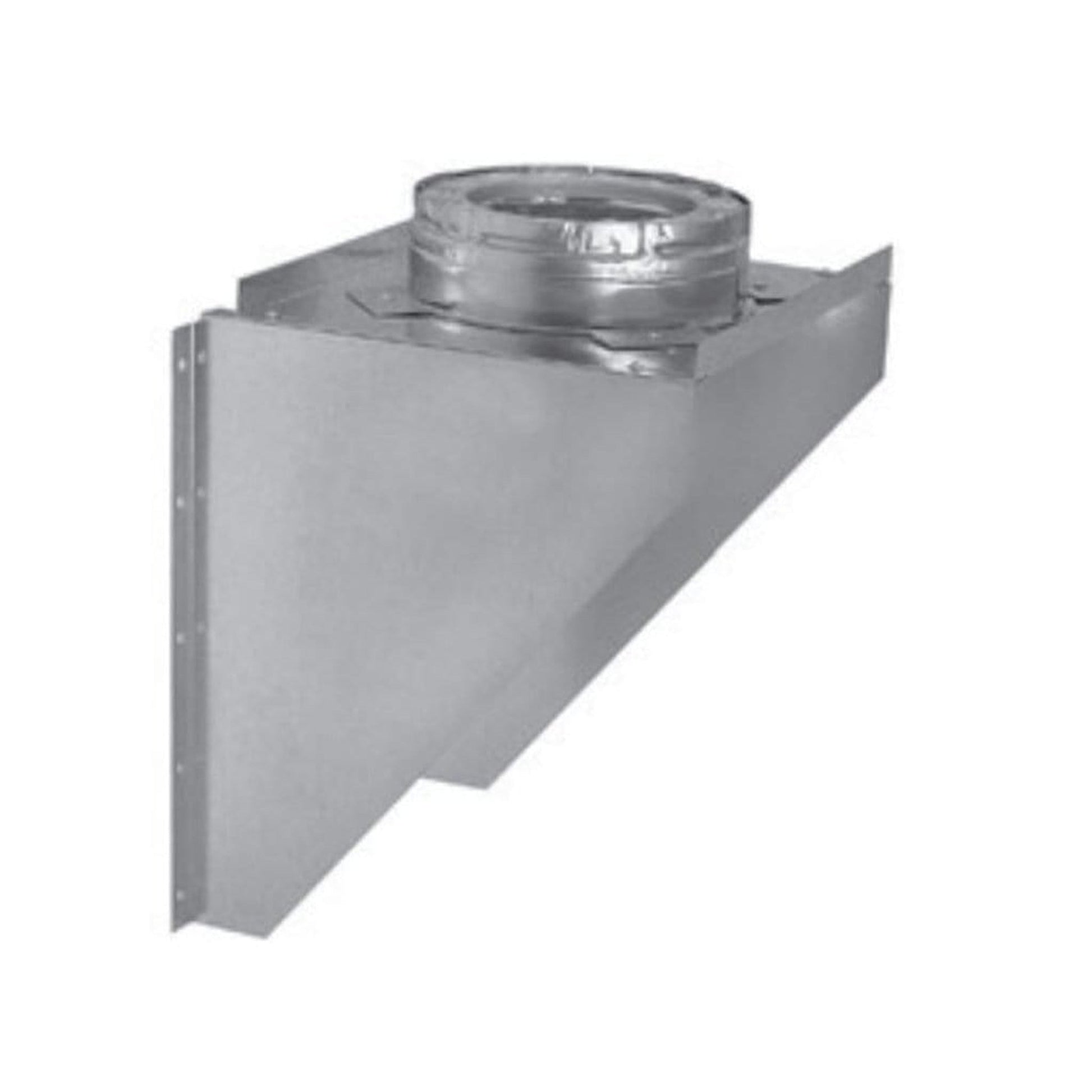

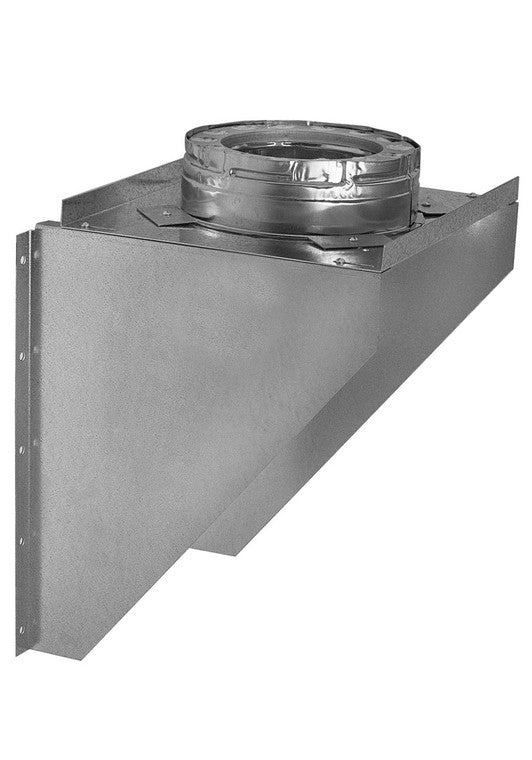

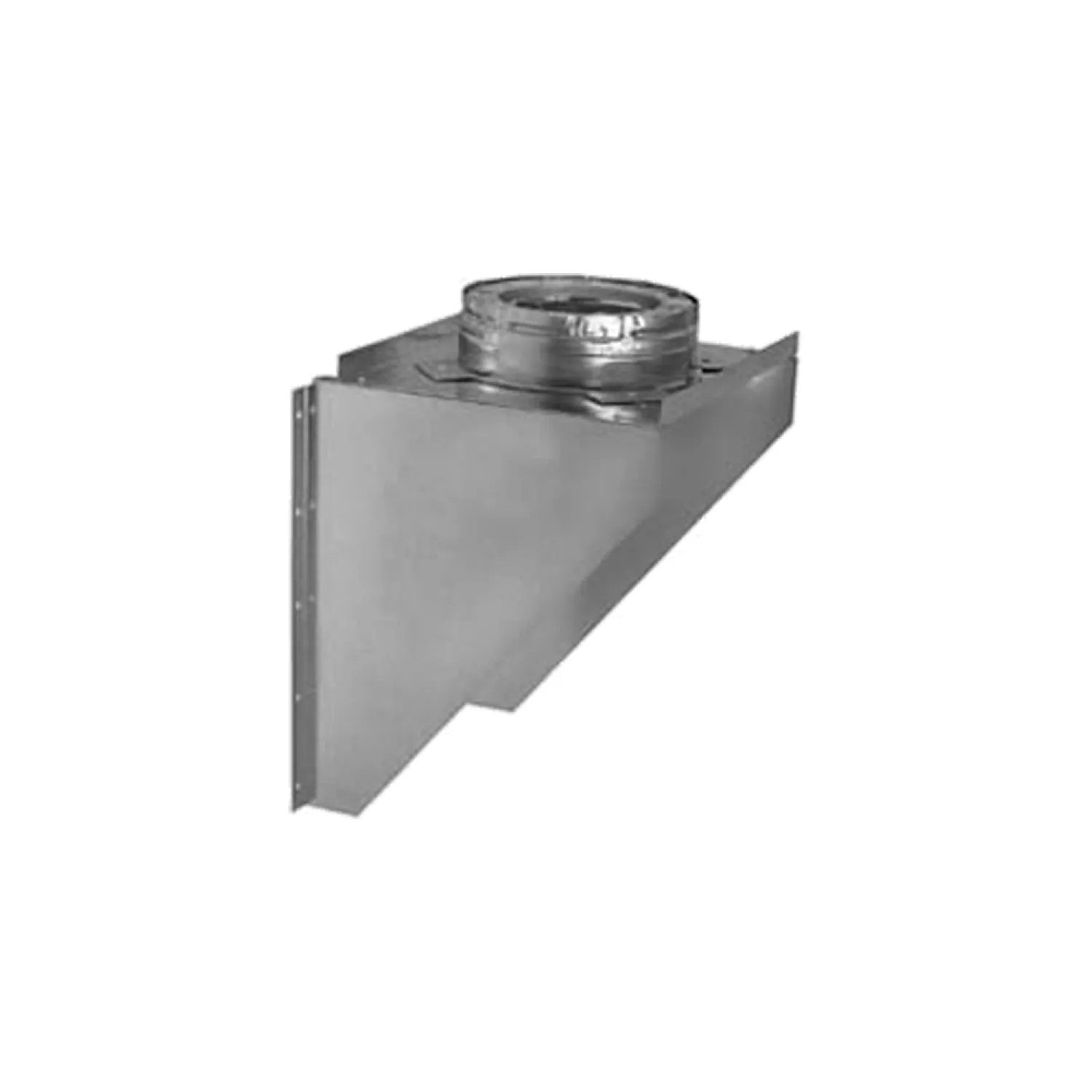

The METAL-FAB Temp Guard Wall Support/Adapter, MPN 7TGWS, is engineered for heating appliances that utilize wood, oil, coal, or gas. This product is tested to UL standard 103HT, ensuring reliability for your chimney system installations. It features ceramic fiber insulation, which promotes consistent flue gas temperature distribution, and a positive twist lock mechanism that allows for straightforward assembly. This wall support is perfect for chimney systems requiring lateral connections through combustible walls. The outer casing is made from galvanized steel, contributing to its durability.

• Features ceramic fiber insulation for consistent flue gas temperature distribution.
• Employs positive twist lock for easy assembly.
• Compatible with insulated tee for lateral chimney connections.

Product Highlights

This wall support is designed for factory-built double wall chimney applications, making it suitable for various heating appliances.

Product Information

Standard Information

• Manufacturer: Metal-Fab
• Product Type: Chimney Part

Technical Specifications

• Product: Support
• Product Collection: TempGuard
• Style: Repair & Replacement
• Listings/Standards: NFPA 211, UL 103HT
• Application: Factory-built double wall chimney for use with listed appliances
• Flue Material: 0.015, 430 stainless steel
• Casing Material: 0.018, galvanized
• Inner Diameter: 7 inches
• Outer Diameter: 10 inches
• Height: 16.5 inches
• Color: Silver
