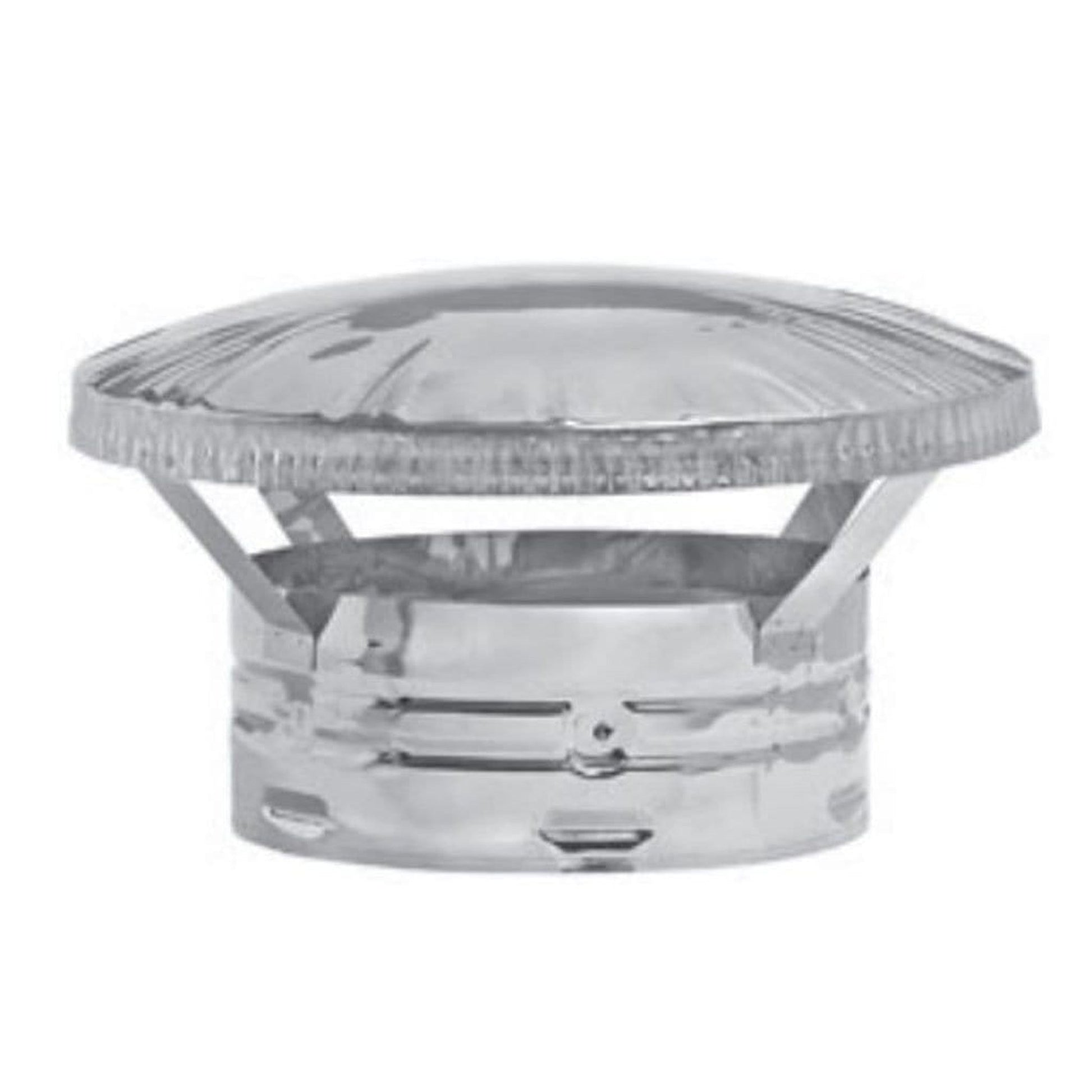

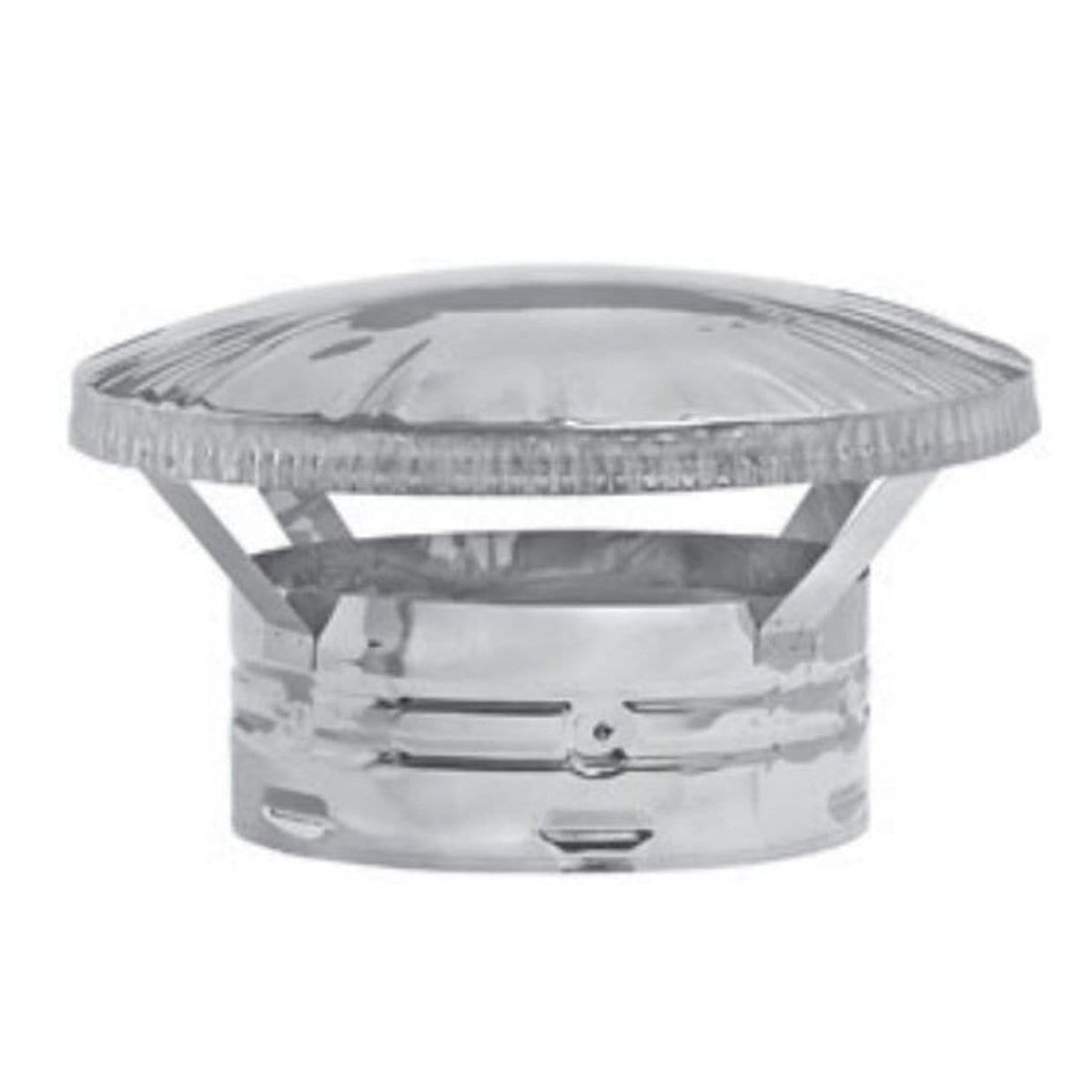

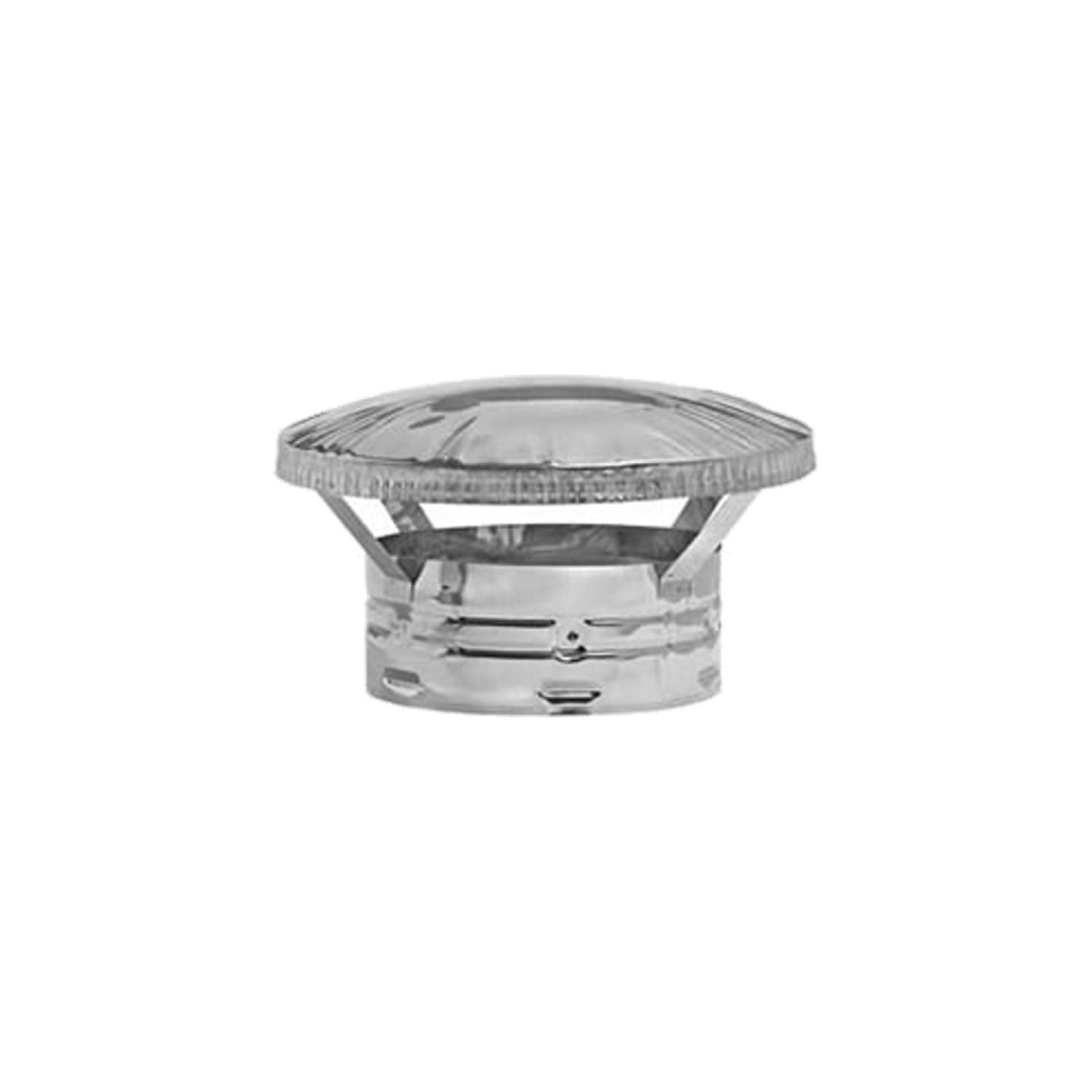

Metal-Fab 6TGRC 6-Inch Temp Guard Rain Cap

Product Description

The Metal-Fab 6TGRC is a rain cap designed for heating appliances that use wood, oil, coal, or gas. It is compliant with UL 103HT standards, suitable for high-temperature applications with a maximum continuous temperature of one thousand degrees Fahrenheit and an intermittent temperature of two thousand one hundred degrees Fahrenheit. The twist-lock connection allows for a secure assembly and easy installation. The cap features ceramic fiber insulation that ensures even distribution of flue gas temperatures. The stainless steel outer casing provides durability and long-lasting performance.

• Constructed with stainless steel for durability
• Maximum temperature ratings of one thousand degrees Fahrenheit
• Twist-lock design for simple assembly

Product Highlights

Offers reliable protection against rain while maintaining optimal performance for heating appliances.

Product Information

Standard Information

• Manufacturer: Metal Fab
• Product: Cap

Technical Specifications

• Material: Stainless Steel
• Listings/Standards: NFPA 211, UL 103HT
• Inner Diameter: 6 inches
• Outer Diameter: 9 inches
• Width: 13.5 inches
• Height: 9.88 inches
• Weight: 3.00 lbs
• Flue Material: 430 Stainless Steel
• Casing Material: 430 Stainless Steel
• Clearance: 1-1/2 inches minimum to combustibles for 6-8 inches
• Color: Stainless
