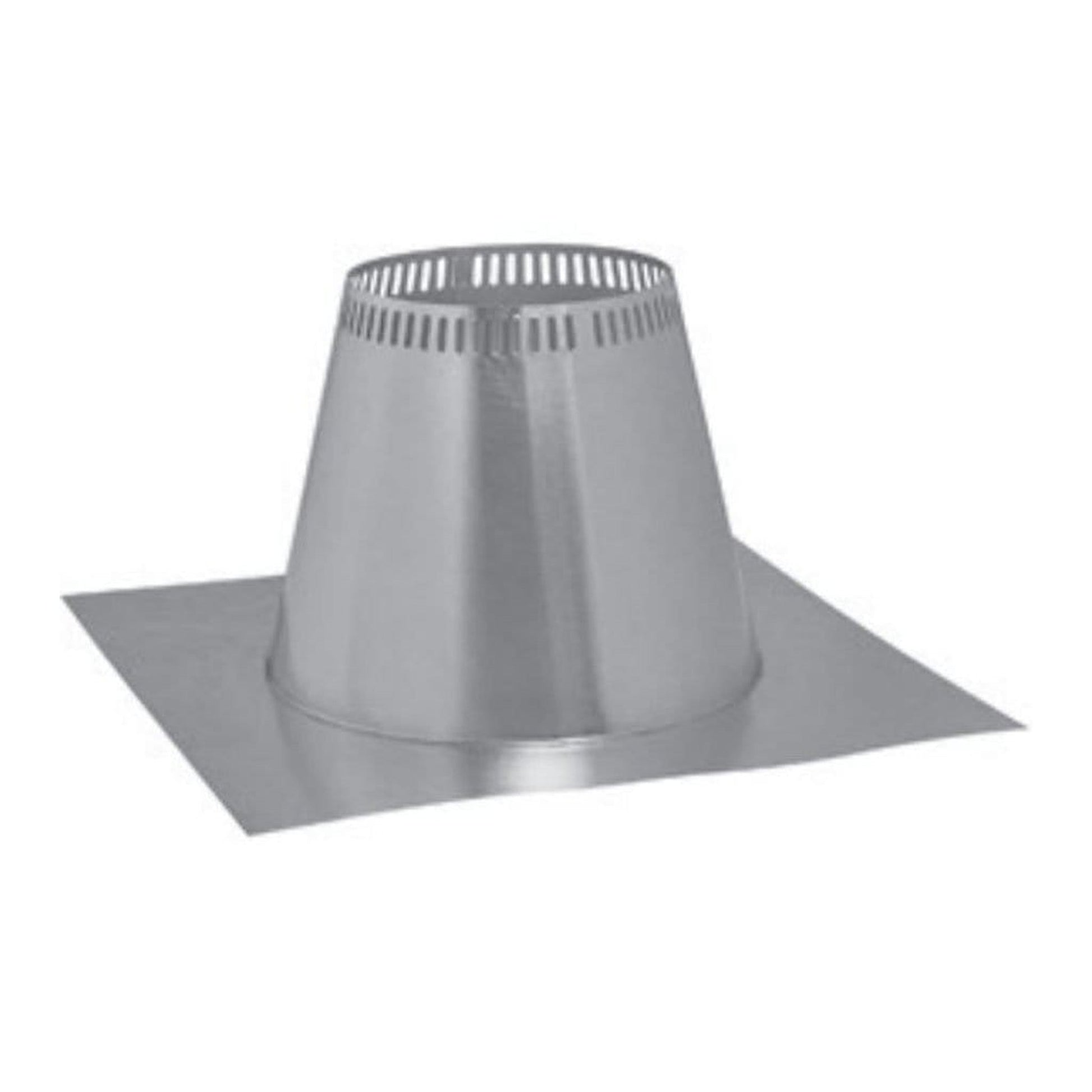

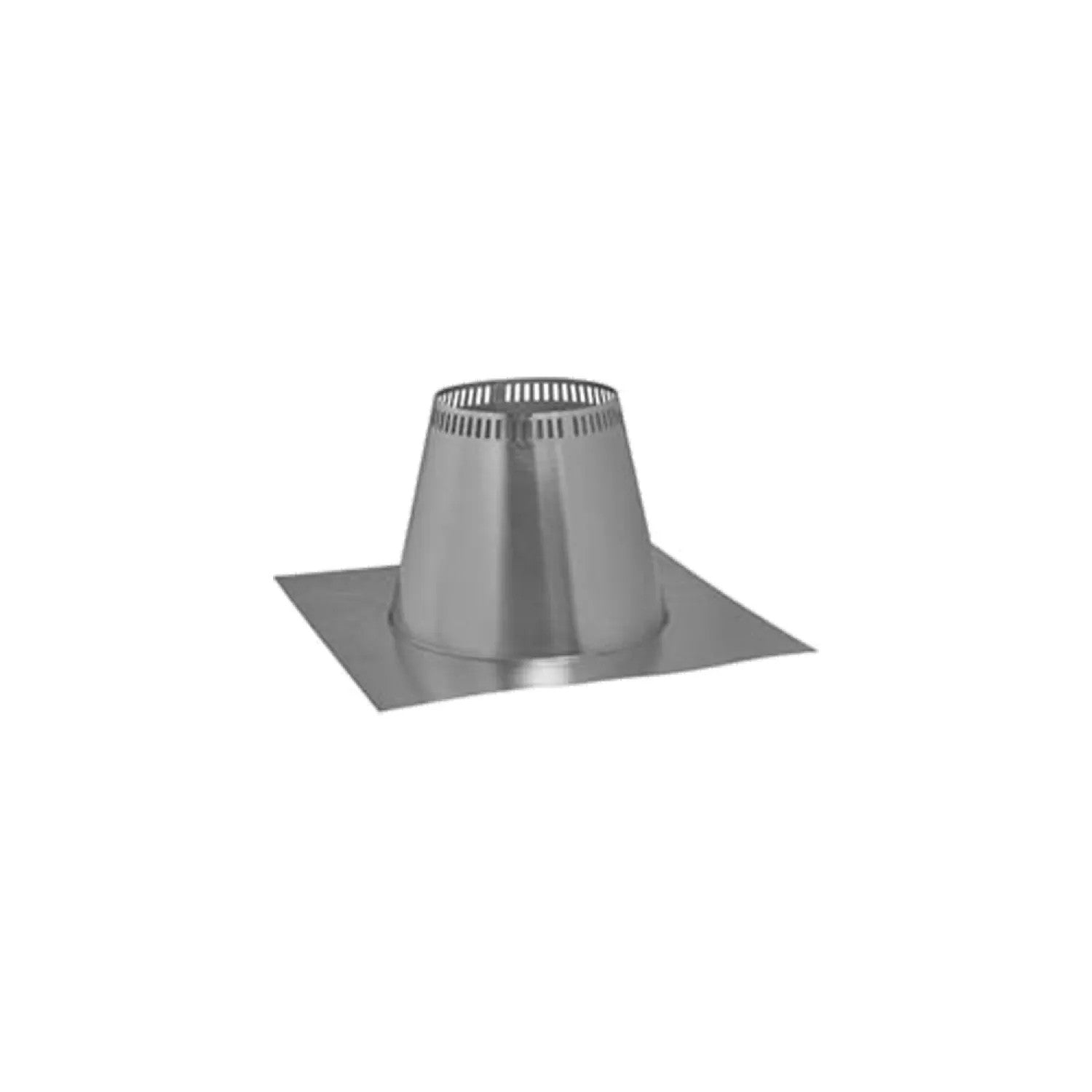

Metal-Fab 6TGAFT Temp Guard Flat Tall Cone Flashing

Product Description

The Metal-Fab 6TGAFT Temp Guard flat tall cone flashing is for residential and building heating appliances that burn wood, oil, coal, or gas. It meets the UL 103HT standards. Suitable for all-fuel applications, this flashing can withstand continuous operating temperatures up to one thousand degrees Fahrenheit and intermittent temperatures up to two thousand one hundred degrees Fahrenheit.

• Features ceramic fiber insulation for even flue gas temperature distribution.
• Employs a positive twist lock for easy assembly.
• Suitable for use with wood, coal, oil, or gas-fired appliances.

Product Highlights

This product is designed for efficiency and safety in various heating applications.

Product Information

Standard Information

• Manufacturer: Metal-Fab
• Application: Factory-built double wall chimney for listed wood, coal, oil, or gas-fired appliances.

Technical Specifications

• Model: 6TGAFT
• Material: Aluminum
• Height: 11.75 inches
• Depth: 22.25 inches
• Pitch: 0/12 to 2/12
• Listings/Standards: NFPA 211, UL 103HT
• Color: Silver
