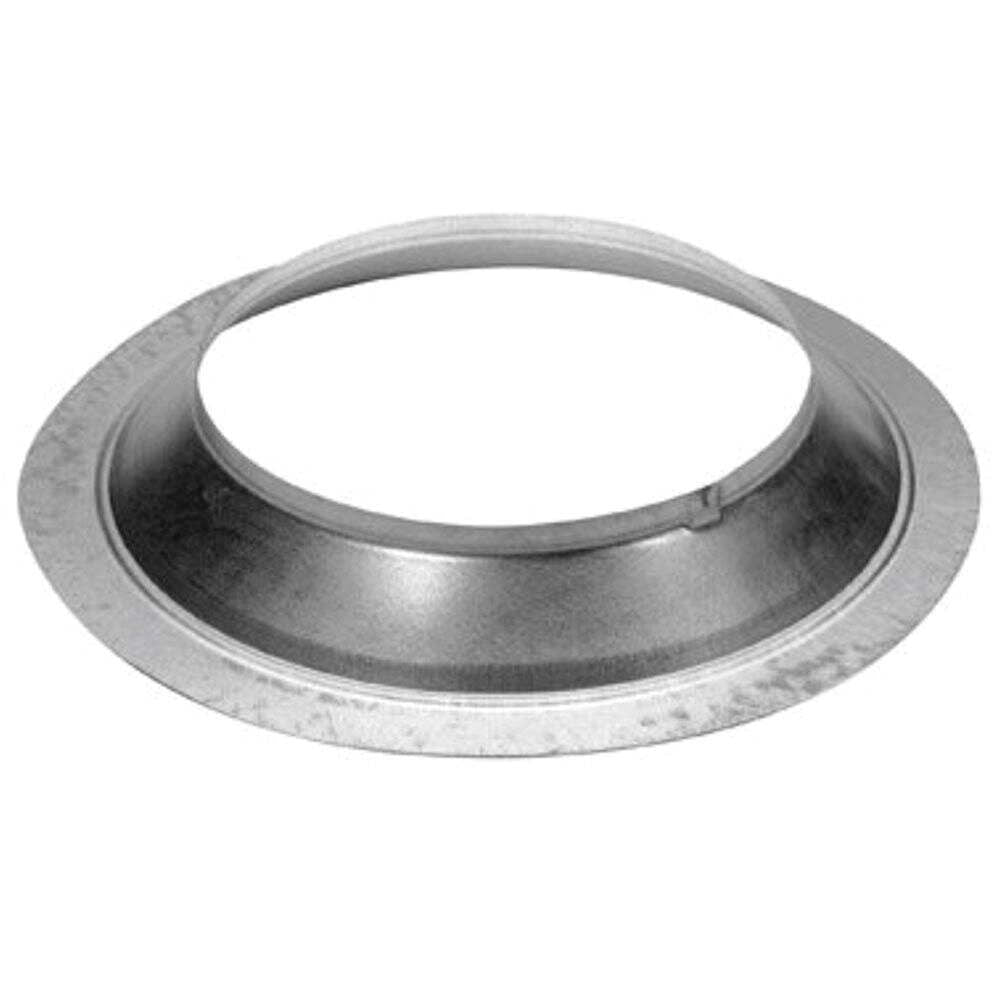

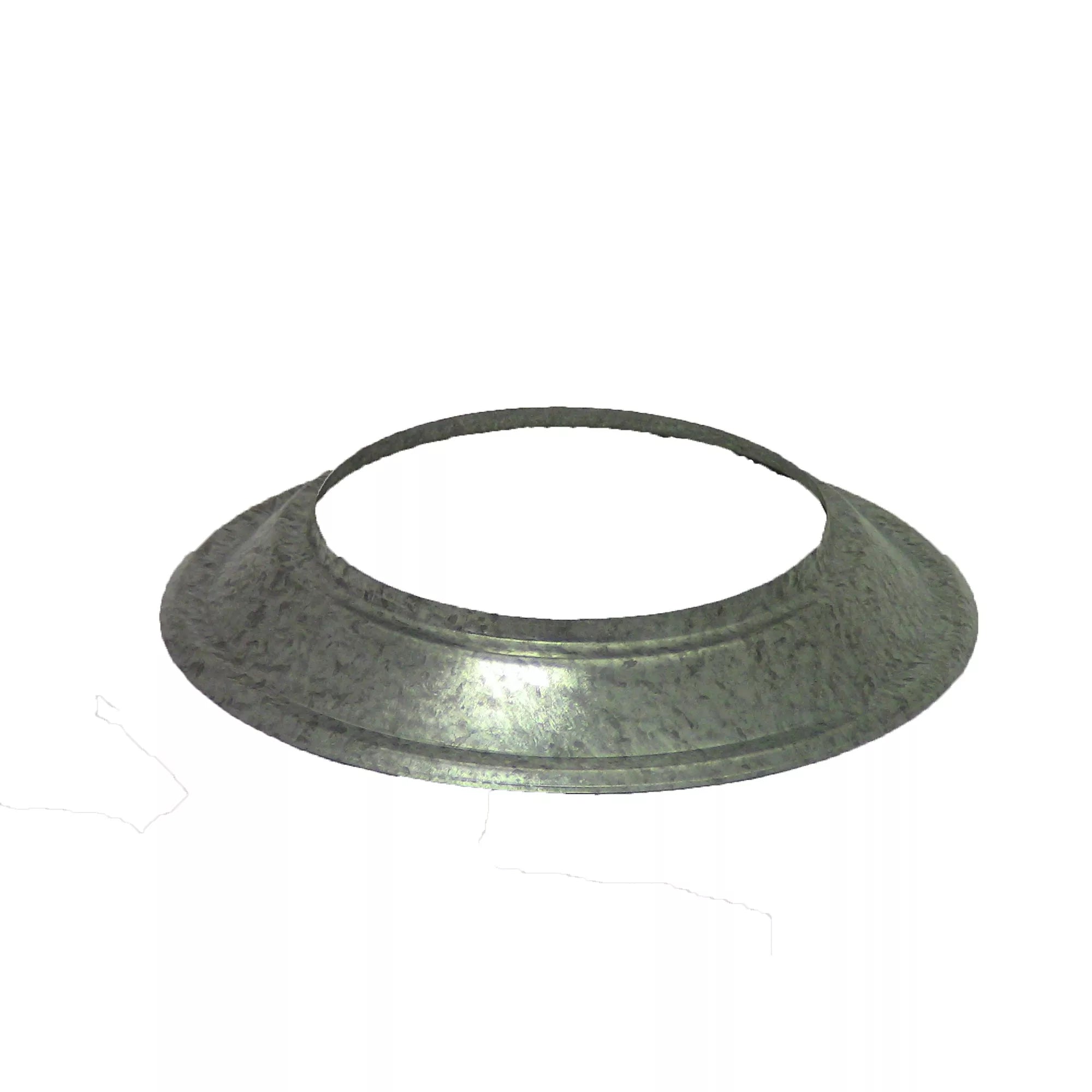

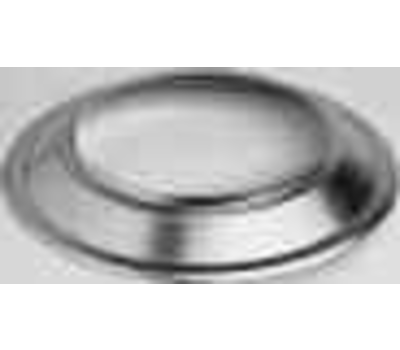

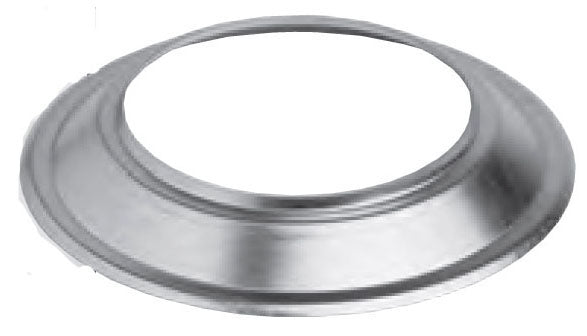

Metal-Fab 6MSC B-Vent Storm Collar 6 inches

Product Description

The Metal-Fab 6MSC is a B-Vent storm collar designed for approved Category 1 gas furnaces, heaters, and boilers. This storm collar features a double-wall design allowing for close clearance to combustibles in both residential and commercial settings. Installation is quick and safe due to its user-friendly design. It is UL Listed and compatible with other gas vent products.

• Constructed to eliminate sharp edges using a hemmed flue and casing
• Tool-free assembly and disassembly through a positive twist lock
• Incorporates a Surelock B-Vent locking system for secure connections

Product Highlights

This storm collar provides safety and ease of installation, making it suitable for various applications in HVAC systems.

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 6MSC

Technical Specifications

• Inside Diameter: 6 inches
• Shape: Round
• UL Listed: Yes
• Gauge: Outer Wall - 26 GA, Inner Wall - 30 GA
• Height: 5 inches
• Length: 10.5 inches
• Width: 10.5 inches
• Material: Aluminum Alloy (Flue), G90 Galvanized Steel (Casing)
