Metal-Fab 3MFT Tall Cone Flat Flashing 3 in

Product Description

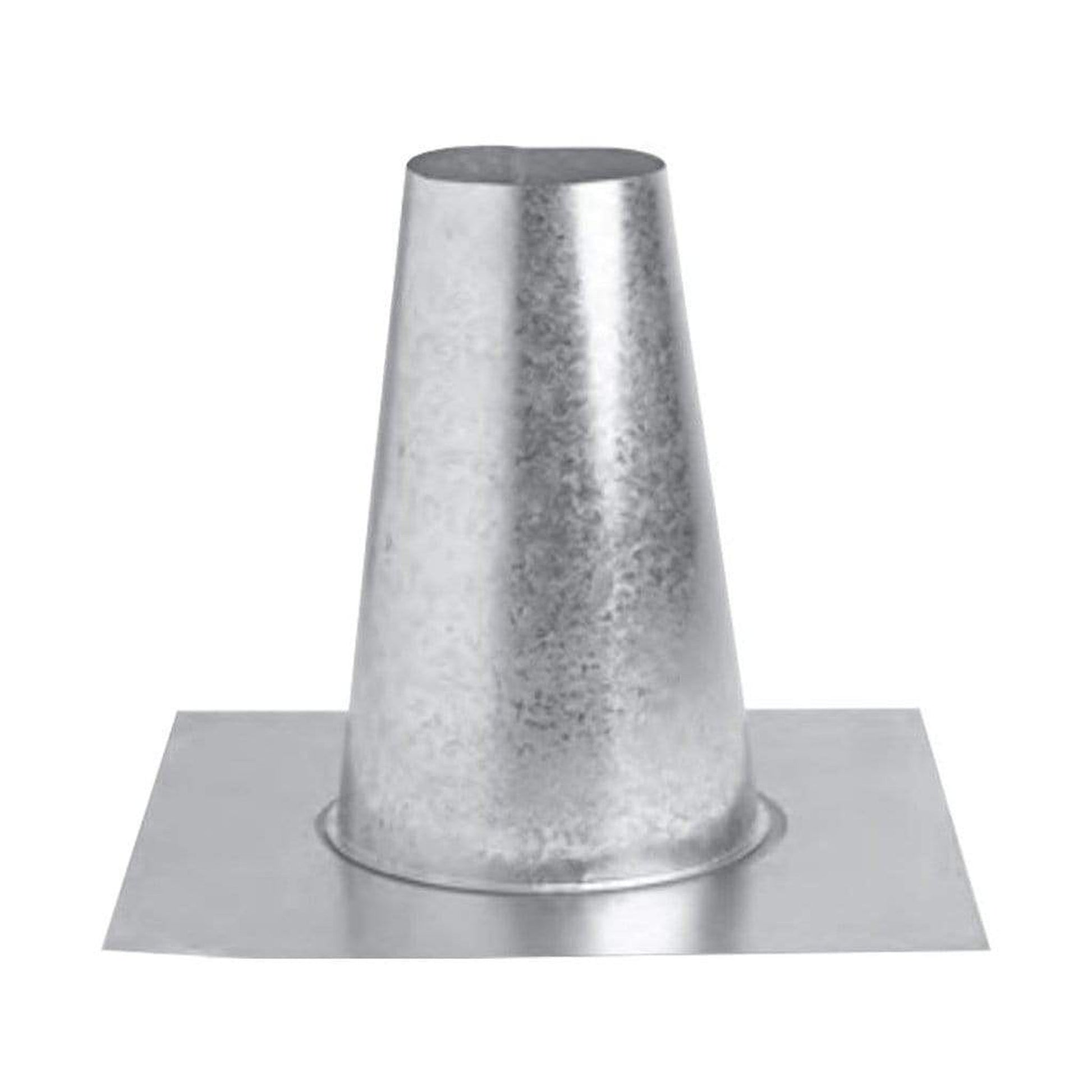

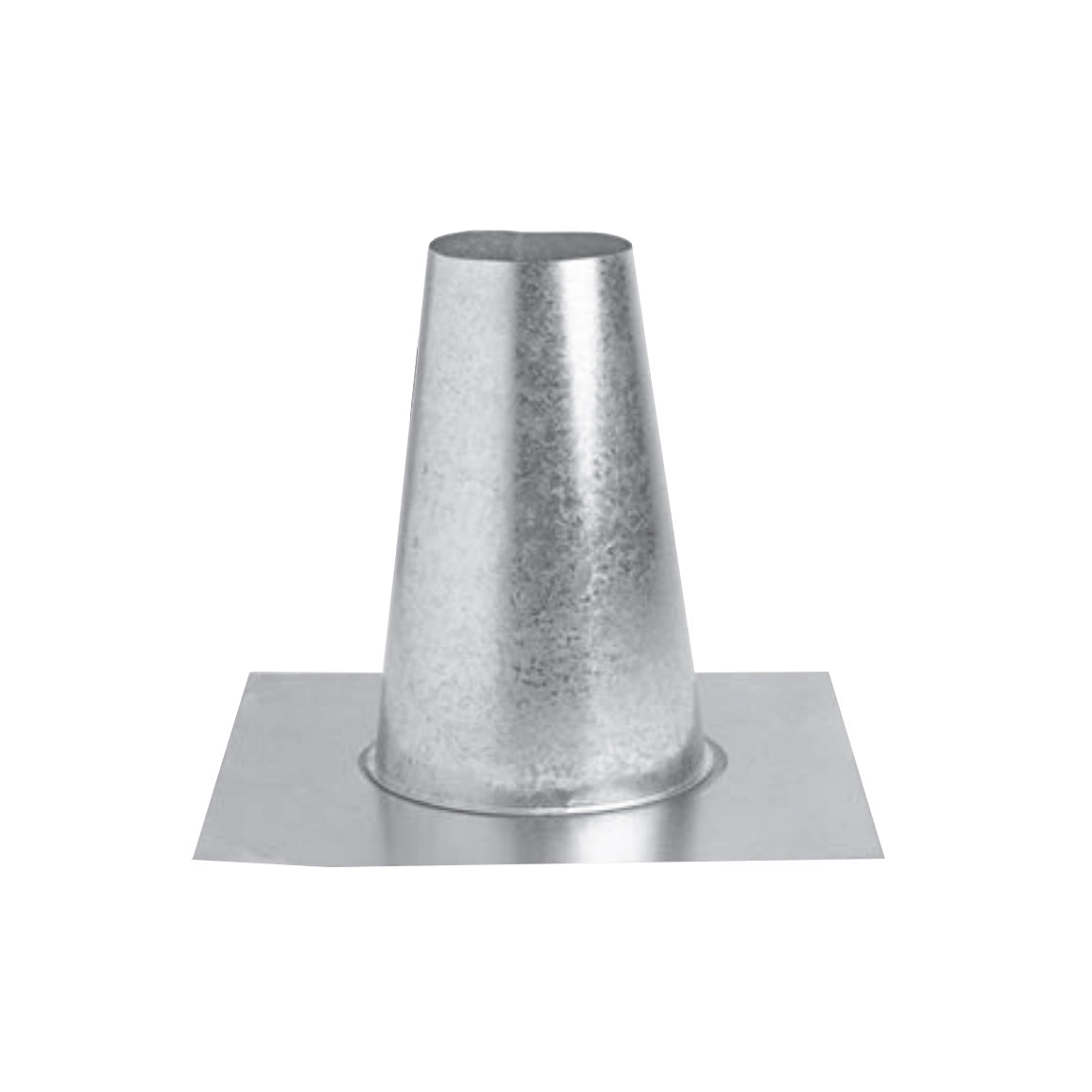

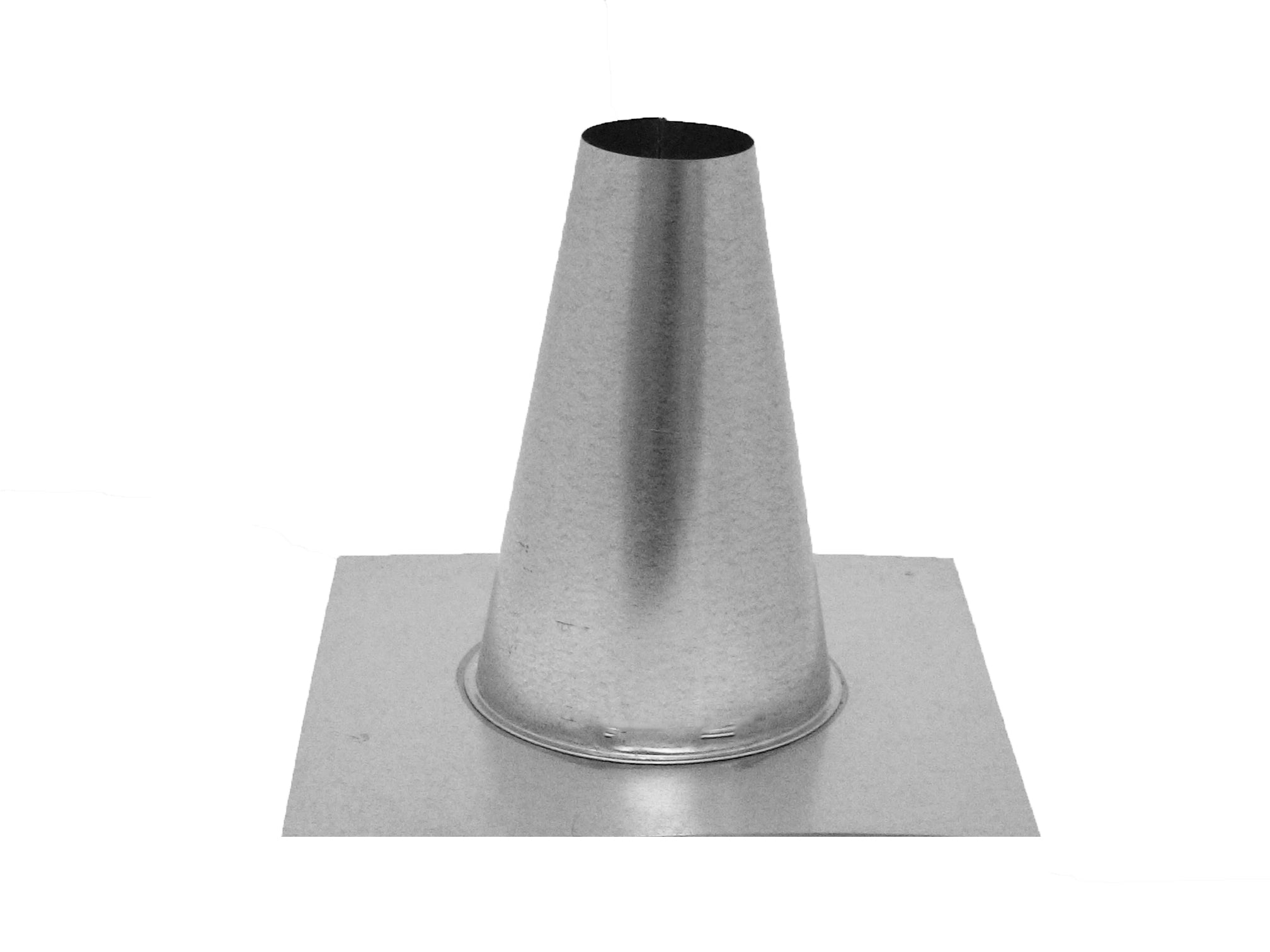

The Metal-Fab 3MFT tall cone flat flashing is suitable for category 1 gas furnaces, heaters, and boilers. Its double wall design offers close clearance to combustibles, making it ideal for both homes and commercial environments. The B-vent structure enables quick and safe installation with compatibility for major competing brands, ensuring a UL Listed connection.

• Eliminates sharp edges through flue and casing hemming.
• Tool-free assembly using positive twist lock.
• Supports 360-degree rotation for flexible installations.

Product Highlights

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 3MFT

Technical Specifications

• Pipe Size: 3 in
• Suitable For Use With: Gas furnaces, heaters, boilers
• Type: Tall Cone
• Finish: Galvanized
• Height: 11.25 in
• Length: 14.63 in
• Material: Sheet Metal
• Temperature Rating: 530 deg F
• Width: 14.63 in
• Application: For category I natural gas-burning or propane-fired appliances
• Listings/Standards: NFPA 54, NFPA 211, UL 441
• Clearances: 1 in minimum to combustibles for 3 in - 24 in
• Pitched: Flat Flashing

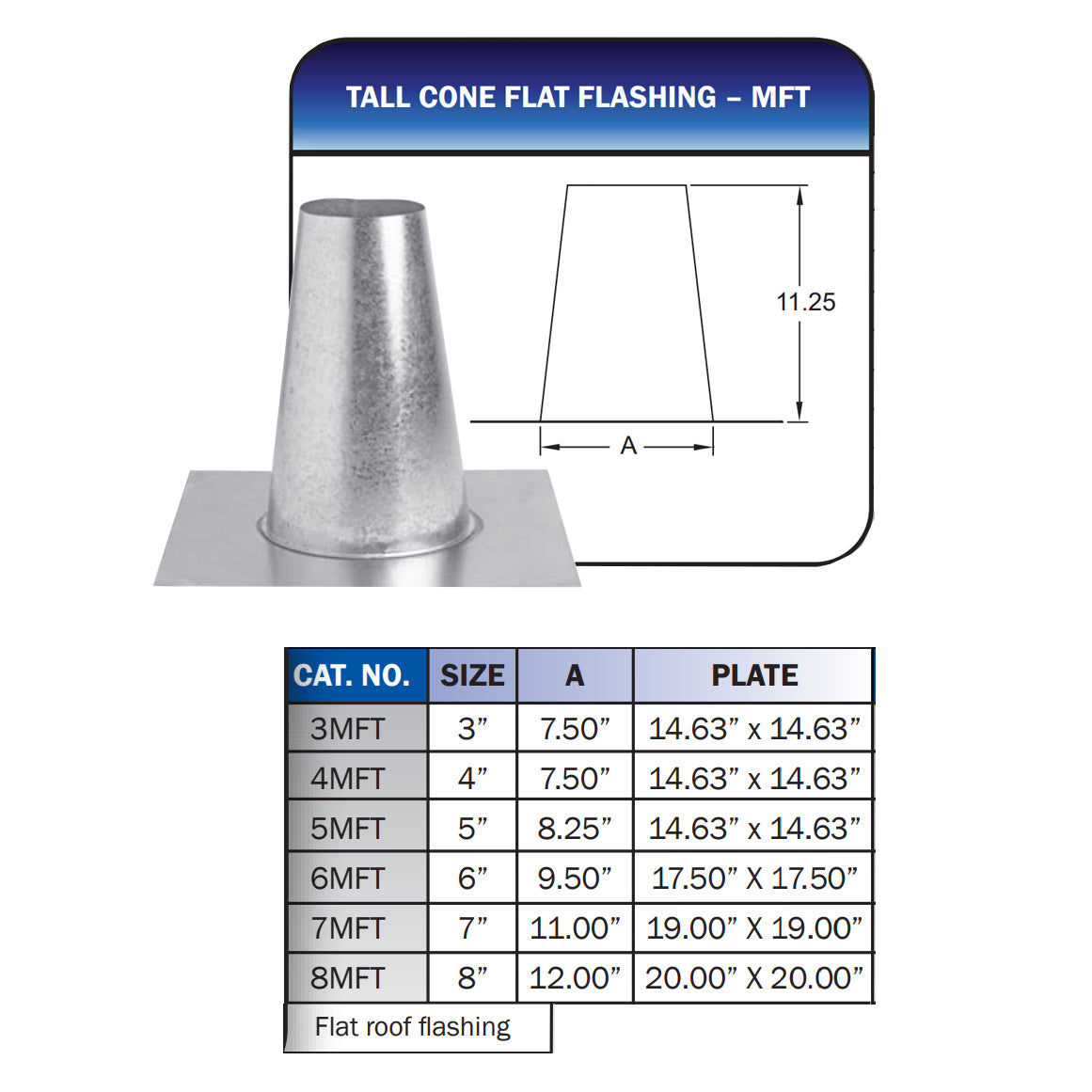

• Plate Size: 14.63 in x 14.63 in
• Vent Size: 3 in
• Overall Height: 11.75 in
• Cone Base Size: 7.5 in
• Overall Base Size: 14.625 in Length x 14.625 in Width
• Warranty: 1 Year Limited
