Metal-Fab 14MF 14-Inch Big Vent Standard Flashing

Product Description

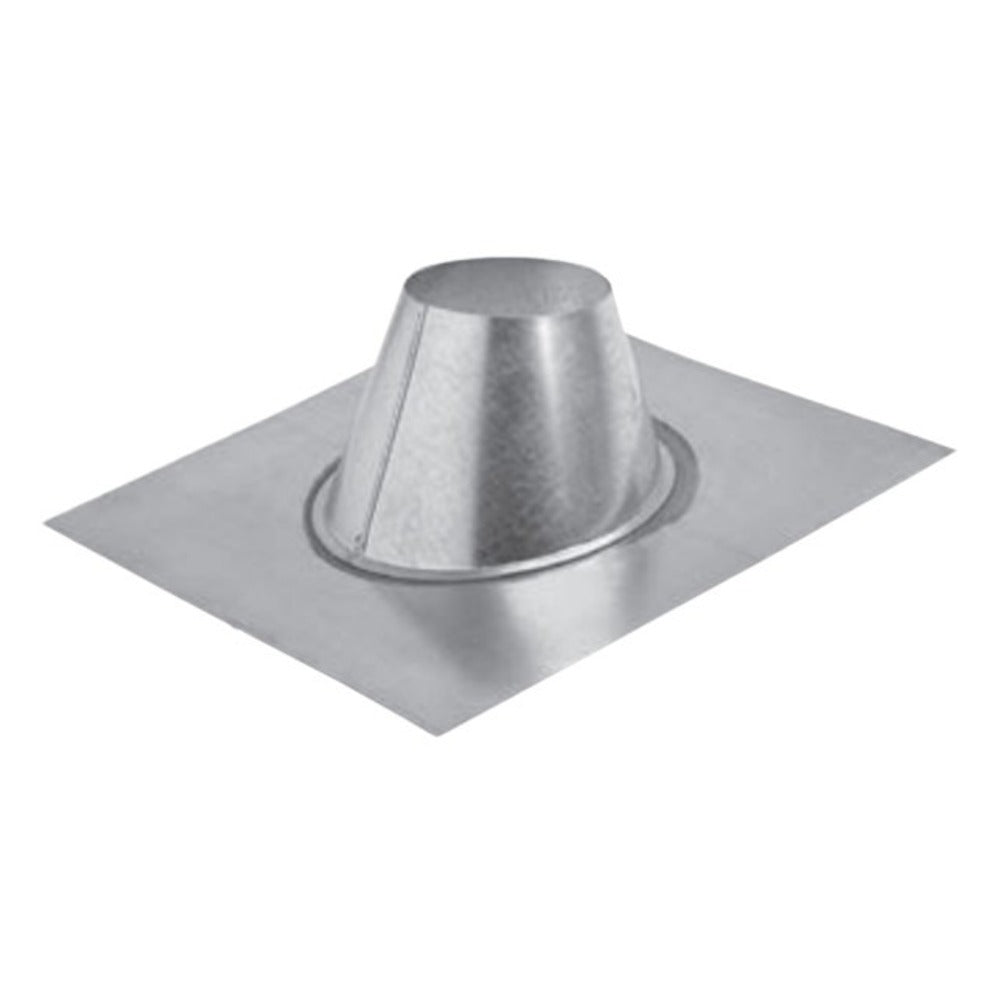

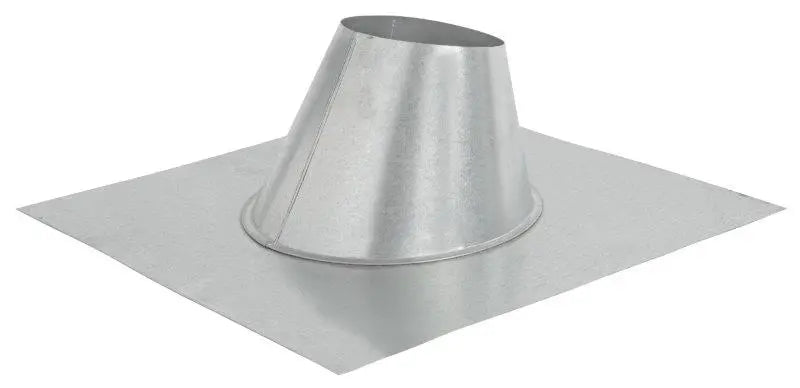

The Metal-Fab 14MF is a standard flashing for Type-B gas vents. This product is made from steel and suitable for roofs with a pitch of two-twelfths to five-twelfths. It is designed for use with category one gas appliances, including furnaces and boilers that operate at non-positive vent static pressure.

• Fitting for roofs with a pitch ranging from two-twelfths to five-twelfths.
• Twist-lock connection simplifies installation.
• UL Listed for safety and reliability.

Product Highlights

This flashing includes hemmed flues and casings to support efficient venting. Its twist-lock design takes the hassle out of installation by removing the need for additional screws.

Product Information

Standard Information

• Brand: Metal-Fab
• MPN: 14MF

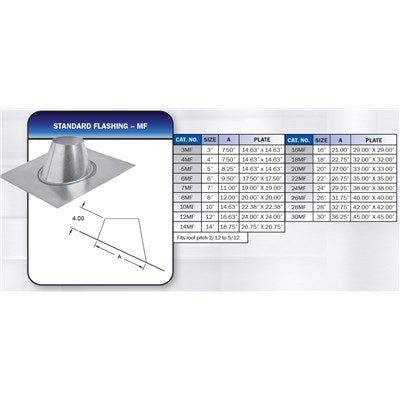

Technical Specifications

• Vent Type: B-Vent
• UL Listing: UL441
• Material: Galvanized Steel
• Diameter: 14 inches
• Minimum Pitch: 2
• Maximum Pitch: 5
• Flashing Length: 26.75 inches
• Flashing Width: 26.75 inches
