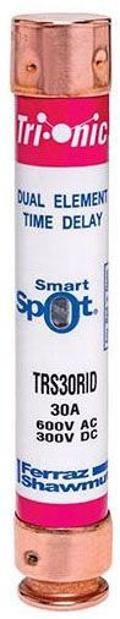

Mersen TRS30RID Fuse TRS-R Current Limiting Low Voltage 30 A

Product Description

The Mersen TRS30RID is a current limiting time delay fuse designed for overcurrent protection in various applications, including motors, transformers, and branch circuits. It operates at 30 amperes with a voltage rating of 600 volts AC and 300 volts DC, ensuring efficient protection against overcurrent situations.

• Time delay function for motor start-ups and inrush currents
• Current limiting to reduce peak let-thru current
• Rejection style design to minimize replacement errors

Product Highlights

This fuse provides reliable protection in industrial settings, with a durable fiberglass body and metal embossed data for traceability. It is ideal for applications like service entrance equipment and general-purpose equipment.

Product Information

Standard Information

• Brand: Mersen
• MPN: TRS30RID

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200 / 20 kA
• Body Size: 13/16 in Dia x 5 in L
• Class: RK5
• Mounting Type: Clip
• Terminal Type: Ferrule
• Material: Polyester
• Type of Indicators: SmartSpot
• Country of Origin: MX
