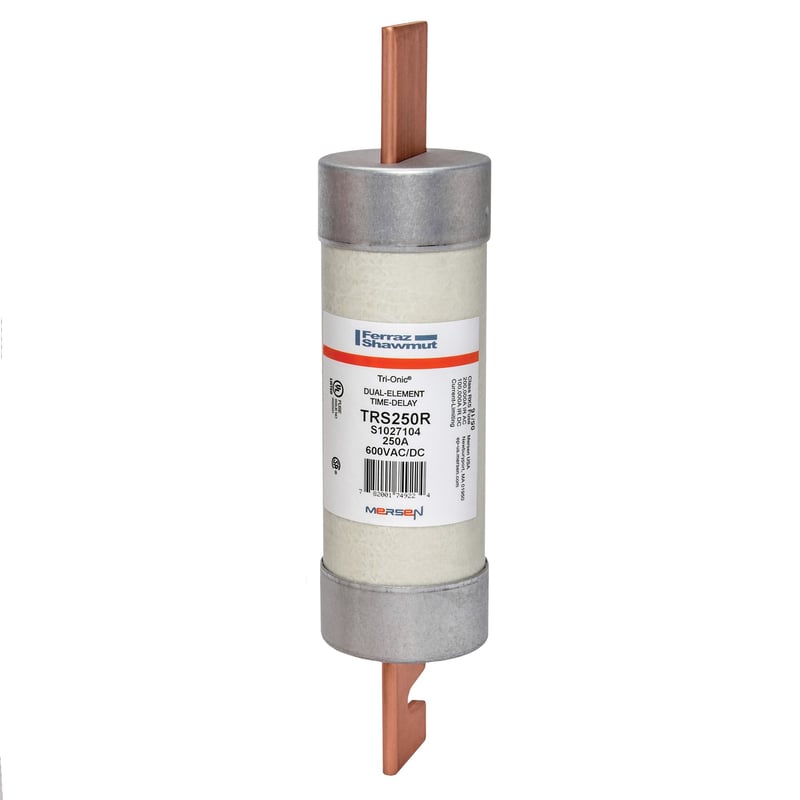

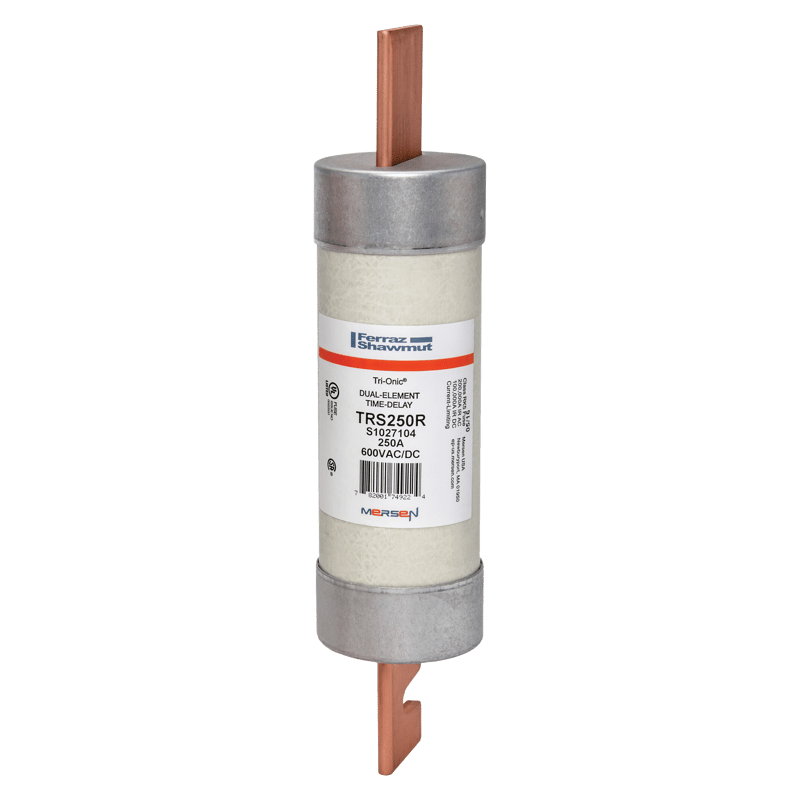

Mersen TRS250R Current Limiting Low Voltage Time Delay Fuse 250A 600 VAC/VDC

Product Description

The Mersen TRS250R is a 250 Amp, 600 Volt Class RK5 time delay fuse designed for overcurrent protection in various electrical applications. This fuse is ideal for safeguarding motors, transformers, and service entrance equipment. Its design includes features that effectively manage inrush currents during the startup of electrical systems.

• Time delay for handling inrush currents
• Current limiting for reduced peak let-thru current
• Rejection style design for safe and accurate installations

Product Highlights

This fuse provides reliable performance in demanding electrical environments. It meets UL and CSA standards for safety, making it a trusted choice among electricians and electrical engineers.

Product Information

Standard Information

• Brand: Mersen
• MPN: TRS250R

Technical Specifications

• Amperage Rating: 250 A
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/100 kA
• Body Type: Cylindrical
• Mounting Type: Clip
• Fuse Class: RK5
• Material: Polyester
• Size: 2-9/16 inches diameter x 11-5/8 inches length
