Mersen TRM3-2/10 Trm3-2/10 Fer 3.2 A

Product Description

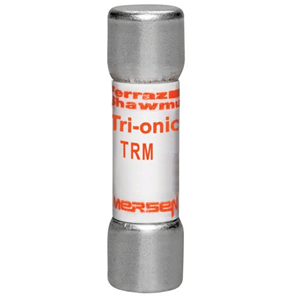

The Mersen TRM3-2/10 Tri-Onic TRM time delay midget fuse is rated 250 VAC and offered in 3.2 A. This fuse provides supplemental protection for small motors, transformers, and other high inrush loads. It features a time delay of 12 seconds at 200% rating and is suitable for various 250 volt applications, but not for branch circuit protection.

• Numerous ratings for a wide variety of applications
• Time-delay for circuits with high inrush current
• Tin-plated copper contact

Product Highlights

The Mersen TRM3-2/10 fuse is ideal for protecting small motors and transformers against high inrush currents.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TRM3-2/10
• Country of Origin: MX

Technical Specifications

• Class: Midget
• Series: TRM
• Material: Poly Tube
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Response Time: 8 s
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC
• Amperage Rating: 3.2 A
• Interrupt Rating: 10 kA
• Rejection/Non-Rejection: Non-Rejection
• Fuse Type: Time-delay
• AC Voltage: 250 Volt AC
• AC Voltage Interruption: 10kA I.R.
