Mersen TRM2 low-voltage general purpose fuse, TRM midget time-delay 250V 2A 13/32 in dia x 1-1/2 in L

Product Description

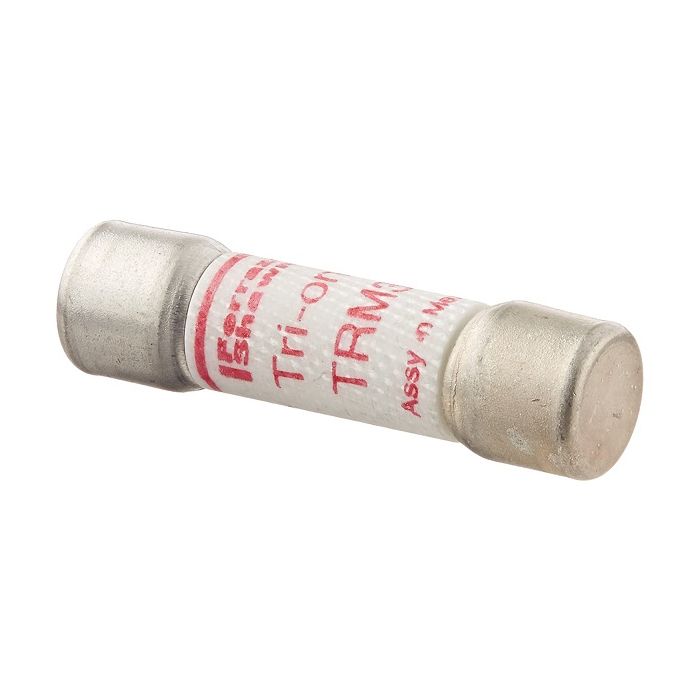

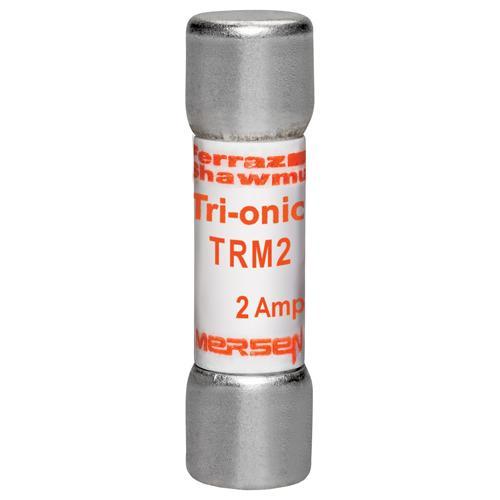

The MERSEN TRM2 is a low-voltage general purpose fuse, specifically a Tri-Onic TRM time-delay midget fuse. Rated for 250 volts AC and 2 amps, it provides supplemental protection for small motors, small transformers, lighting circuits, and control circuits. This fuse features a 12-second time-delay at 200% rating, making it suitable for applications with high inrush current. It is UL Listed to standard 248-14 and CSA certified to standard C22.2 No. 248.14. Its cylindrical body measures 13/32 inches in diameter by 1-1/2 inches in length.

• Numerous ratings for a wide variety of applications
• 250 V AC rating in all sizes
• Time-delay for circuits with high inrush current

Product Highlights

Provides supplemental protection for small motors, transformers, and control circuits with 12-second time-delay for high inrush currents.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TRM2
• Country of Origin: MX

Technical Specifications

• Type: Low Voltage Fuse
• UNSPSC Code: 39121600
• Standards: UL Listed to standard 248-14 File E33925, CSA certified to standard C22.2 No. 248.14, RoHS Compliant
• Applications: Ideal for small motors, small transformers, lightning circuits, and control circuits
• Series: TRM
• Rejection Type: Non-Rejection
• Amperage Rating: 2 A
• Voltage Rating: 250 VAC
• Interrupting Rating: 10 kA
• Class: Midget
• Response Time: 2.25 s
• Terminal Type: Ferrule
• Mounting Type: Clip
• Body Type: Cylindrical
• Body Material: Poly Tube
• Sub Brand: Tri-Onic
• Frequency: 50/60 Hz
• AC/DC: AC
• Speed/Characteristic: Time Delay
• Terminal Material: Tin-Plated Copper
• Insulating Material: GMG
• Time Delay at 200% Rating: 12 Seconds
