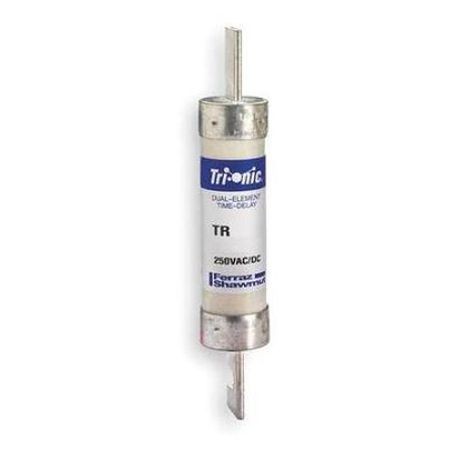

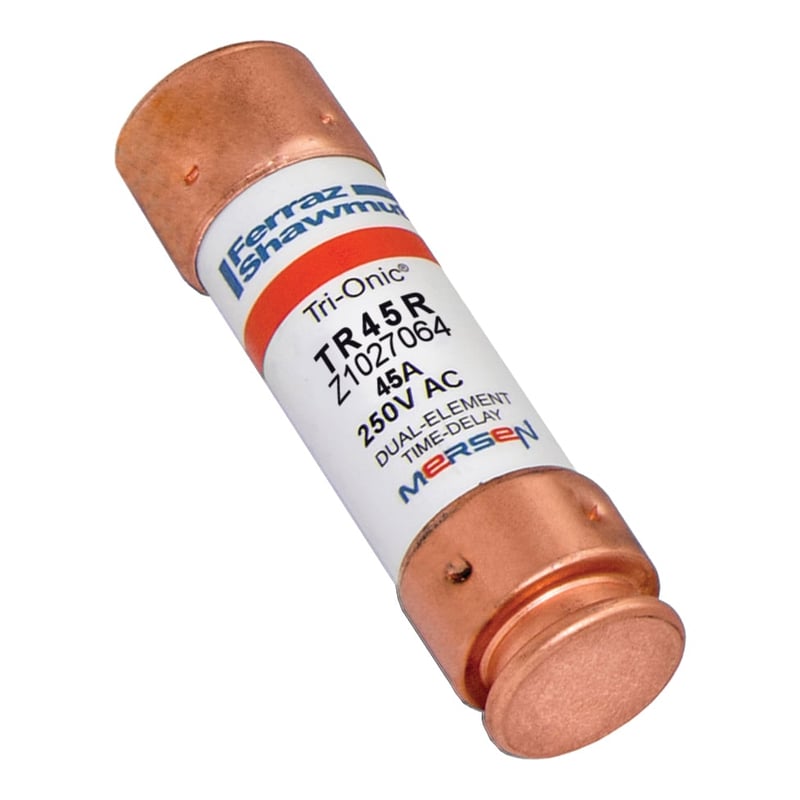

Mersen TR45R 250V 45A 3X13/16 RK5 TD F

Product Description

The Mersen TR45R is a current limiting low voltage time delay fuse designed for high-performance applications. It operates at a voltage rating of 250 VAC and features a 45 A amperage rating. This fuse is ideal for use in motor circuits, transformers, and service entrance equipment.

• Amperage Rating: 45 A
• Voltage Rating: 250 VAC/VDC
• Interrupt Rating: 200/20 kA

Product Highlights

This fuse includes a cylindrical body, ferrule terminals, and is designed for clip mounting. It provides motor start-up protection without nuisance opening during inrush currents. The TR45R is RoHS compliant and meets UL and CSA standards.

Product Information

Standard Information

• Manufacturer: Mersen
• Fuse Class: RK5

Technical Specifications

• Body Type: Fiberglass
• Element: Dual
• Material: Polyester
• Size: 3 inches length by 0.8125 inches diameter
• Mounting Type: Clip
• Terminal Type: Ferrule
• Compliance: UL 248-12, CSA C22.2 No. 248.12
• GTIN: 00782001747923
