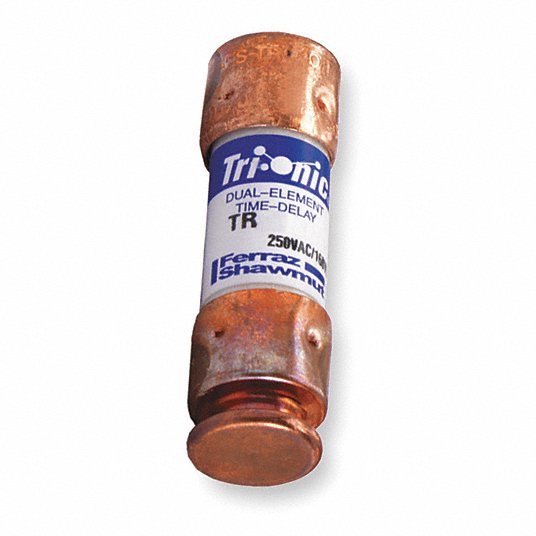

Mersen TR30R Time Delay Class RKF Fuse 250V 30A

Product Description

The Mersen TR30R is a current limiting low voltage time delay fuse designed for overcurrent protection. It features a dual element construction and is rated for 30 A, 250 VAC/160 VDC. This RK5 class fuse is engineered to safely handle harmless starting currents and inrush currents in motors, transformers, and branch circuits, preventing nuisance openings. Its rejection-style design helps prevent replacement errors.

• Current limiting low voltage time delay fuse for robust protection.
• Engineered for overcurrent protection in motors, transformers, and branch circuits.
• Time delay characteristics manage starting and inrush currents effectively.

Product Highlights

This Mersen Tri-Onic TR30R fuse is a Class RK5, current-limiting, time-delay fuse with a 250 VAC/160 VDC rating and 30A amperage.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TR30R
• Country of Origin: Mexico

Technical Specifications

• UNSPSC Code: 39121600
• Type: Current Limiting Low Voltage Time Delay Fuse
• Standards: RoHS Compliant, UL 248-12, UL File No. E2137, CSA C22.2 File No.248.12
• Fuse Class: RK5
• Series: TR-R
• Element Type: Dual
• Body Material: Polyester
• Body Dimensions: 9/16 inch Dia x 2 inch L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC/160 VDC
• Amperage Rating: 30 A
• Interrupt Rating: 200 kA AC / 20 kA DC
• Rejection Style: Rejection
• Visual Indication: Non-Indicating
• Sub Brand: Tri-Onic
• Application: Motor circuits, Mains, Feeders, Branch circuits, Transformers, Service entrance equipment, General-purpose equipment
• Speed/Characteristic: Time-Delay
• UPC: 782001747862
• Frequency: 50/60 Hz
• RoHS Compliant: Yes
• Terminal Material: Copper
• Weight: 0.037 lb
• Product Group: Low Voltage UL/CSA Fuses
• Equivalent Fuse Series: FLRN, FRN-R, TR-R
• Compatible Fuse Block Series: 2HKRFB
• Alternate MPN: W1027061
• Primary Type: Single Use Fuse
