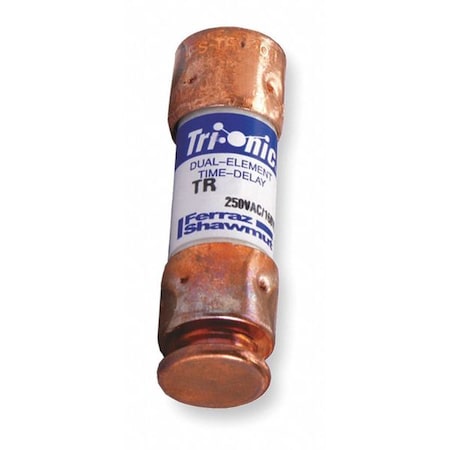

Mersen TR3-1/2R Fuse 3-1/2A

Product Description

The MERSEN TR3-1/2R is a Tri-Onic TR-R series current limiting time delay fuse designed for overcurrent protection of motors, transformers, service entrance equipment, feeders, and branch circuits. The time delay characteristics safely handle harmless starting currents and inrush currents. It has a cylindrical body made of polyester.

• Time delay for motor start-ups and transformer inrush currents without nuisance opening
• Current limiting for low peak let-thru current
• Rejection style design prevents replacement errors when used with recommended fuse blocks

Product Highlights

This Class RK5 fuse has a voltage rating of 250 VAC/160 VDC and an interrupt rating of 200/20 kA. It features a ferrule terminal and clip mounting.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: TR3-1/2R
• Country of Origin: MX

Technical Specifications

• Class: RK5
• Series: TR-R
• Element: Dual
• Material: Polyester
• Body Size: 9/16 in Dia x 2 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC/160 VDC
• Amperage Rating: 3-1/2A
• Interrupt Rating: 200kA at 250V AC, 20kA at 160V DC
• Rejection / Nonrejection: Rejection
• Indicating / Nonindicating: Non-Indicating
• Fuse Amps [Specifications]: 3-1/2A
• Fuse Size [Specifications]: 2" L x 9/16" dia
• Standards [Specifications]: CSA, UL
• Fuse Speed [Specifications]: Time Delay
• Connection Type [Specifications]: Ferrule
• AC Voltage Rating [Specifications]: 250V AC
• DC Voltage Rating [Specifications]: 160V DC
• Equivalent Series [Specifications]: ECNR, FLNR, FRN-R, TR-R
• Visual Indication [Specifications]: Nonindicating
• Fuse Voltage Rating [Specifications]: 250VAC/160VDC
• Fits Fuse Block Style [Specifications]: Rejection
• Fuse Interrupt Rating [Specifications]: 200kA at 250VAC, 20kA at 160VDC
• Length (Straight Wireway) [Specifications]: 2 in
• Compatible Fuse Block Series [Specifications]: 2HKRFB
• Alternate Mfr Part Number: Q216237
• Brand: Mersen
• Current Rating: 3.5 A
• Manufacturer Part Number: TR3-1/2R
• Numeric ID: 2510416
• Length [Specifications]: 2"
• Diameter [Specifications]: 9/16"
• Weight [Specifications]: 0.05 lb
