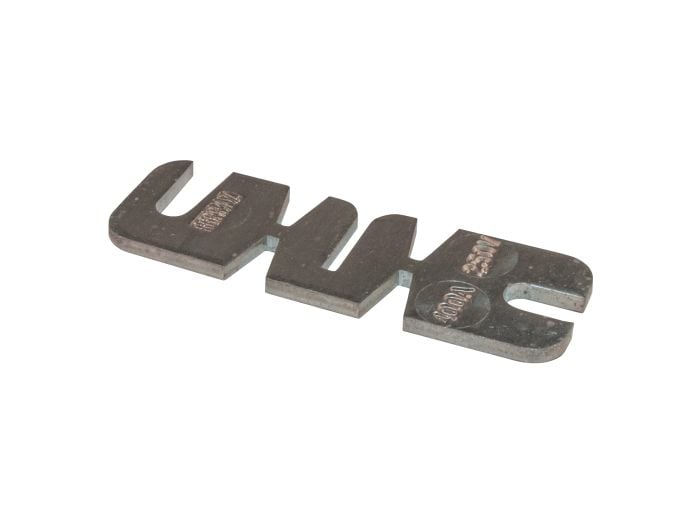

Mersen RL400 Fuse RF - Class H - Fast-Acting Link 250VAC 400A

Product Description

The MERSEN RL400 is a Fuse RF - Class H - Fast-Acting Link 250VAC 400A. These general purpose Class H renewable fuses are suitable for application where available short-circuit currents do not exceed 10,000 amperes. For replacement fuse links select RL series die-cut zinc replacement links from 2 to 600 amperes in 31 ratings.

• Fast-Acting
• Suitable for application where available short-circuit currents do not exceed 10,000 amperes
• Class H

Product Highlights

The MERSEN RL400 fuse is a Class H fast-acting link suitable for applications with short-circuit currents up to 10,000 amperes.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RL400
• Country of Origin: US

Technical Specifications

• Item number: RL400
• Description: Fuse RF - Class H - Fast-Acting Link 250VAC 400A
• Rated voltage AC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 400 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Product Width: 1.05 in
• Product Length: 3.38 in
• Product group: Low Voltage UL/CSA Fuses
• Brand: Mersen
• Model: RL400
• MPN: RL400
• Amps: 400
• Type: Fuse Link
• Class: H
• Volts AC: 250
• Interrupt Rating DC: 10 kA
• Manufacturer Part Number: RL400
• Manufacturer: Mersen
• Product Series: RL
• Family Series: Mersen Fuses, RL Series
• Fuse Type: Cartridge
• AC Voltage: 250 VAC
• Characteristic: Fast Acting
• Trip Indicator: No
• Alarm Contacts: No
• Approvals: CSA, UL
• Fuse Type (UL): Class H
• Fuse Amperage Rating: 400 Amp
• Component: Fuse
• Fuse Voltage Rating: 250 Volt
• Category: Circuit Protection
• Electrical, Specialty Fuses: Electrical, Industrial
• Voltage Rating - AC: 250 VAC
• Response Time: Fast Blow
• Series: RF
• Applications: Electrical, Industrial
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 10kA
• Package / Case: Cylindrical, Blade Terminals
• Current Rating (Amps): 400A
