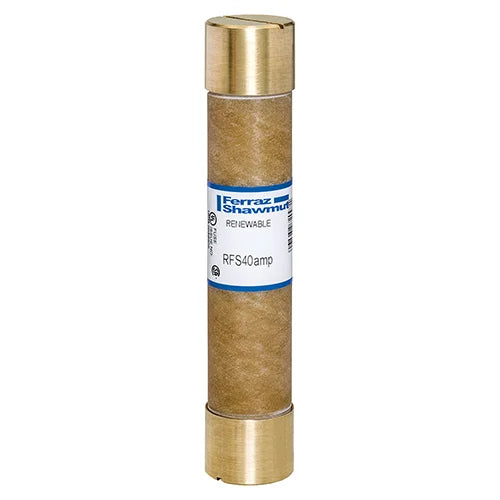

Mersen RFS40 Fuse Class H 600VAC 40A Ferrule

Product Description

The Mersen RFS40 is a general-purpose Class H renewable fuse suitable for applications where available short-circuit currents do not exceed 10,000 amperes. It features knurled bushings for easy disassembly and rugged construction for maximum service life. For replacement fuse links, select RLS series die-cut zinc replacement links from 3 to 600 amperes in 30 ratings.

• Class H fuse
• Fast-Acting
• 600VAC, 40A

Product Highlights

The Mersen RFS40 is a Class H renewable fuse with a 600VAC voltage rating and a 40A current rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RFS40

Technical Specifications

• Item number: RFS40
• EAN/UPC Code: 068938720919
• Rated voltage AC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 40 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• Connection/Terminal Material: Brass
• Connection/Terminal Type: Ferrule
• Product Diameter: 1.06 in
• Product Length: 5.5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: FWGE
• Amps: 40
• Volts AC: 600
• Class: H
• Type: Renewable
• Interrupting Rating: 10,000 AIC @ 600VAC
• Brand: Mersen
• Current Rating: 40 A
• Manufacturer Part Number: RFS40
• Primary Type: Renewable Fuses
• Series: RF/RFS Series
• Termination: Cartridge
• UPC Code: 0068938720919
• Voltage Rating: 600 V
