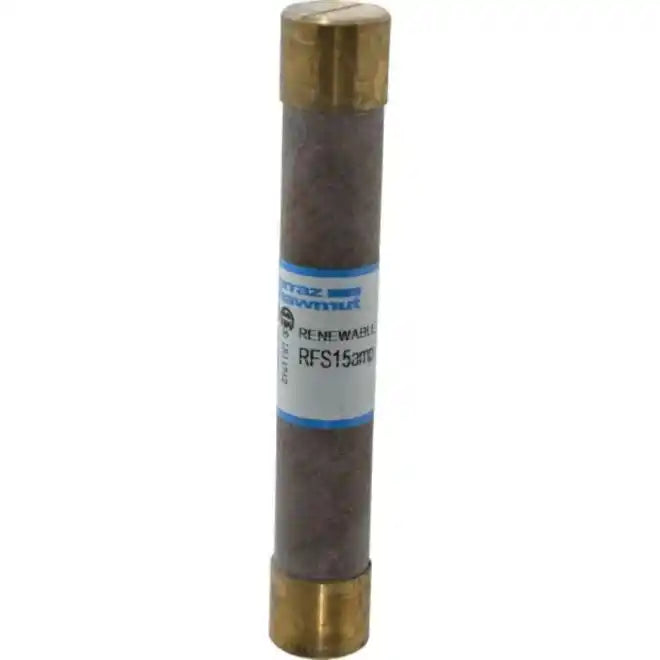

Mersen RFS15 Fuserenewable 600V

Product Description

The MERSEN RFS15 is a low voltage UL power fuse with a Class H rating. This fast-acting fuse has a voltage rating of 600 VAC and a current rating of 15 Ampere, with an interrupting rating of 10 Kiloampere. It is designed for general purpose loads where short-circuit currents do not exceed 10,000 amperes.

• Low Voltage UL Power Fuse
• Fast Acting
• Cylindrical Body Style

Product Highlights

The MERSEN RFS15 fuse provides reliable protection for general purpose applications with a fast-acting design and a 10kA interrupting rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RFS15
• Country of Origin: US

Technical Specifications

• Type: Class H
• Voltage Rating: 600 VAC
• Current Rating: 15 Ampere
• Interrupting Rating: 10 Kiloampere
• Terminal Type: Ferrule
• Diameter: 13/16 Inch
• Length: 5 Inch
• Approval: UL 248-7, CSA C22.2
• Body Style: Cylindrical
• Body Material: FWGE
• Contact Material: Brass
• Mounting Type: Clip
• Application: General Purpose Loads
• Characteristics: Fast Acting
• Brand: Mersen
• Manufacturer Part Number: RFS15
• Series: RF/RFS Series
• Termination: Cartridge
• UPC Code: 0068938720797
• Frequency: 50/60 Hz
• Fuse Class: H
• Connection Type: Ferrule
• Rated Voltage AC: 600VAC
• Rated Current: 15A
• Speed/Characteristic: Fast-Acting
• Body/Insulating Material: FWGE
