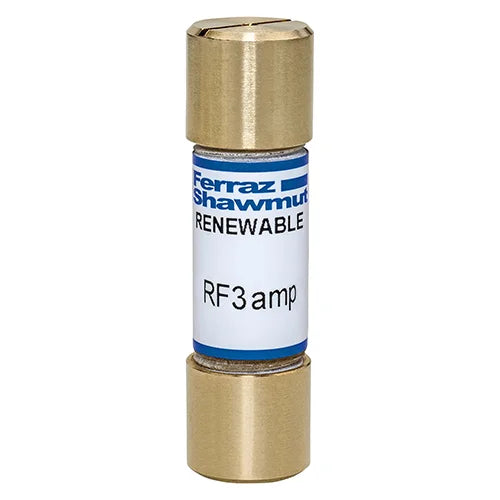

Mersen RF3 Fuse Class H Fast-Acting 250VAC 3A Ferrule

Product Description

The MERSEN RF3 is a general-purpose Class H renewable fuse suitable for applications where available short-circuit currents do not exceed 10,000 amperes. It features a fast-acting speed/characteristic and ferrule connection/terminal type. For replacement fuse links, select RL series die-cut zinc replacement links from 2 to 600 amperes in 31 ratings.

• Fuse RF
• Class H
• Fast-Acting

Product Highlights

The MERSEN RF3 fuse is ideal for general purpose loads with short circuit currents of 10000 A or less.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: RF3
• Country of Origin: MX

Technical Specifications

• Item number: RF3
• EAN/UPC Code: 068938720032
• Rated voltage AC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 3 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 10 kA
• Connection/Terminal Material: Brass
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: FWGE
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: H212734
• Brand: Mersen
• Current Rating: 3 A
• Manufacturer Part Number: RF3
• Primary Type: Renewable Fuses
• Series: RF/RFS Series
• Termination: Cartridge
• Voltage Rating: 250 V
• Body Type: Cylindrical
• Interrupt Rating: 10 kA
• Terminal Type: Ferrule
• Type: Fast Acting Low Voltage North American Style
• Country of origin: MX
• Manufacturer Name: MERSEN
• UNSPSC: 39121627
• UPC: 00068938720032
• Approval: UL 248-7, CSA C22.2
• Characteristics: Fast Acting
• Diameter: 9/16 Inch
• Applications: Electrical, Industrial
• Packaging: Bulk
• Part Status: Active
• Approval Agency: CSA, UL
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 10kA
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Size / Dimension: 0.551" Dia x 2.008" L (14.00mm x 51.00mm)
