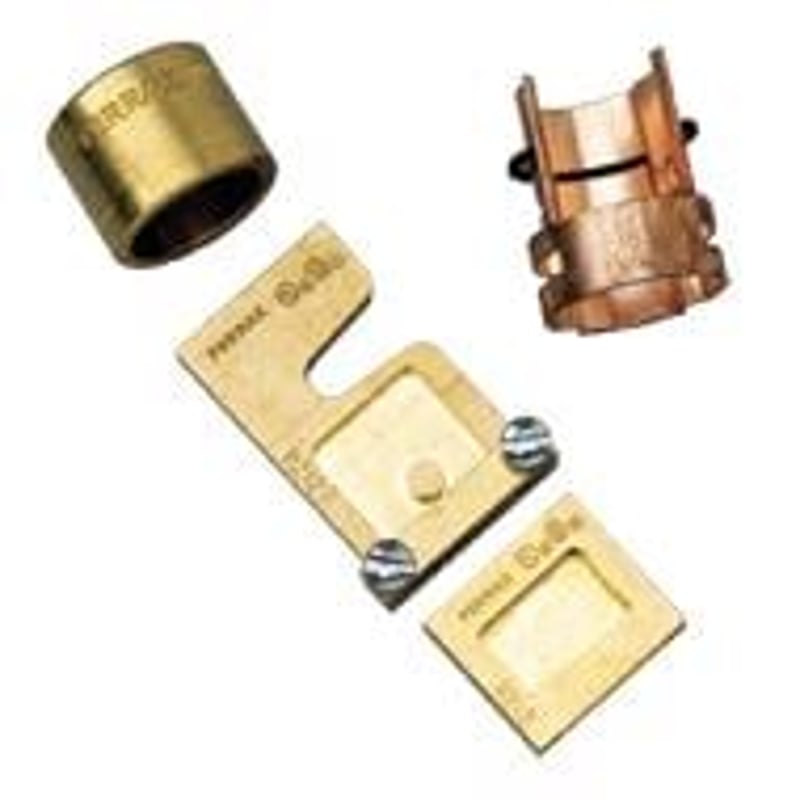

Mersen R262 200 To 60 Amp Fuse Reducer

Product Description

The Mersen R262 200 To 60 Amp Fuse Reducer is designed to allow the use of lower-rated fuses in equipment that has clips rated for higher amperages. This helps to improve circuit protection through the use of closer rated time-delay fuses. For instance, one-time or renewable fuses feeding a motor can be replaced with fuses that are sized closer to the motor's nameplate current. Non-rejection reducers permit Class H, K, or R fuses to fit Class H or K clips, while rejection types only allow Class R fuses to fit Class R clips or Class J fuses to fit Class J clips. Note that Class J fuse reducers are not suitable for bolt-on applications.

• Standard ratings of 250V and 600V Class H, K, and R - UL Listed and CSA Certified.
• Compatible with 30 to 600 Amps.
• Practical for improving circuit protection in existing equipment.

Product Highlights

Enhance circuit safety with reliable fuse reducers from Mersen, ensuring compatibility with existing clips and improving overall protection.

Product Information

Standard Information

• Brand: Mersen
• Part Number: R262

Technical Specifications

• Voltage Rating: 600V
• Current Rating: 200 to 60 Amps
• Type: Fuse Reducers
• Class: R
• UPC: 78200175239
• UNSPSC: 39121627
• Standard: UL and CSA certifications
• Application: Allows lower-rated fuses in higher-rated clips
