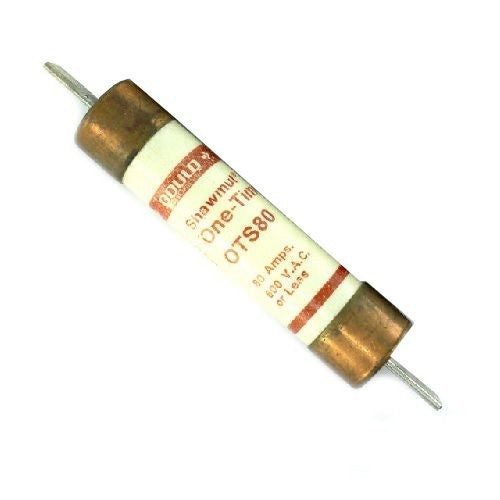

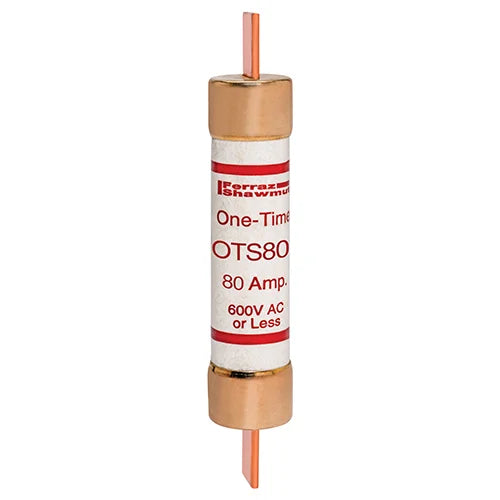

Mersen OTS80 Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 80A Blade

Product Description

The MERSEN OTS80 is a Fuse OTS - Class K5 - Fast-Acting fuse, designed for 600VAC and 300VDC applications with an 80A blade. This Amp-Trap fuse provides reliable protection for feeders, branch circuits, resistive heating, and residential/small commercial installations. It safely interrupts short circuit currents up to 50,000 amperes.

• Easy to read imprint label for quick recognition and replacement
• Low cost for high protection value
• Safely interrupt available short circuit currents up to 50,000 amperes in all ratings

Product Highlights

The MERSEN OTS80 fuse offers fast-acting, low-cost protection with a high interrupting rating, suitable for various applications.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTS80
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: OTS80
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 80 A
• Application: Feeders Branch circuits Resistive heating Residential and small commercial installations
• Connection: Blade
• Interrupt Rating: 50 kA
• Mounting: Clip
• Special Features: Easy to read imprint label for quick recognition and replacement Low cost for high protection value
• Standard: UL Listed to Standard 248-9 File E2137 CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design use OTN 15-60.) Self-certified for DC per UL248
• UPC: 782001700843
• GTIN: 00782001700843
• Item Type: Class K5
• Voltage Rating: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 1.31 in
• Product Length: 7.88 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• Material: Paper
• Body Style: Cylindrical
• Catalog ID: GOUOTS80
• Series: OTS
• Terminal Type: Blade
• Body Size: 1-5/16 in Dia x 7-7/8 in L
