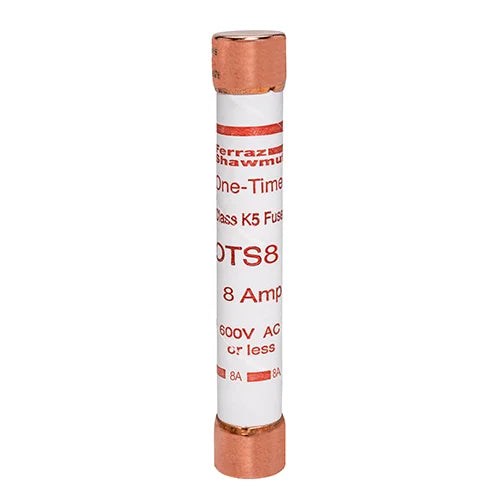

Mersen OTS8 Fuse, Class K5, 8A

Product Description

The Mersen OTS8 is a Class K5 fuse designed for general purpose use. This one-time fuse provides low-cost protection for feeder and branch circuits, effectively safeguarding lighting, heating, and other non-motor loads. It can safely interrupt short circuit currents up to 50,000 amperes.

• UL Class K5 Fuse
• One Time fuse
• Interrupts short circuit currents up to 50,000 amperes

Product Highlights

Provides reliable, low-cost protection for residential and commercial installations. Ideal for circuits serving non-inductive loads.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTS8

Technical Specifications

• AC Voltage Rating: 600 V
• DC Voltage Rating: 300 V
• Interrupting Rating: 50,000 AIC @ 600VAC
• DC Interrupting Rating: 20,000 AIC @ 300VDC
• Physical Size: 13/16" x 5"
• Amperage: 8 A
• Description: Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 8A Ferrule Amp-Trap
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.81 in
• Product Length: 5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: Paper
• UNSPSC Code: 39120000
• Brand: Mersen
• Breaking Capacity: 50 kA
• Current Rating: 8 A
• For Use With: Fuses
• Manufacturer Part Number: OTS8
• Series: OTS Series
• Speed: Fast Acting sec
• Voltage Rating: 600 V
• Interrupt rating: 50 kA
• Shape: Cartridge Fuses
• Approvals: UL, CSA, RoHS
• Substitute parts: Bussmann NOS, Littelfuse NLS
• Dimensions: 0.81" Dia x 5" L (20.57x127mm)
