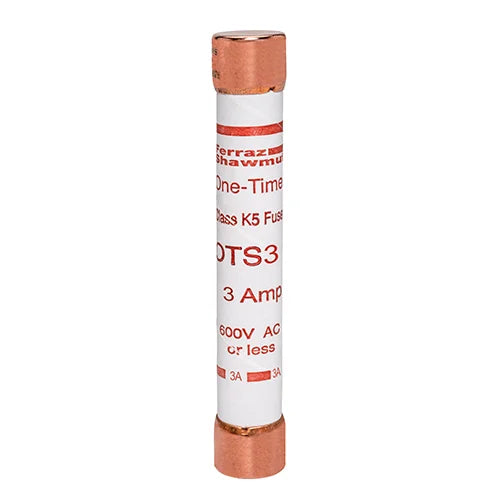

Mersen OTS3 Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 3A Ferrule

Product Description

The MERSEN OTS3 is a Fuse OTS - Class K5 - Fast-Acting fuse designed for 600VAC and 300VDC applications at 3A with a ferrule connection. These one-time OTS general purpose fuses provide low-cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. They safely interrupt available short circuit currents up to 50,000 amperes in all ratings.

• One-Time OTS general purpose fuses
• Low cost protection for feeder and branch-circuits
• Safely interrupt available short circuit currents up to 50,000 amperes in all ratings

Product Highlights

The MERSEN OTS3 fuse provides reliable, fast-acting protection for a variety of general purpose applications with a 50kA breaking capacity.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTS3

Technical Specifications

• Item number: OTS3
• Description: Fuse OTS - Class K5 - Fast-Acting 600VAC 300VDC 3A Ferrule Amp-Trap®
• EAN/UPC Code: 782001700621
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 3 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.81 in
• Product Length: 5 in
• Body/Insulating Material: Paper
