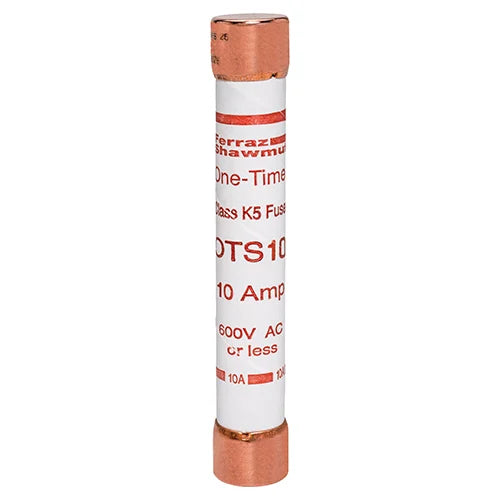

Mersen OTS10 Ots Fer 10A

Product Description

The MERSEN OTS10 is a one-time OTS general-purpose fuse that provides low-cost protection for feeder and branch circuits serving lighting, heating, and other non-motor loads. This fast-acting, non-rejection fuse safely interrupts available short circuit currents up to 50 kA. It is UL Listed and CSA Certified.

• Easy-to-read imprint label for quick recognition and replacement
• Low cost for high protection value
• Versatile

Product Highlights

Provides low-cost protection for various circuits with a high interrupting rating and easy identification.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTS10
• Country of Origin: Mexico

Technical Specifications

• Class: K5
• Series: OTS
• Material: Paper
• Body Size: 13/16 in Dia x 5 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 600/300 VAC/VDC
• Amperage Rating: 10 A
• Interrupt Rating: 50/20 kA
• Country of Origin: MX
• Rejection/Non-Rejection: Non-Rejection
• Manufacturer: Mersen
• Sub Brand: Amp-Trap®
• Made in USA: No
• Application: Feeders Branch circuits Resistive heating Residential and small commercial installations
• Connection: Ferrule
• Special Features: Easy to read imprint label for quick recognition and replacement Low cost for high protection value
• Standard: UL Listed to Standard 248-9 File E2137 CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design use OTN 15-60.) Self-certified for DC per UL248
• UPC: 782001700690
• GTIN: 00782001700690
• Item Type: Class K5
• Size: 5 x 0.81
• Speed: Fast Acting
• Length: 5 in
• Diameter: 0.81 in
• Fuse Amps: 10A
• Fuse Size: 5 in L x 0.81 in D
• AC Voltage Rating: 600V
• DC Voltage Rating: 300V DC
• Connection Material: Copper
• Fuse Voltage Rating: 600V
• Frequency (Hz): 50/60 Hz
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class K5
• Speed/Characteristic: Fast-Acting
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Copper
• Product Diameter: 0.81 in
• Product Length: 5 in
• Product Weight: 0.11 lb
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: K216232
• Breaking Capacity: 50 kA
• Current Rating: 10 A
• Manufacturer Part Number: OTS10
• Primary Type: Single Use Fuses
• OTS Series: OTS Series
• Terminal Material: Copper
• Unit of Measure: EA
