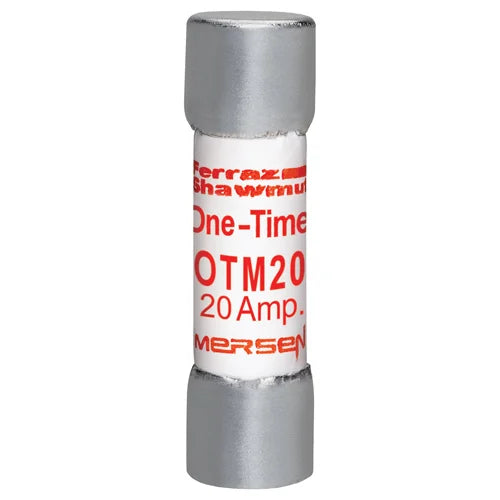

Mersen OTM20 Fuse Midget Fast Acting 250VAC 20A

Product Description

The Mersen OTM20 is a midget, fast-acting fuse designed for supplemental protection of circuits up to 250VAC and 10kA. This fuse provides low-cost protection for general purpose lighting, heating, and control circuits where time-delay is not required. It has dimensions of 1.5 x 0.41 inches and utilizes a ferrule connection for clip mounting.

• Fast-Acting
• Low-cost protection
• 250VAC general purpose protection

Product Highlights

The Mersen OTM20 midget fuse offers fast-acting, low-cost protection for 250VAC circuits, ideal for lighting, heating, and control applications.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTM20
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: OTM20
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 20
• Application: Supplemental protection of circuits up to 250VAC and 10kA
• Connection: Ferrule
• Interrupt Rating: 10 KA
• Mounting: Clip
• Special Features: Low cost and fully rated for economy without compromise Can be used with UltraSafe™ fuse holders 1 1/2" x 13/32" (10 mm x 38 mm) dimensions
• Standard: UL Listed to standard 248-14, File E33925 CSA Certified to Standard C22.2 No. 248.14
• Item Type: Midget Fuses
• Size: 1.5 x 0.41
• Voltage Rating: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 20 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Midget
• Speed/Characteristic: Fast-Acting
• AC Max I.R./Breaking Capacity: I1: 10 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: Paper
• Amperage: 20
• Voltage: 250
• Voltage Type: AC
• Poles: 1
• Frame Type: OTM
• Current Rating: 20 A
• Manufacturer Part Number: OTM20
• Series: OTM Series
