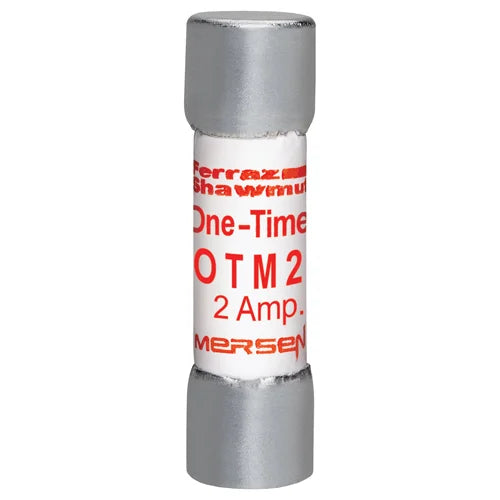

Mersen OTM2 Fuse Midget Fast-Acting 2A

Product Description

The Mersen OTM2 fuse is a midget, fast-acting fuse designed for supplemental protection of circuits up to 250VAC and 10kA. This fuse provides low-cost protection for general purpose lighting, heating, and control circuits where time-delay is not required. It features ferrule connections and can be used with UltraSafe fuse holders.

• Low cost and fully rated for economy without compromise
• Tin-plated Copper contact
• Can be used with UltraSafe™ fuse holders

Product Highlights

Mersen OTM2 midget fuses offer reliable, fast-acting protection for various 250VAC applications, ensuring safety and economy.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OTM2
• Country of Origin: Mexico

Technical Specifications

• Type: FUSES
• Fuse Types: LOW VOLTAGE
• Catalog Number: OTM2
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 2 A
• Application: Supplemental protection of circuits up to 250VAC and 10kA
• Connection: Ferrule
• Interrupt Rating: 10 kA
• Mounting: Clip
• Special Features: Low cost and fully rated for economy without compromise Can be used with UltraSafe™ fuse holders 1 1/2" x 13/32" (10 mm x 38 mm) dimensions
• Standard: UL Listed to standard 248-14, File E33925 CSA Certified to Standard C22.2 No. 248.14
• UPC: 782001705022
• GTIN: 00782001705022
• Item Type: Midget Fuses
• Size: 1.5 x 0.41
• Voltage Rating: 250 VAC
• Body Style: Cylindrical
• Response Time: 35 sec
• Terminal Type: Ferrule
• Class: Midget
• Body Size: 13/32 in Dia x 1-1/2 in L
• Material: Paper
• Series: OTM
• Standard & Approvals: UL File No. E33925, C22.2 No. 248.14, RoHS Compliant
• Features & Benefits: Low cost and fully rated for economy without compromise Tin-plated Copper contact Can be used with UltraSafe™ fuse holders
• Speed: Fast Acting
• Length: 1.5"
• Weight: 0.012 lb
• Diameter: 0.41"
• Fuse Amps: 2A
• Fuse Size: 1-1/2" x 13/32"
• Fuse Speed: Fast Acting
• Fuse Voltage Rating: 250V
• Connection Material: Tin-Plated Copper
• Rated voltage AC UL: 250 V
• Frequency (Hz): 50/60 Hz
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Midget
• Speed/Characteristic: Fast-Acting
• AC Max I.R./Breaking Capacity: I1: 10 kA
• Alternate Mfr Part Number: Y217256
• Current Rating: 2 A
• Dimensions: 0.41 in H X 1.50 in L
