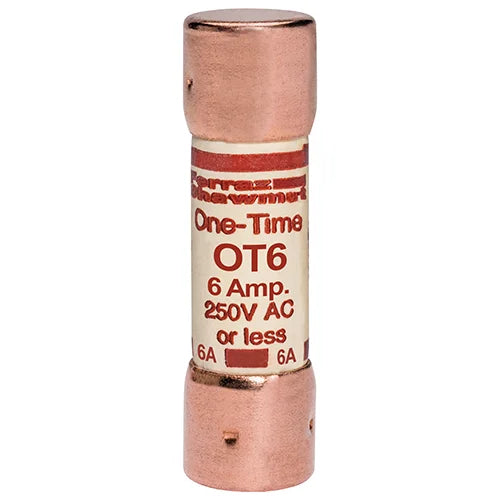

Mersen OT6 OT Series Fuse 6 A

Product Description

The MERSEN OT6 is a one-time OT series fuse that provides low-cost protection for feeder and branch circuits serving lighting, heating, and other non-motor loads. These fast-acting fuses safely interrupt short-circuit currents up to 50 kA in all ratings. They are suitable for residential and small commercial installations.

• Easy to read imprint label for quick recognition and replacement
• Low cost for high protection value
• Versatile

Product Highlights

The MERSEN OT6 fuse offers reliable, low-cost protection for various applications, featuring a fast-acting design and a 50 kA interrupt rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: OT6
• Country of Origin: Mexico

Technical Specifications

• Class: K5
• Series: OT Series
• Material: Paper
• Body Size: 9/16 in Dia x 2 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC/VDC
• Amperage Rating: 6 A
• Interrupt Rating: 50/20 kA
• Country of Origin: MX
• Rejection/Non-Rejection: Non-Rejection
• Sub Brand: Amp-Trap
• Application: Feeders Branch circuits Resistive heating Residential and small commercial installations
• Standard: UL Listed to Standard 248-9 File E2137 CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design use OTN 15-60.) Self-certified for DC per UL248
• Type: Fast Acting
• Body Style: Cylindrical
• UNSPSC: 39121606
• Vendor SKU: OT6
• Manufacturer: Mersen
• Connection: Ferrule
• Fuse Amps [Specifications]: 6A
• Fuse Size [Specifications]: 2 in L x 0.56 in D
• Body Material [Specifications]: Paper
• AC Voltage Rating [Specifications]: 250V
• DC Voltage Rating [Specifications]: 250V DC
• Connection Material [Specifications]: Copper
• Fuse Voltage Rating [Specifications]: 250V
• Part Number: OT6
• Family: OT Series
• Volt: 250
• Category: Fuses
• AIC Ratings: 50kA@250V
• Brand: Mersen/Ferraz Shawmut
• Voltage: 250 Volts
• Current Rating: 6 Amps
• Response Time: Fast Blow
• Applications: Electrical, Industrial
• Breaking Capacity @ Rated Voltage: 50kA AC, 20kA DC
• Package / Case: Cartridge, Non-Standard
• Size / Dimension: 0.551" Dia x 2.008" L (14.00mm x 51.00mm)
