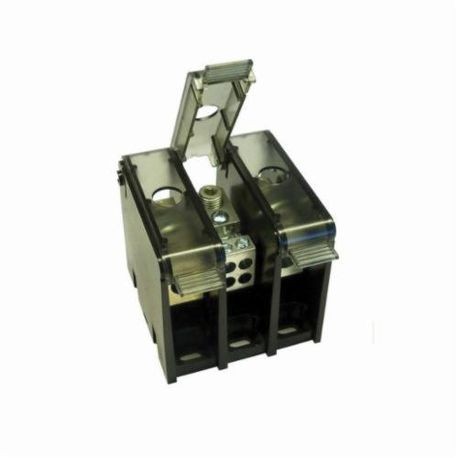

Mersen MPDB69353 Power Distribution Block 600V-1000V 620A-760A 3-Pole Large Tin-Plated Aluminum

Product Description

The Mersen MPDB69353 Power Distribution Block is engineered for superior performance in power distribution applications. Crafted from tin-plated aluminum, this block facilitates efficient splicing of cables and splitting of primary power into multiple secondary circuits.

• UL and CSA approved, meeting stringent safety standards.
• Features adder poles for flexible configurations without the use of tools.
• Design includes a see-through, hinged safety cover for enhanced protection.

Product Highlights

This power distribution block supports high current applications with ratings of up to 760A and voltage up to 1000V. It's ideal for industrial settings where reliable power distribution is necessary.

Product Information

Standard Information

• Brand: Mersen
• Connection Type: Box to Box

Technical Specifications

• Material: Tin-plated Aluminum
• Mounting: Screw
• Voltage Rating: 1000V
• Amperage Rating: 760A
• Number of Poles: 3
• Dimensions: 7.89 in W x 5.7 in D x 3.55 in H
• Country of Origin: Mexico
