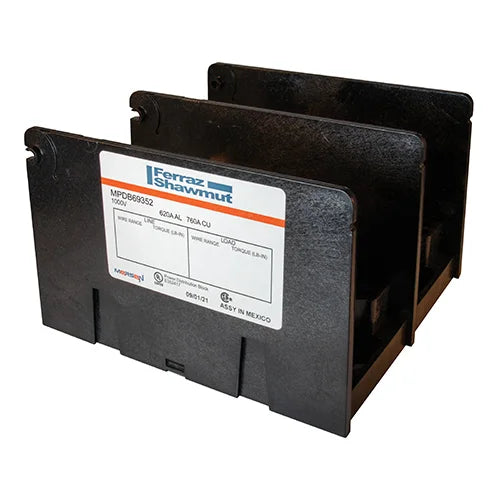

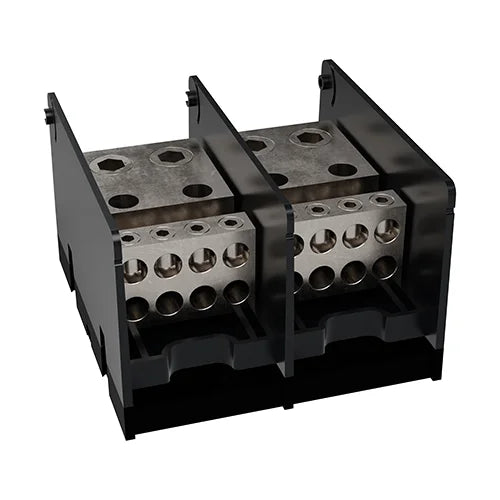

Mersen MPDB69352 MPDB Series Open-Style Power Distribution Blocks

Product Description

The MERSEN MPDB69352 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points and meets spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap -off points
• UL and CSA approved
• Meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code

Product Highlights

Power distribution blocks provide a safe and easy method of splicing cables and splitting primary power into secondary circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB69352
• Country of Origin: United States

Technical Specifications

• Item number: MPDB69352
• Description: Open-Style PDB UL 1953 1000V 620A Tin-plated Aluminum - 760A 2-Pole 2 - 8 openings; 500-#4 --- 2/0-#14 Box to Box
• EAN/UPC Code: 782001455651
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 620 A
• Ampere Rating (CU): 760 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Standalone): 10 kA
• Number of Poles: 2
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 2
• Number of Openings per Pole (Secondary): 8
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 13/16-16 x 1.06
• Hex/Screw Size & Type (Secondary): 7/16-20 x .55
• Hole Diameter (Primary): 0.88 in
• Hole Diameter (Secondary): 0.44 in
• Torque Rating (Primary): 500-#4 500
• Torque Rating (Secondary): 2/0-#6 120; #8-#14 50
• Wire Range (Primary): 500-#4
• Wire Range (Secondary): 2/0-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 5.31 in
• Product Length: 5.7 in
• Product Height: 3.55 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Series: MPDB
• Family Series: Mersen Power Distribution Blocks, MPDB Series
• AC Voltage: 600 VAC
• Current Rating: 760 A
• Number of Inputs per Pole: 2
• Number of Outputs per Pole: 8
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 500 kcmil-4 AWG
• Output Wire Range: 2/0-14 AWG
• Cover Included: No
• Composition: Glass-Fill Polycarbonate
• Color: Black
• Approvals: CSA, UL
• Category: Connectors, Interconnects
• Terminal Blocks: Power Distribution
• Load Side Connections Per Pole: 8
• Manufacturer Part Number: MPDB69352
• Line Side Connection Type: Screw Connection
• Load Side Connection Type: Screw Connection
• Packaging: Bulk
• Line Side Wire/Stud Size: 500MCM (kcmil) - #4CU/AL
• Part Status: Active
• Load Side Wire/Stud Size: 2/0 - #14CU/AL
• Type: Power Distribution Block
• Voltage - Rated: 1000 V
• Current Rating (Amps): 760 A
• Line Side Connections Per Pole: 2
