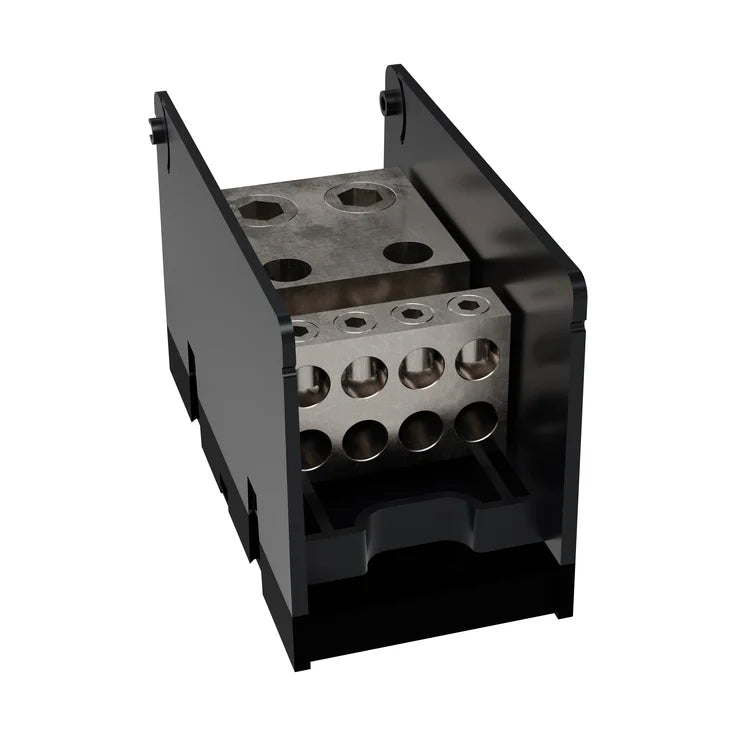

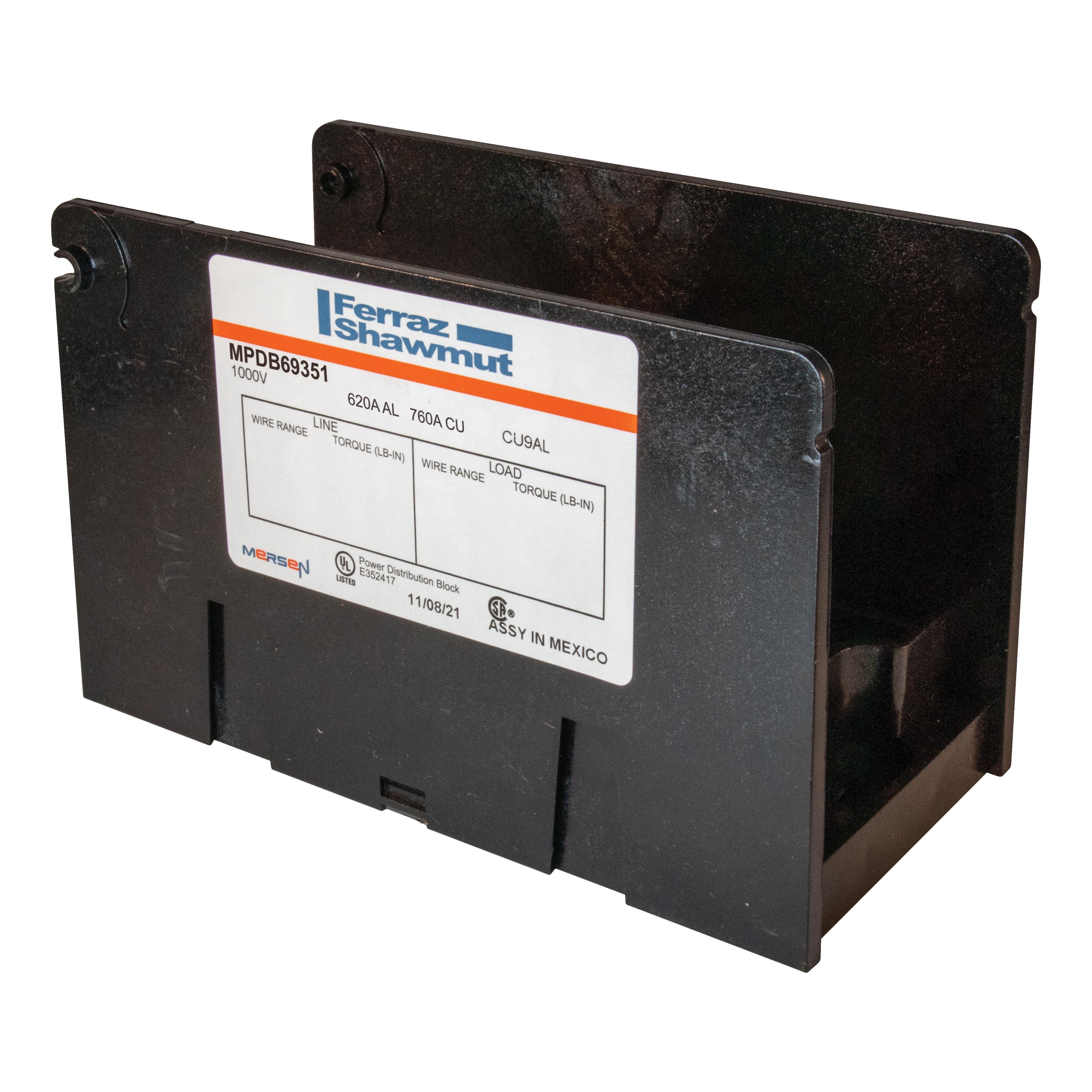

Mersen MPDB69351 Power Distribution Block 760A

Brand: MERSEN
SKU: MPDB69351
Availability: Out Of Stock
$408.65
$408.65
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN MPDB69351 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. It is UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code.

  • Safe and easy method of splicing cables
  • Splits primary power into secondary circuits
  • UL and CSA approved

Product Highlights

The MPDB69351 power distribution block is ideal for cable splicing, splitting primary power into secondary circuits, and fixed junction tap-off points.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: MPDB69351
  • Country of Origin: MX
Technical Specifications
Item number
MPDB69351
Description
Open-Style PDB UL 1953 1000V 620A Tin-plated Aluminum - 760A 1-Pole 2 - 8 openings; 500-#4 --- 2/0-#14 Box to Box
EAN/UPC Code
782001455644
Rated voltage AC UL
1000 V
Rated voltage DC UL
1000 V
Frequency (Hz)
50/60 Hz
Ampere Rating (AL)
620 A
Ampere Rating (CU)
760 A
ROHS Compliant
Yes
AC or DC
AC/DC
Short Circuit Rating (Standalone)
10 kA
Number of Poles
1-Pole
Connector Material
Tin-plated Aluminum
Number of Openings per Pole (Primary)
2
Number of Openings per Pole (Secondary)
8
Connector Type (Primary)
Box
Connector Type (Secondary)
Box
Hex/Screw Size & Type (Primary)
13/16-16 x 1.06
Hex/Screw Size & Type (Secondary)
7/16-20 x .55
Hole Diameter (Primary)
0.88 in
Hole Diameter (Secondary)
0.44 in
Torque Rating (Primary)
500-#4 500
Torque Rating (Secondary)
2/0-#6 120; #8-#14 50
Wire Range (Primary)
500-#4
Wire Range (Secondary)
2/0-#14
Installation Mounting
Direct Screw Mount
Product Width
69.3 mm
Product Length
144.8 mm
Product Height
90.2 mm
Product group
Power Distribution Blocks
Body/Insulating Material
Glass Filled Polycarbonate
Product Weight
0.8618 kg
Brand
Mersen
Manufacturer Part Number
MPDB69351
Amperage Rating
760 A
Series
MPDB
Short Circuit Current Rating (kA)
100 kA
Type
Large Open Style
Wire Size
4 AWG to 500 kcmil
Material
Polycarbonate
Manufacturer Name
MERSEN
UNSPSC
39121410
