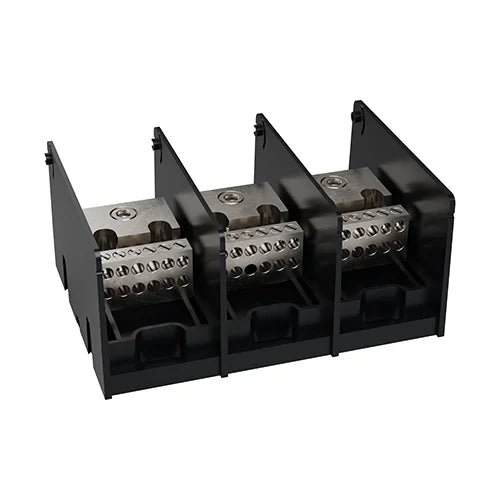

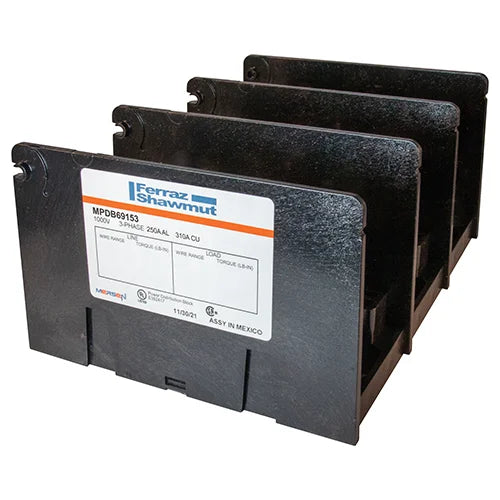

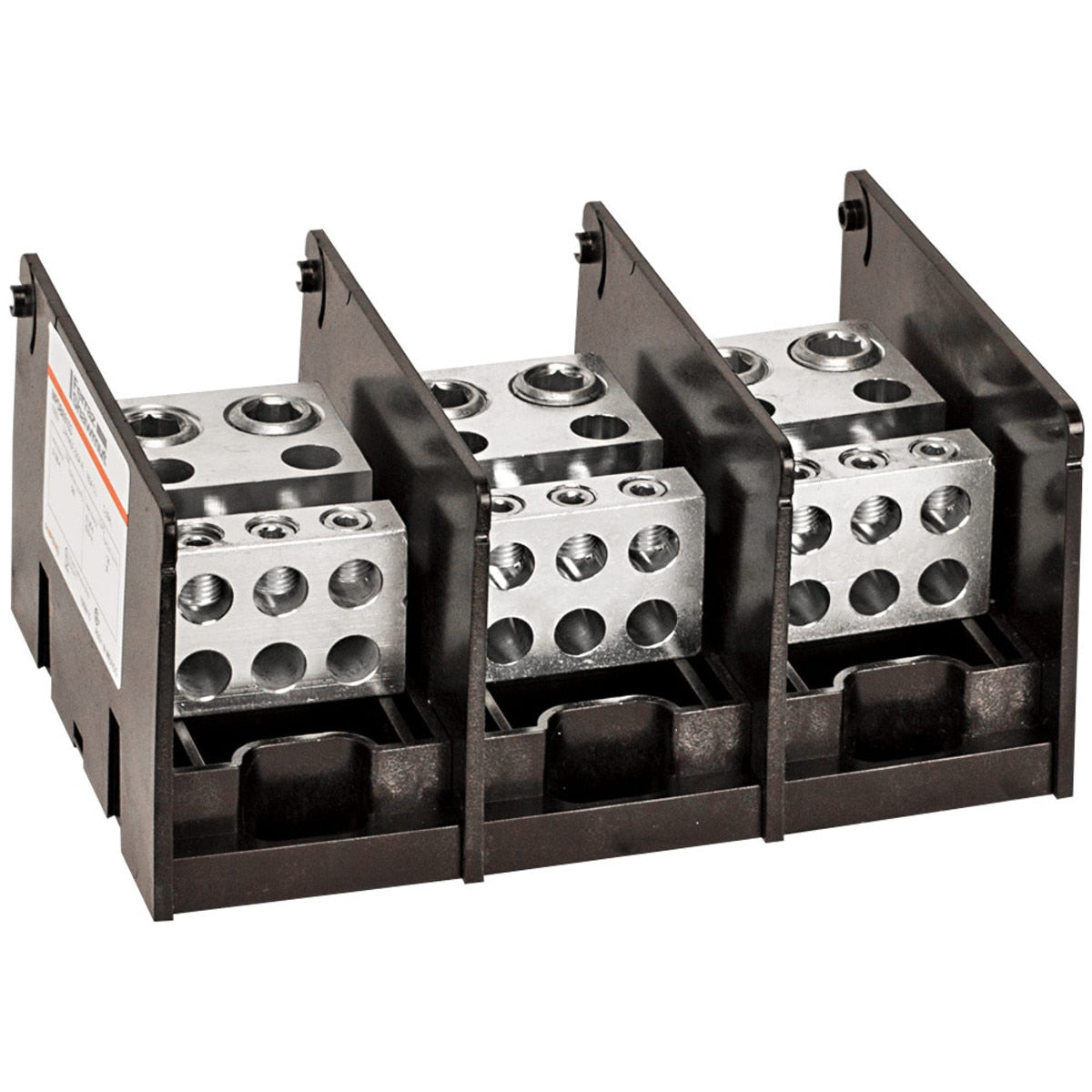

Mersen MPDB69153 mpdb series power distribution block 310A

Brand: Mersen
SKU: MPDB69153
Availability: In Stock

Ships same day if ordered by 12 pm
$246.02
$246.02
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Mersen MPDB69153 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. This large, open-style block is UL and CSA approved, meeting spacing requirements for feeder and branch circuits. It is rated for 600 VAC and 310 A with 3 poles.

  • Adder poles can be stacked to form multi-pole units without tools.
  • Aluminum connectors accept both aluminum or copper wire.
  • Insulators are made of virtually unbreakable, glass-filled polycarbonate.

Product Highlights

This power distribution block features tin-plated aluminum contacts and optional polycarbonate safety covers for dead-front protection.

Product Information

Standard Information

  • Brand: Mersen
  • Manufacturer Part Number: MPDB69153
  • Country of Origin: Mexico
Technical Specifications
Series
MPDB
Voltage Rating
600 VAC
Amperage Rating
310 A
Number of Poles
3
Wire Size
6 AWG to 350 kcmil, 14 to 4 AWG
Short Circuit Current Rating
100 kA
Material
Polycarbonate
Finish
TiN Coated
Color
Black
Primary Connections/Pole
1
Secondary Connection/Pole
12
Application
Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points.
Mounting
Screw
Standard
UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01
Item Type
Open-Style Power Distribution Blocks
Depth
3.55 in
Width
7.89 in
Length
5.7 in
Features
Flammability Rating 94 V-0; GFPC Insulators; 1 inch through air and 2 inches over surface spacing available
Includes
Polycarbonate Safety Covers
Max. Amps
310 A
Standards
CSA Class 6228-01, UL 1953
Overall Depth
3.55 in
Overall Width
7.89 in
Overall Length
5.7 in
RoHS Compliant
Yes
Maximum Voltage
1,000 V AC/DC
Housing Material
GFPC
Terminal Material
Aluminum
Number of Circuits
3
Primary Wire Range
6 AWG to 350 kcmil
Load Side Wire Range
14 AWG - 4 AWG
Max. Operating Temp.
80°C
Secondary Wire Range
14 to 4 AWG
Line Connections/Pole
1.0
Load Connections/Pole
12.0
For Conductor Material
Aluminum
Primary Wire Range (AWG)
6 AWG to 350 MCM
Line Side Connection Type
Lug
Line Side Wire Size Range
6 AWG - 350 kcmil
Load Side Connection Type
Lug
Secondary Wire Range (AWG)
14 to 4 AWG
Power Distribution Block Design
Open
Maximum Current - Copper Conductor
310 A
For Line Copper Wire Size - Maximum
350 kcmil
For Line Copper Wire Size - Minimum
6 AWG
For Load Copper Wire Size - Maximum
4 AWG
For Load Copper Wire Size - Minimum
14 AWG
Maximum Current - Aluminum Conductor
310 A
For Line Aluminum Wire Size - Maximum
350 kcmil
For Line Aluminum Wire Size - Minimum
6 AWG
For Load Aluminum Wire Size - Maximum
4 AWG
For Load Aluminum Wire Size - Minimum
14 AWG
Rated voltage AC UL
1000 V
Rated voltage DC UL
1000 V
Frequency (Hz)
50/60 Hz
Ampere Rating (AL)
250 A
Ampere Rating (CU)
310 A
AC or DC
AC/DC
Short Circuit Rating (Class CC)
100 kA with 30A Fuse
Short Circuit Rating (Class G)
100 kA with 60A Fuse
Short Circuit Rating (Class J)
100 kA with 400A Fuse
Short Circuit Rating (Class L)
100 kA with 400A Fuse
Short Circuit Rating (Class RK1)
100 kA with 200A Fuse
Short Circuit Rating (Class RK5)
100 kA with 100A Fuse
Short Circuit Rating (Standalone)
10 kA
Short Circuit Rating (Class T)
100 kA with 400A Fuse
Number of Openings per Pole (Primary)
1
Number of Openings per Pole (Secondary)
12
Connector Type (Primary)
Box
Connector Type (Secondary)
Box
Hex/Screw Size & Type (Primary)
11/16-16 x .88
Hex/Screw Size & Type (Secondary)
5/16-24 x .38
Hole Diameter (Primary)
0.75 in
Hole Diameter (Secondary)
0.27 in
Torque Rating (Primary)
350-#6 275
Torque Rating (Secondary)
#4-#8 40; #10-#14 35
Wire Range (Primary)
350-#6
Wire Range (Secondary)
#4-#14
Installation Mounting
Direct Screw Mount
Body/Insulating Material
Glass Filled Polycarbonate
