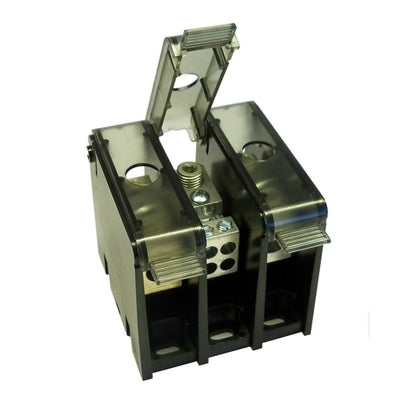

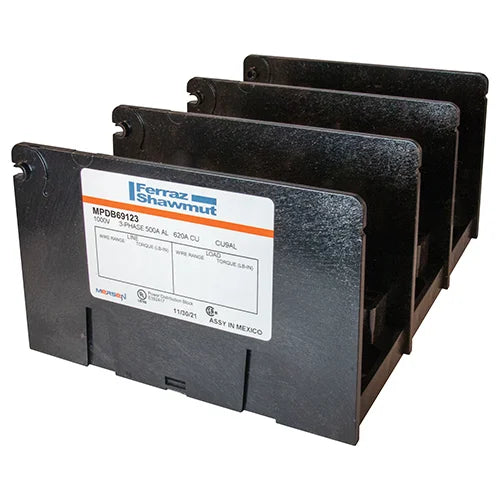

Mersen MPDB69123 power distribution block 620/500A

Product Description

The Mersen MPDB69123 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. This open-style PDB is UL and CSA approved and meets spacing requirements for feeder and branch circuits. It has a rated voltage of 1000V AC/DC and an amperage rating of 620A (CU) / 500A (AL).

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points

Product Highlights

This power distribution block is ideal for splicing cables and splitting primary power into secondary circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB69123

Technical Specifications

• Item number: MPDB69123
• Description: Open-Style PDB UL 1953 1000V 500A Tin-plated Aluminum - 620A 3-Pole 2 - 2 openings; 350-#6 --- 350-#6 Box to Box
• EAN/UPC Code: 782001449506
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 500 A
• Ampere Rating (CU): 620 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 600A Fuse
• Short Circuit Rating (Class L): 100 kA with 800A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 600A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 600A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 800A Fuse
• Number of Poles: 3
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 2
• Number of Openings per Pole (Secondary): 2
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 11/16-16 x .88
• Hex/Screw Size & Type (Secondary): 11/16-16 x .88
• Hole Diameter (Primary): 0.75 in
• Hole Diameter (Secondary): 0.75 in
• Torque Rating (Primary): 350-#6 275
• Torque Rating (Secondary): 350-#6 275
• Wire Range (Primary): 350-#6
• Wire Range (Secondary): 350-#6
• Installation Mounting: Direct Screw Mount
• Product Width: 7.89 in
• Product Length: 5.7 in
• Product Height: 3.55 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 5.4 lb
• Current Rating: 620/500 A
• Manufacturer Part Number: MPDB69123
• Mounting Type: Screw
• Voltage Rating: 1000 V
• Series: MPDB Series
• Input Voltage: 1kV
• Allowable Gauge Range: 6 - 350
