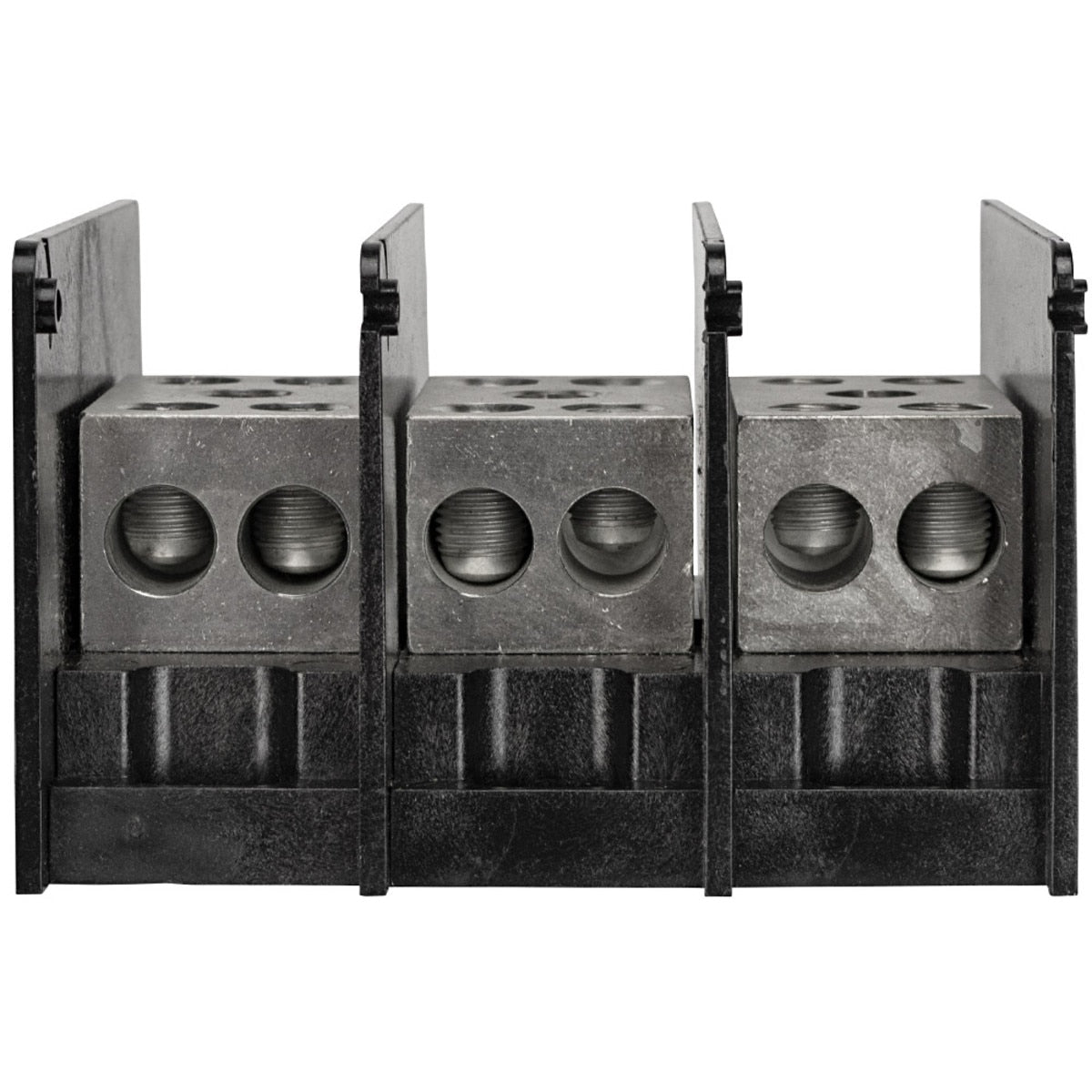

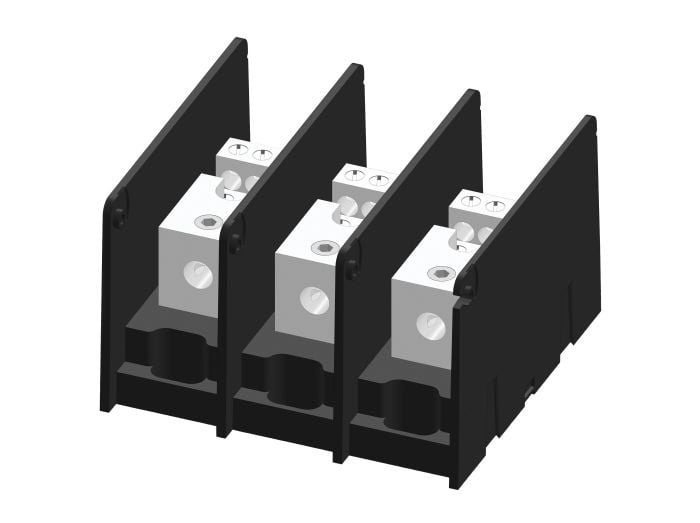

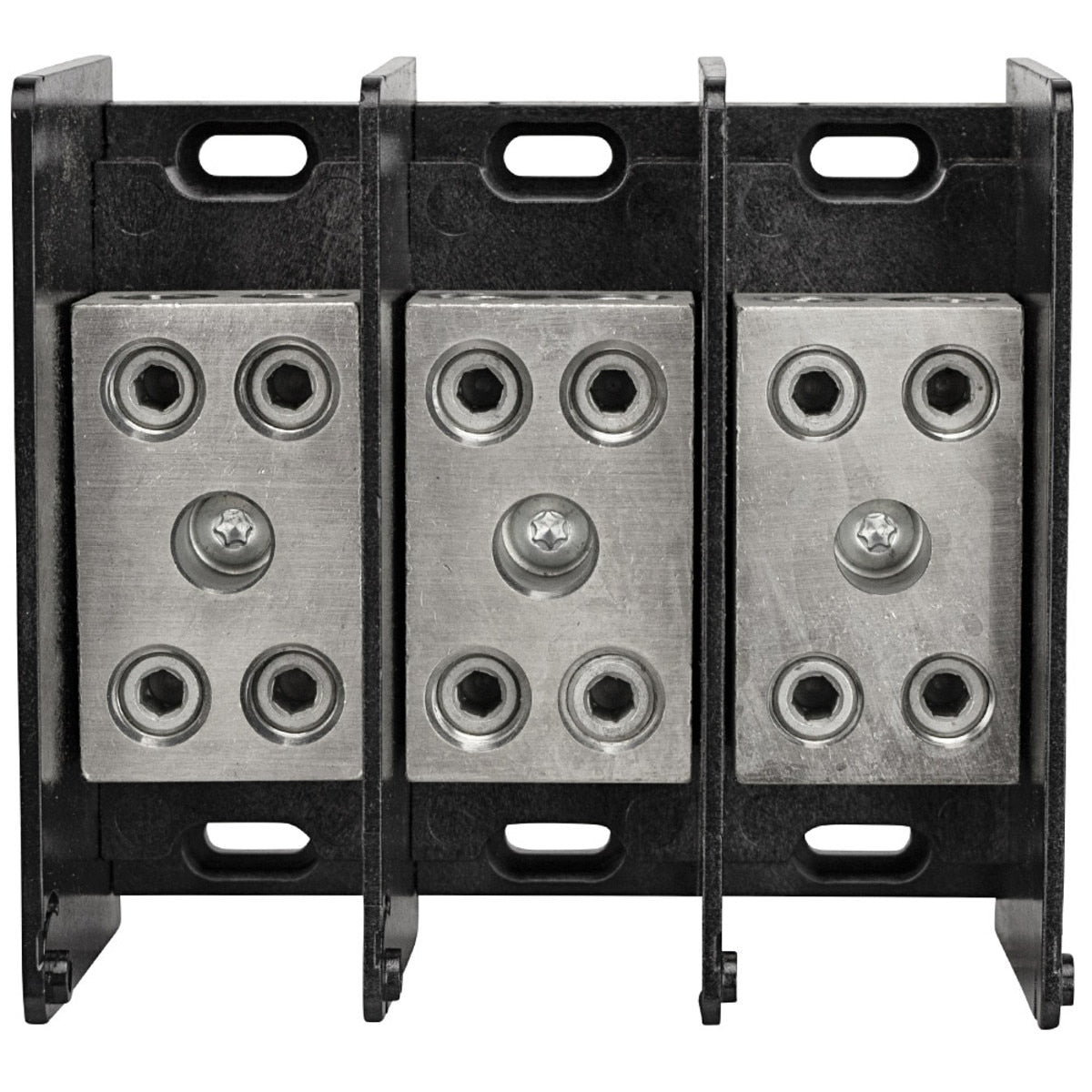

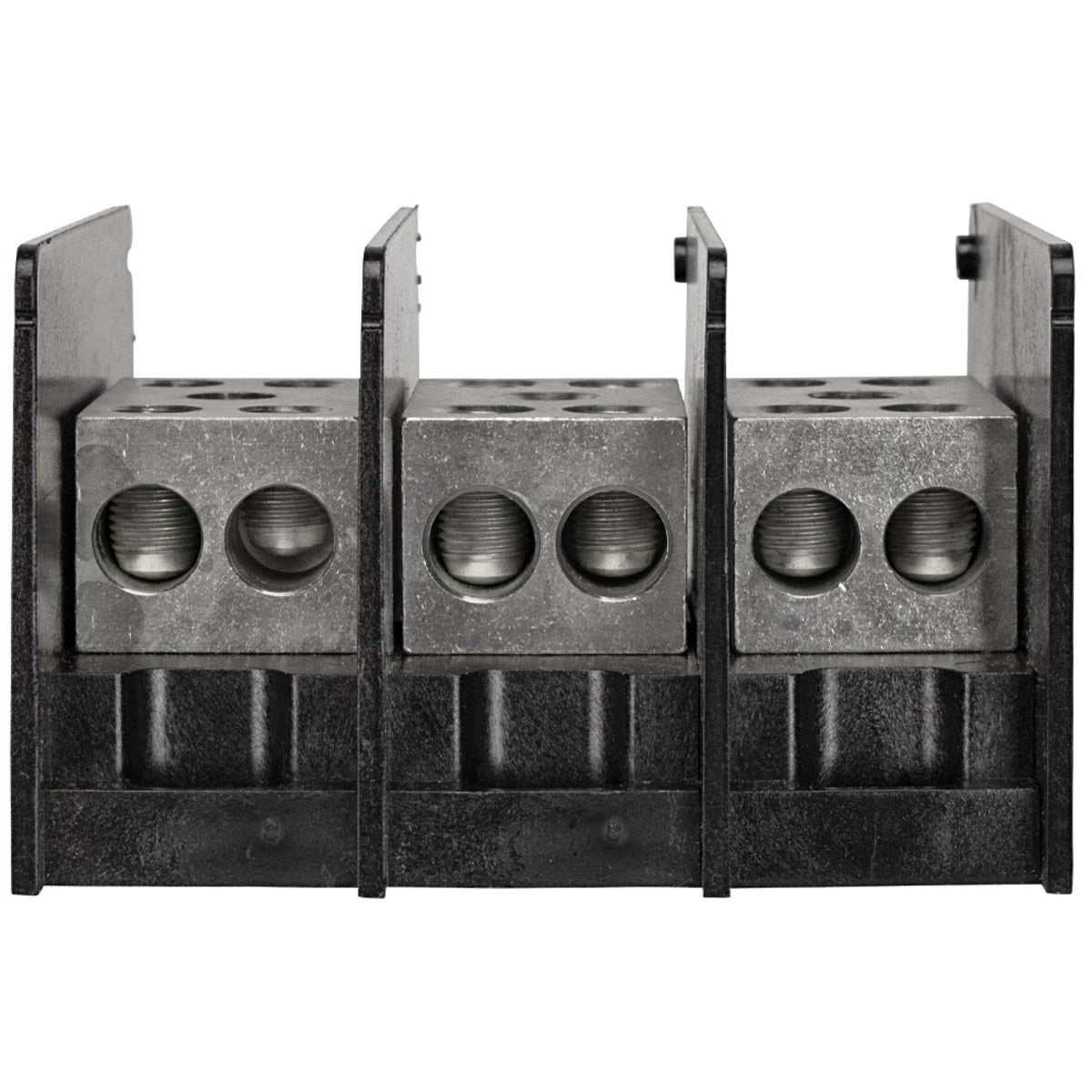

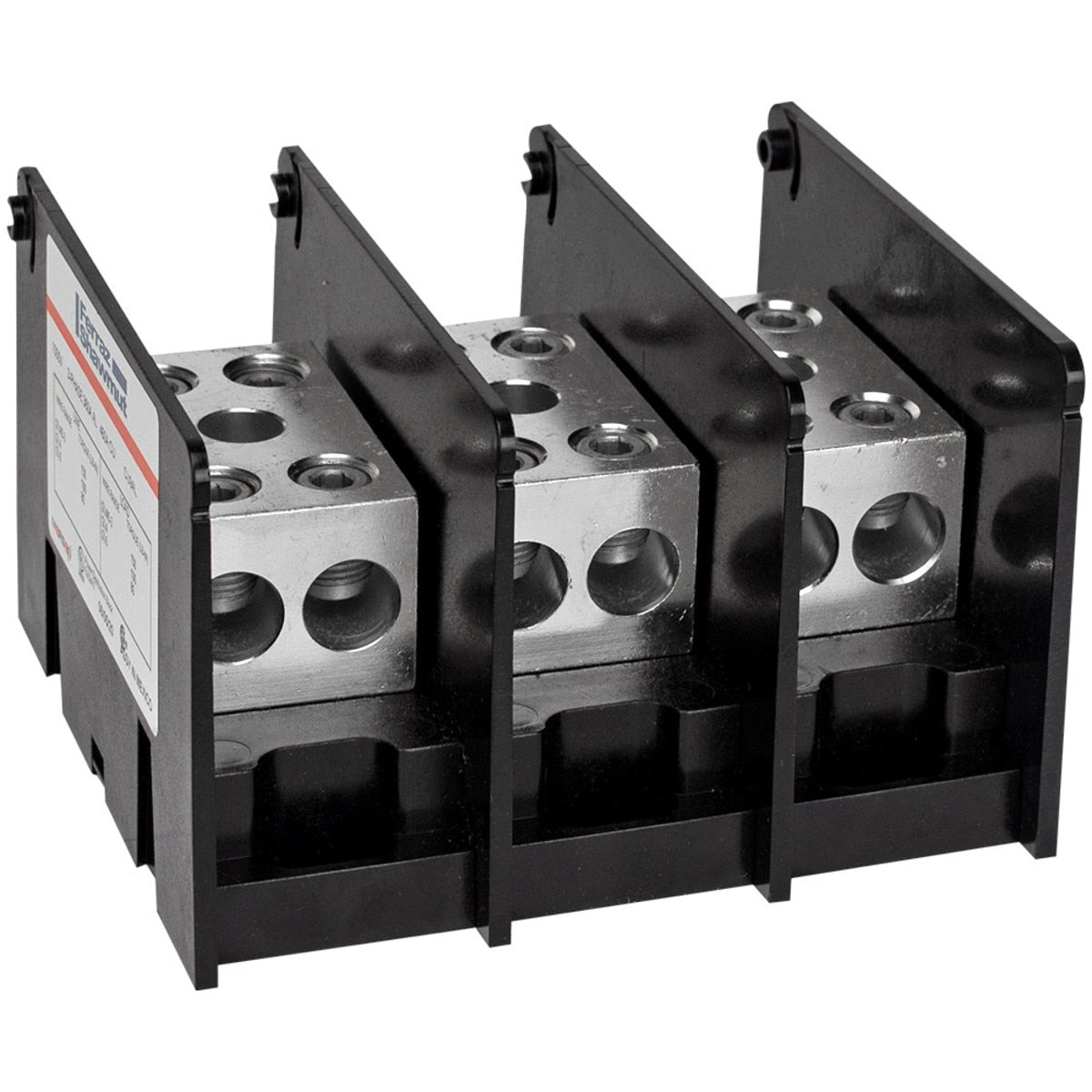

Mersen MPDB67523 Power Distribution Block, Al, Int, 360A, 3P 2

Product Description

The MERSEN MPDB67523 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It meets requirements for fixed junction tap-off points. The block features optional adder poles for increased flexibility and ease of use.

• All sizes have optional adder poles for increased flexibility and ease-of-use.
• Adder poles allow for customization of primary and secondary wire combinations.
• RoHS Compliant

Product Highlights

This Mersen power distribution block is UL and CSA approved, meeting spacing requirements for feeder and branch circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB67523
• Country of Origin: Mexico

Technical Specifications

• Voltage: 1000 V
• Body Material: GFPC
• Connector Type: Standard aluminum and copper wire
• Mounting Style: Direct Screw Mount
• Voltage Rating: 1000 V
• Number of Poles: 3
• Max. Operating Temp.: 80 deg C
• Brand: Mersen
• Manufacturer Part Number: MPDB67523
• Primary Type: Power Distribution Block
• Series: MPDB Series
• AC Voltage: 600 VAC
• Number of Inputs per Pole: 2
• Number of Outputs per Pole: 2
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 4/0-6 AWG
• Output Wire Range: 4/0-10 AWG
• Cover Included: No
• Composition: Glass-Fill Polycarbonate
• Approvals: CSA, UL
• Current Rating: 460 A
