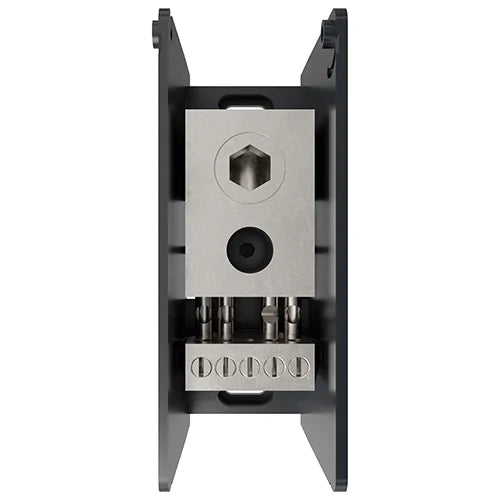

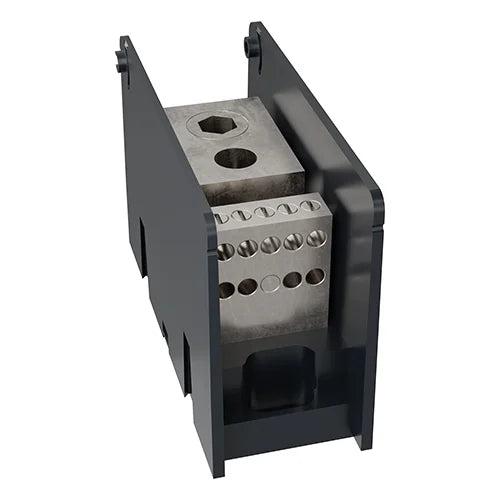

Mersen mpdb67481 Power Distribution Block 10 Openings

Product Description

The MERSEN MPDB67481 power distribution block offers a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. It is UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points

Product Highlights

The MPDB series is offered in three size categories: miniature, intermediate, and large, in both aluminum and copper.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB67481

Technical Specifications

• Item number: MPDB67481
• Description: Open-Style PDB UL 1953 1000V 310A Tin-plated Aluminum - 380A 1-Pole 1 - 10 openings; 500-#4 --- #6-#14 Box to Box
• EAN/UPC Code: 782001453909
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 310 A
• Ampere Rating (CU): 380 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 400A Fuse
• Short Circuit Rating (Class L): 100 kA with 400A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 200A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 100A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 400A Fuse
• Number of Poles: 1
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 1
• Number of Openings per Pole (Secondary): 10
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 13/16-16 x 1.06
• Hex/Screw Size & Type (Secondary): 1/4-28 x .38
• Hole Diameter (Primary): 0.88 in
• Hole Diameter (Secondary): 0.21 in
• Torque Rating (Primary): 500-#4 500
• Torque Rating (Secondary): #6 28; #8 25; #10-#14 20
• Wire Range (Primary): 500-#4
• Wire Range (Secondary): #6-#14
• Installation Mounting: Direct Screw Mount
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Voltage - Rated: 1000 V
• Current Rating (Amps): 380 A
• Line Side Connection Type: Screw Connection
• Load Side Connection Type: Screw Connection
• Line Side Wire/Stud Size: 500MCM (kcmil) - #4CU/AL
• Load Side Wire/Stud Size: 6 - #14CU/AL
• Terminal Block Voltage Rating: 1000 Volt
• Terminal Block Amperage: 380 Amp
