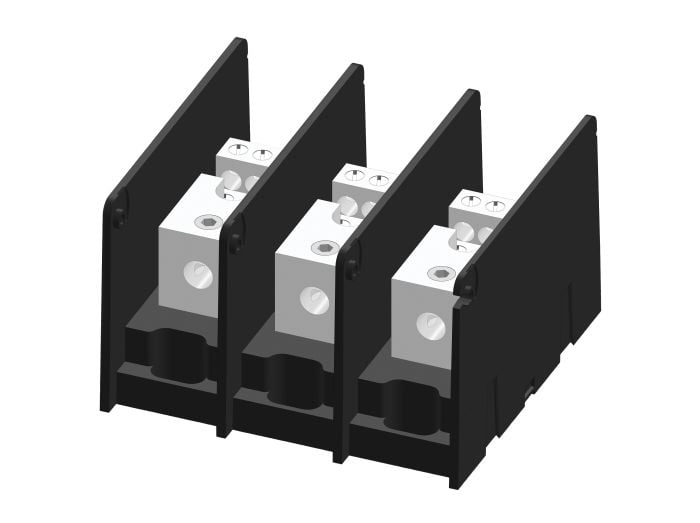

Mersen mpdb67013 power distribution block 310 A

Product Description

The Mersen MPDB67013 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points and meets spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code. It is rated to 600 VAC and 310 A.

• Adder poles can be stacked to form multi-pole units in the field without the use of tools.
• Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated.
• Insulators are virtually unbreakable, made of glass-filled polycarbonate, see-through hinged safety covers are optional and provide a greater deg of safety and shock resistance where required, hinged covers can be installed without tools.

Product Highlights

This power distribution block provides a safe and easy method for splicing cables and splitting primary power. It is UL and CSA approved.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB67013
• Country of Origin: MX

Technical Specifications

• Series: MPDB
• Voltage Rating: 600 VAC
• Amperage Rating: 310 A
• Number of Poles: 3
• Wire Size: 6 AWG to 350 kcmil, 14 to 2/0 AWG
• Short Circuit Current Rating: 100 kA
• Material: Polycarbonate
• Color: Black
• Primary Connections/Pole: 1
• Secondary Connection/Pole: 2
• Manufacturer Part Number: MPDB67013
• Manufacturer: Mersen USA Newburyport-MA L.L.C.
• Product Series: MPDB
• AC Voltage: 600 VAC
• Current Rating: 310 A
• Number of Inputs per Pole: 1
• Number of Outputs per Pole: 2
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 350 kcmil-6 AWG
• Output Wire Range: 2/0-14 AWG
• Cover Included: No
• Composition: Glass-Fill Polycarbonate
• Approvals: CSA, UL
• Brand: Mersen
• Category: Connectors, Interconnects
• Type: Power Distribution Block
• Sub Category: Power Distribution
• Part Status: Active
• Line Side Connections Per Pole: 1
• Load Side Connections Per Pole: 2
• Line Side Connection Type: Screw Connection
• Load Side Connection Type: Screw Connection
• Line Side Wire/Stud Size: 350MCM (kcmil) - #6CU/AL
• Load Side Wire/Stud Size: 2/0 - #14CU/AL
• Current Rating (Amps): 310 A
