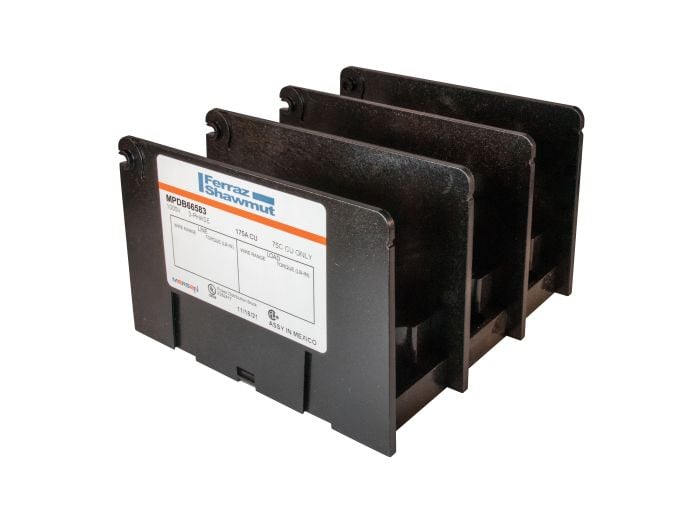

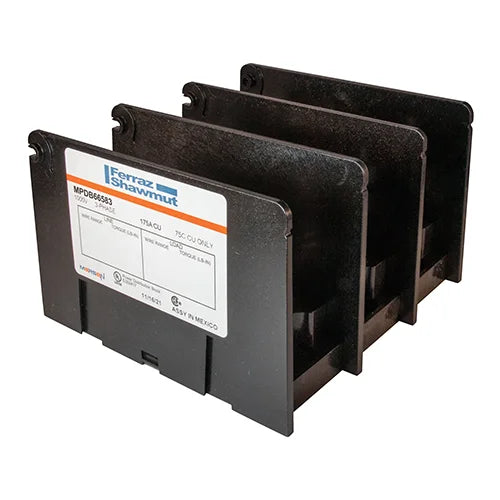

Mersen mpdb66583 Power Distribution Block 175A

Product Description

The MERSEN MPDB66583 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It meets requirements for fixed junction tap-off points and spacing for feeder and branch circuits. It is UL and CSA approved. The MPDB series is offered in miniature, intermediate, and large sizes, in both aluminum and copper.

• Safe and easy method of splicing cables
• Splits primary power into secondary circuits
• Meets requirements for fixed junction tap-off points

Product Highlights

The MERSEN MPDB66583 power distribution block is UL and CSA approved and meets spacing requirements for feeder and branch circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB66583

Technical Specifications

• Item number: MPDB66583
• Description: Open-Style PDB UL 1953 1000V Tin-plated Copper - 175A 3-Pole 1 - 8 openings; 2/0-#14 --- #2-#14 Box to Box
• EAN/UPC Code: 782001451646
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (CU): 175 A
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 200A Fuse
• Short Circuit Rating (Class L): 100 kA with 200A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 100A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 30A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 200A Fuse
• Number of Poles: 3
• Connector Material: Tin-plated Copper
• Number of Openings per Pole (Primary): 1
• Number of Openings per Pole (Secondary): 8
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 3/8-24 x .56
• Hex/Screw Size & Type (Secondary): 5/16-24 x .38
• Hole Diameter (Primary): 0.44 in
• Hole Diameter (Secondary): 0.31 in
• Torque Rating (Primary): 2/0-#3 50; #4-#6 45; #8 40; #10-#14 20
• Torque Rating (Secondary): #2-#3 50; #4-#6 35; #8 25; #10-#14 20
• Wire Range (Primary): 2/0-#14
• Wire Range (Secondary): #2-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 5.28 in
• Product Length: 3.08 in
• Product Height: 3.25 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Alternate Part Number: 66583
• Amps: 175
• Voltage: 600 Volts AC
• Material: Polycarbonate
• Wire Range: (8) #2-14
• UL Listed: guide IZLT, File E52283
• UL Recognized Component: guide IZLT2, file E52283
• CSA Certified: class 6225, File 32169
• Manufacturer Part Number: MPDB66583
• Manufacturer: Mersen
• Product Series: MPDB
• Family Series: Mersen Power Distribution Blocks, MPDB Series
• Number of Inputs per Pole: 1
• Number of Outputs per Pole: 8
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 2/0-14 AWG
• Output Wire Range: 2-14 AWG
• Cover Included: No
• Composition: Glass-Fill Polycarbonate
• Color: Black
• Approvals: CSA, UL
• Primary Type: Power Distribution Block
• Series: MPDB
• Voltage Rating: 600 VAC
• Current Rating (Amps): 175 A
• Line Side Connection Type: Screw Connection
• Load Side Connection Type: Screw Connection
• Line Side Wire/Stud Size: 2/0 - #14CU
• Load Side Wire/Stud Size: 2 - #14CU
• Type: Power Distribution Block
• Voltage - Rated: 1000 V
• Current Rating: 175 A
• Amperage Rating: 175 A
• Finish: Tin Coated
• Primary Connections/Pole: 1
• Secondary Connection/Pole: 8
• Short Circuit Current Rating: 100 kA
• Wire Size: 14 to 2/0 AWG
• Brand: Mersen
