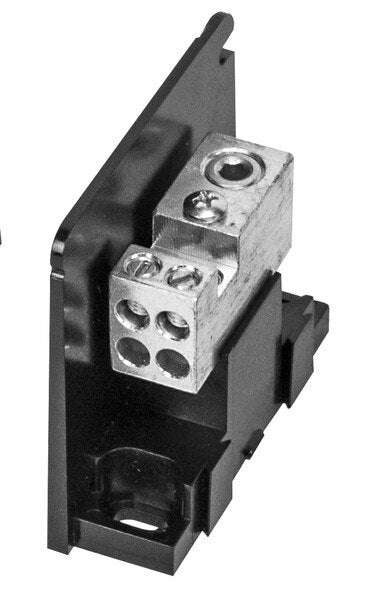

Mersen MPDB63130 Power Distribution Block 175A

Product Description

The MERSEN MPDB63130 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It meets spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code. The block has a tin-plated aluminum connector and is UL and CSA approved.

• Splices cables and splits primary power into secondary circuits.
• Features tin-plated aluminum connectors.
• Meets UL508A and National Electrical Code spacing requirements.

Product Highlights

The MERSEN MPDB63130 power distribution block is ideal for splicing cables, splitting primary power, and creating fixed junction tap-off points.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB63130
• Country of Origin: Mexico

Technical Specifications

• Item number: MPDB63130
• Description: Open-Style PDB UL 1953 1000V 135A Tin-plated Aluminum - 175A Adder 1 - 4 openings; 2/0-#14 --- #4-#14 Box to Box
• EAN/UPC Code: 782001449407
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 135 A
• Ampere Rating (CU): 175 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 30 kA
• Short Circuit Rating (Class G): 60 kA
• Short Circuit Rating (Class J): 200 kA
• Short Circuit Rating (Class L): 200 kA
• Short Circuit Rating (Class RK1): 100 kA
• Short Circuit Rating (Class RK5): 30 kA
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 200 kA
• Number of Poles: Adder
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 1
• Number of Openings per Pole (Secondary): 4
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 7/16-20 x .55
• Hex/Screw Size & Type (Secondary): 1/2-28 x .38
• Hole Diameter (Primary): 0.44 in
• Hole Diameter (Secondary): 0.25 in
• Torque Rating (Primary): 2/0-#6 120; #8-#14 50
• Torque Rating (Secondary): #4-#6 35; #8 25; #10-#14 20
• Wire Range (Primary): 2/0-#14
• Wire Range (Secondary): #4-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 0.93 in
• Product Length: 3.08 in
• Product Height: 2.81 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Stack to form multi-pole units: Field installable
• UNSPSC Code: 39120000
• Brand: Mersen
• Current Rating: 175 A
• Manufacturer Part Number: MPDB63130
• Primary Type: Power Distribution Block
• Series: MPDB Series
• Voltage Rating: 1000 V
• Poles Per Block: Adder
• Country of Origin: Mexico - Subject to change
• Block Type: Power Distribution, Open-style, Miniature
• Openings Per Pole, Primary: 1
• Conductor Size - Primary: 14 to 2/0 AWG
• Openings Per Pole, Secondary: 4
• Conductor Size - Secondary: 14 to 4 AWG
• Conductor Material: Aluminum
• Material - Housing: Glass-filled Polycarbonate
• Material - Connector: Copper, Tin-plated
• Rating - Voltage: 1000V AC/DC
• Rating - Amps: 175A (CU), 135A (AL)
• Optional Cover: MPDBC6263
• Configuration: Box-Box
• Terminal Blocks: Power Distribution
• Load Side Connections Per Pole: 4
• Line Side Connection Type: Screw Connection
• Load Side Connection Type: Screw Connection
• Packaging: Bulk
• Line Side Wire/Stud Size: 2/0 - #14CU/AL
• Part Status: Active
• Load Side Wire/Stud Size: 4 - #14CU/AL
• Type: Power Distribution Block
• Voltage - Rated: 1000 V
• Current Rating (Amps): 175 A
• Line Side Connections Per Pole: 1
• Height: 2.81 in
• Width: 0.93 in
• Length: 3.08 in
• Mounting Hole Dia.: 0.44 in
• Line Side Stud Size: 7/16-20 x .55"
• Load Side Stud Size: 1/2-28 x .38"
• Item: Power Distribution Block
• Maximum Voltage: 1,000 V AC/DC
• Housing Material: Glass-Filled Polycarbonate
• Maximum Operating Temperature: 80 Degrees C
• Mounting Type: Screw
• Connector Type: Box Lug
• Fuse UL Class: UL1953 Open-style
• Amp Range: 135 to 175A
• Wire Range: 14 AWG to 4 AWG, 14 AWG to 2/0 AWG
• Amperage Rating: 175
• Voltage: 1000
