Mersen mpdb62133 mpdb series power distribution block 175A

Product Description

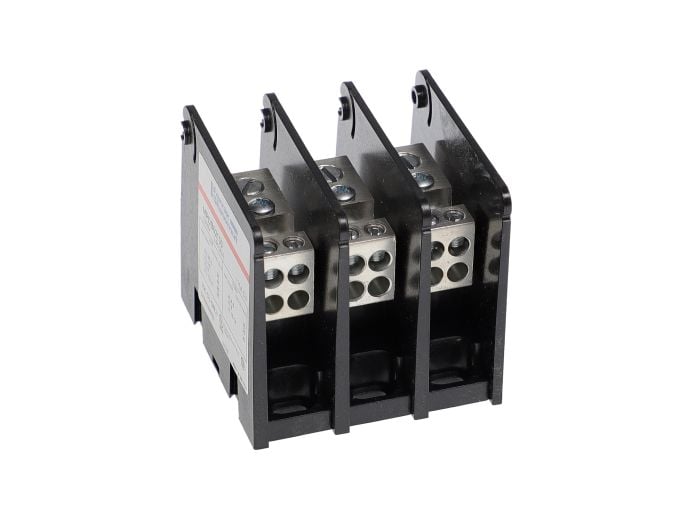

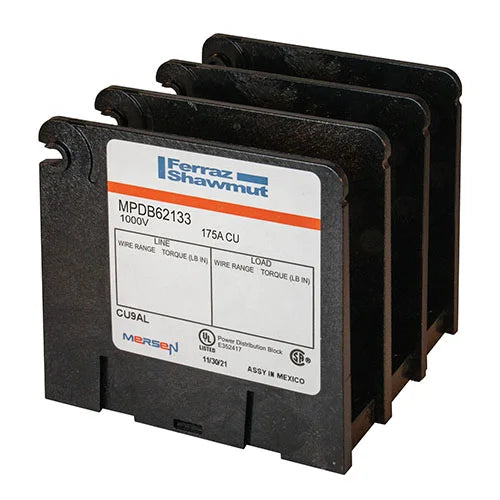

The MERSEN MPDB62133 power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It meets requirements for fixed junction tap-off points. This open-style PDB is UL and CSA approved and meets spacing requirements for feeder and branch circuits. It is suitable for use with UL508A and the National Electrical Code.

• Offers a safe and easy way to splice cables and split primary power into secondary circuits.
• Features insulators made of glass-filled polycarbonate.
• Meets spacing requirements for feeder and branch circuit applications of UL508A.

Product Highlights

The MERSEN MPDB62133 power distribution block is ideal for cable splicing, splitting primary power into secondary circuits, and fixed junction tap-off point applications.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: MPDB62133
• Country of Origin: MX

Technical Specifications

• Item number: MPDB62133
• EAN/UPC Code: 782001450618
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (CU): 175 A
• AC or DC: AC/DC
• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 200A Fuse
• Short Circuit Rating (Class L): 100 kA with 200A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 100A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 30A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 200A Fuse
• Number of Poles: 3
• Connector Material: Tin-plated Copper
• Number of Openings per Pole (Primary): 1
• Number of Openings per Pole (Secondary): 4
• Connector Type (Primary): Box
• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 3/8-24 x .56
• Hex/Screw Size & Type (Secondary): 1/2-28 x .38
• Hole Diameter (Primary): 0.44 in
• Hole Diameter (Secondary): 0.25 in
• Torque Rating (Primary): 2/0-#3 50; #4-#6 45; #8 40; #10-#14 35
• Torque Rating (Secondary): #4-#6 35; #8 25; #10-#14 20
• Wire Range (Primary): 2/0-#14
• Wire Range (Secondary): #4-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 2.91 in
• Product Length: 3.08 in
• Product Height: 2.81 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Amp Rating: 175 Amp
• Phase: See Spec or N/A
• All - Specific Ratings: UL508
• All - Voltage: 1000V AC/DC
• Series: MPDB Series
• Manufacturer: Mersen
• Product Series: MPDB
• Family Series: Mersen Power Distribution Blocks, MPDB Series
• Description: Open-Style PDB UL 1953 1000V Tin-plated Copper - 175A 3-Pole 1 - 4 openings; 2/0-14 --- 4-14 Box to Box
• AC Voltage: 600 VAC
• Current Rating: 175 A
• Number of Inputs per Pole: 1
• Number of Outputs per Pole: 4
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 2/0-14 AWG
• Output Wire Range: 4-14 AWG
• Cover Included: No
• Composition: Glass-Fill Polycarbonate
• Color: Black
• Approvals: CSA, UL
• Net Weight: 0.98 lbs
• Gross Weight: 0.95 lbs
• UNSPSC Code: 39120000
• Voltage Rating: 1000 V
• Part Number #: MPDB62133
• SKU #: 2330412
• Amperage Rating: 175 A
• Finish: TiN Coated
• Short Circuit Current Rating (kA): 100 kA
• Type: Miniature Open Style
• Wire Size: 14 to 2/0 AWG, 14 to 4 AWG
• Country of origin: MX
• Material: Polycarbonate
• Manufacturer Name: MERSEN
• UNSPSC: 39121410
• Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)
• Voltage: 600
• Catalog Number: MPDB62133
• Catalog / Class: POWER DISTRIBUTION BLOCK
• SKU: MPDB62133
