Mersen GDL1/10 Gdl1/10 Fer 0.1 A

Product Description

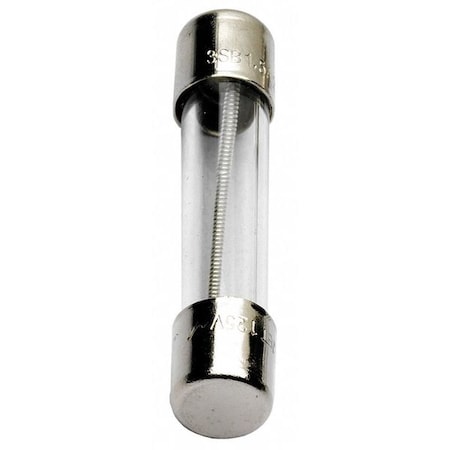

The MERSEN GDL1/10 is a miniature, time-delay, non-indicating, non-rejection fuse. This 0.1 A, 250 VAC fuse features a ferrule terminal and clip mounting. It has a 0.035 kA interrupt rating and a cylindrical glass body. It is suitable for electronic circuits applications.

• Nickel-plated brass contact
• Time-delay glass fuses tolerate temporary inrush currents without opening
• Prevents nuisance-blowing from equipment startups

Product Highlights

The MERSEN GDL1/10 fuse provides overcurrent protection for low-current circuits in appliances, electronics circuit boards, and lighting fixtures.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GDL1/10
• Country of Origin: CN

Technical Specifications

• Series: GDL
• Element: Single
• Material: Glass
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 250 VAC
• Amperage Rating: 0.1 A
• Interrupt Rating: 35A at 250VAC, 10kA at 125VAC
• Rejection / Nonrejection: Non-Rejection
• Indicating / Nonindicating: Non-Indicating
• Fuse Speed: Time Delay
• Body Material: Glass
• Connection Type: Ferrule
• AC Voltage Rating: 250VAC
• DC Voltage Rating: Not Rated
• Equivalent Series: 313, 315, GDL, GDV, MDL, MDQ, MDV, MDX
• Fuse Voltage Rating: 250VAC
• Fits Fuse Block Style: Nonrejection
• Functionally Equal To: Bussmann MDL, MDQ, MDV, MDX, Littelfuse 313, 315, Mersen/Ferraz Shawmut GDV
• Fuse Interrupt Rating: 35A at 250VAC, 10kA at 125VAC
• Length (Straight Wireway): 1 1/4 in
• Equivalent Brand and Series: Bussmann MDL, Bussmann MDQ, Bussmann MDV, Bussmann MDX, Littelfuse 313, Littelfuse 315, Mersen GDL, Mersen GDV
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Overall Length: 1-1/4 in
• Diameter: 1/4"
• UL Approvals: Listed
• CSA Approval: Certified
• Fuse Class: Electronic/Glass
• Rated Voltage AC: 250VAC
• Rated Current: 0.1A
• RoHS Compliant: Yes
• Speed/Characteristic: Time Delay
• Body/Insulating Material: Glass
• Type: Time Delay
• Height (mm): 7mm
• Width (mm): 7mm
• Depth (Length) (mm): 32mm
